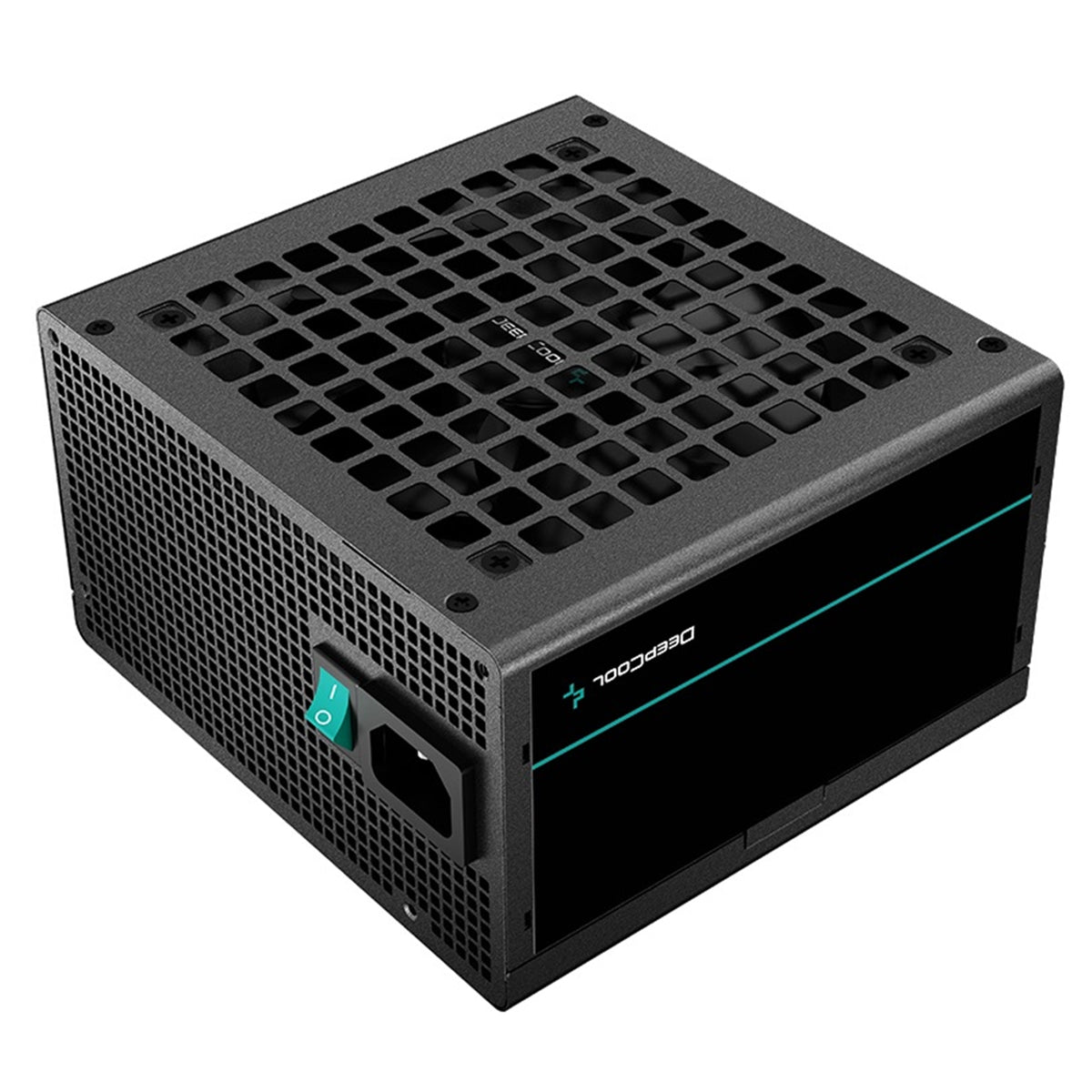

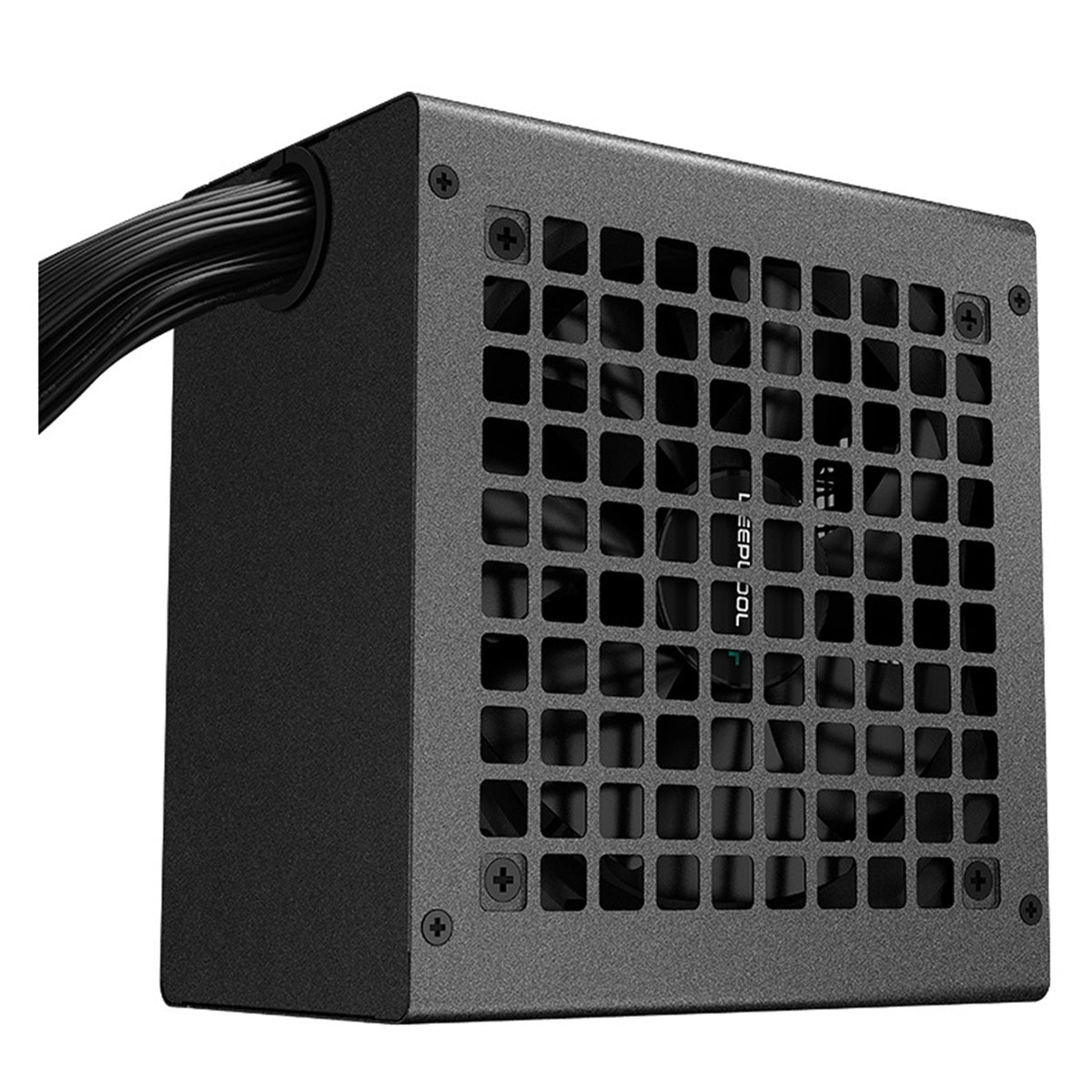

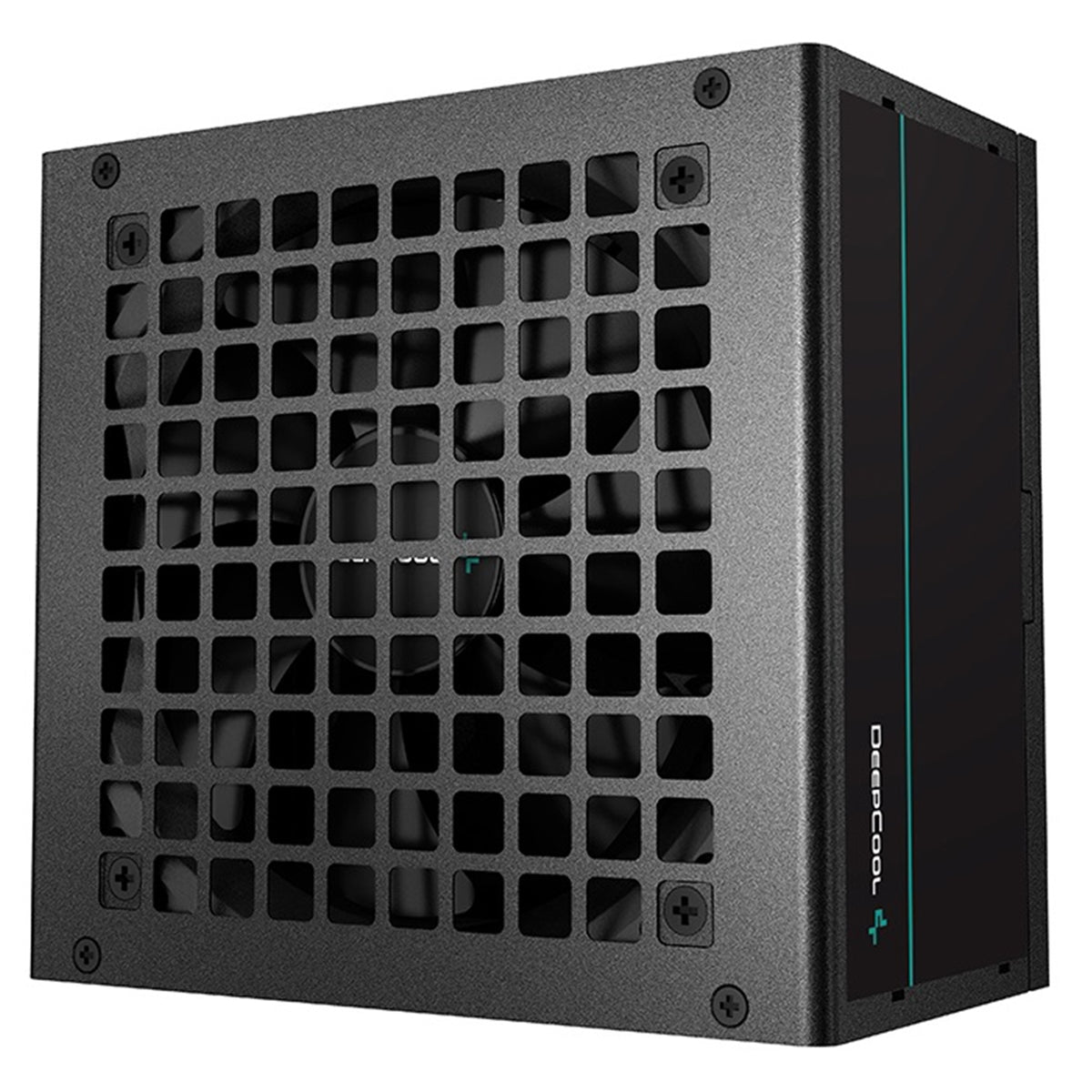

DeepCool 700W Power Supply Unit
The DeepCool 700W Power Supply Unit is a reliable and efficient power solution designed to keep your system running smoothly. With certified efficiency, quiet cooling, and solid protection features, it delivers dependable power for everyday computing.
Key Features
-
700W Reliable Power Output
Provides stable power delivery to support your system’s components. -
80 PLUS Standard Certified Efficiency
Achieves up to 85% efficiency under typical loads, helping to minimize wasted energy and reduce electricity costs. -
Silent Hydraulic Bearing Fan

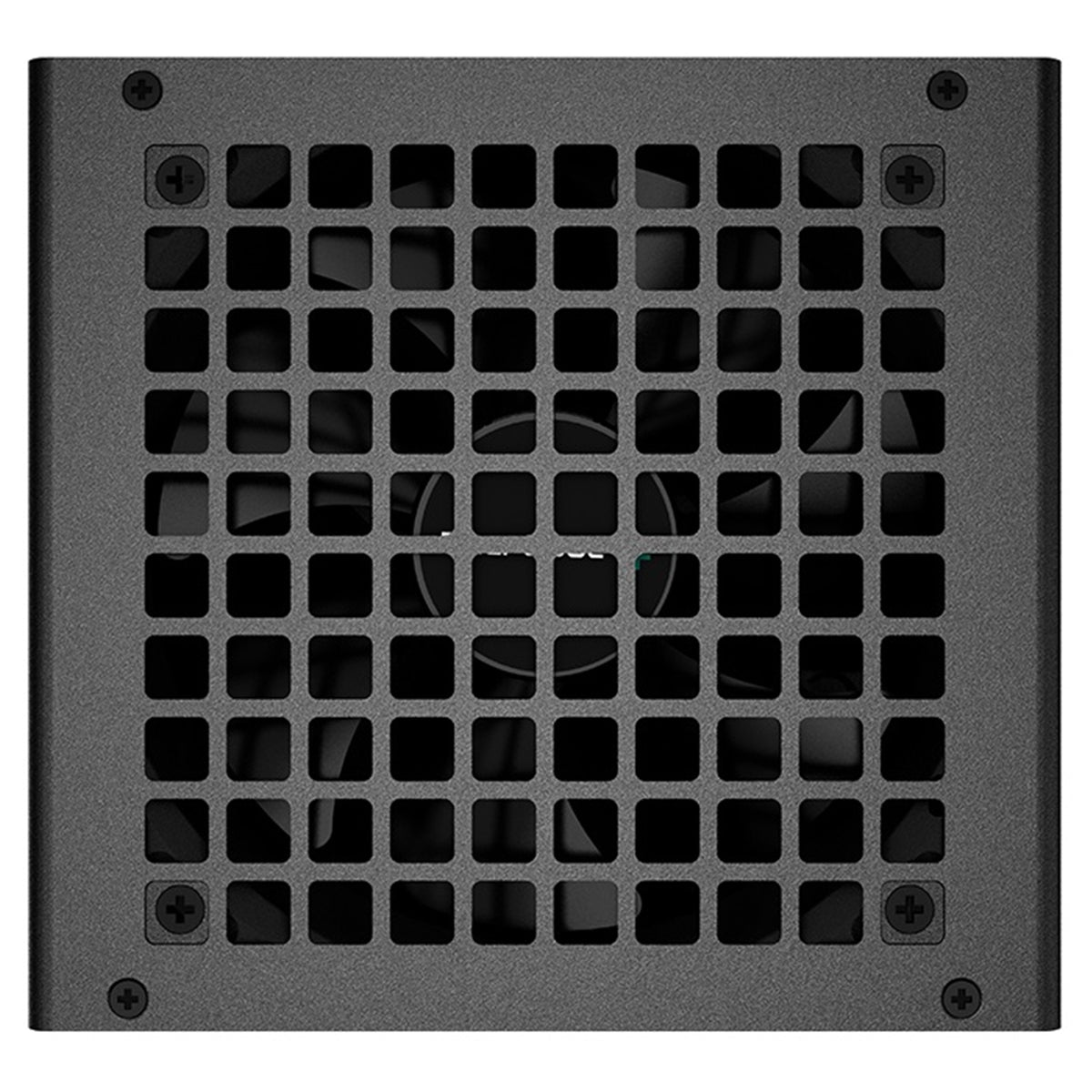

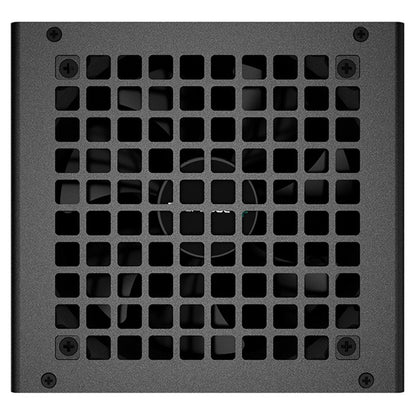

A 120mm hydraulic bearing fan ensures low-noise operation for a quieter PC experience. -
Clean and Easy Cable Management

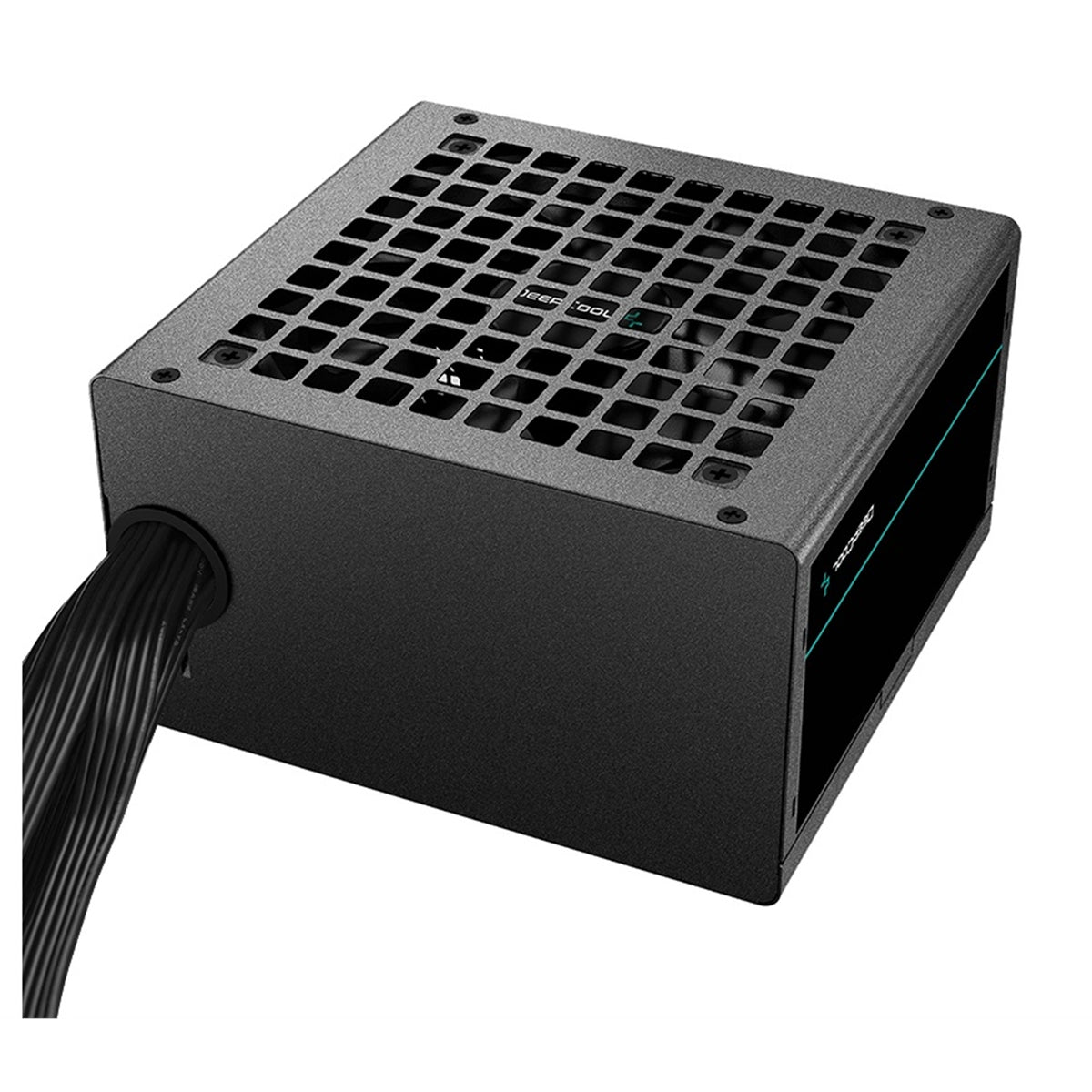

Flat black cables help improve airflow and maintain a neat, organized build. -
Comprehensive Protection
Safeguards your system with: - Over Power Protection (OPP)
- Over Voltage Protection (OVP)
- Short Circuit Protection (SCP)
-
Under Voltage Protection (UVP)
-
Durable and Long-Lasting
Designed for longevity with a 100,000-hour MTBF.

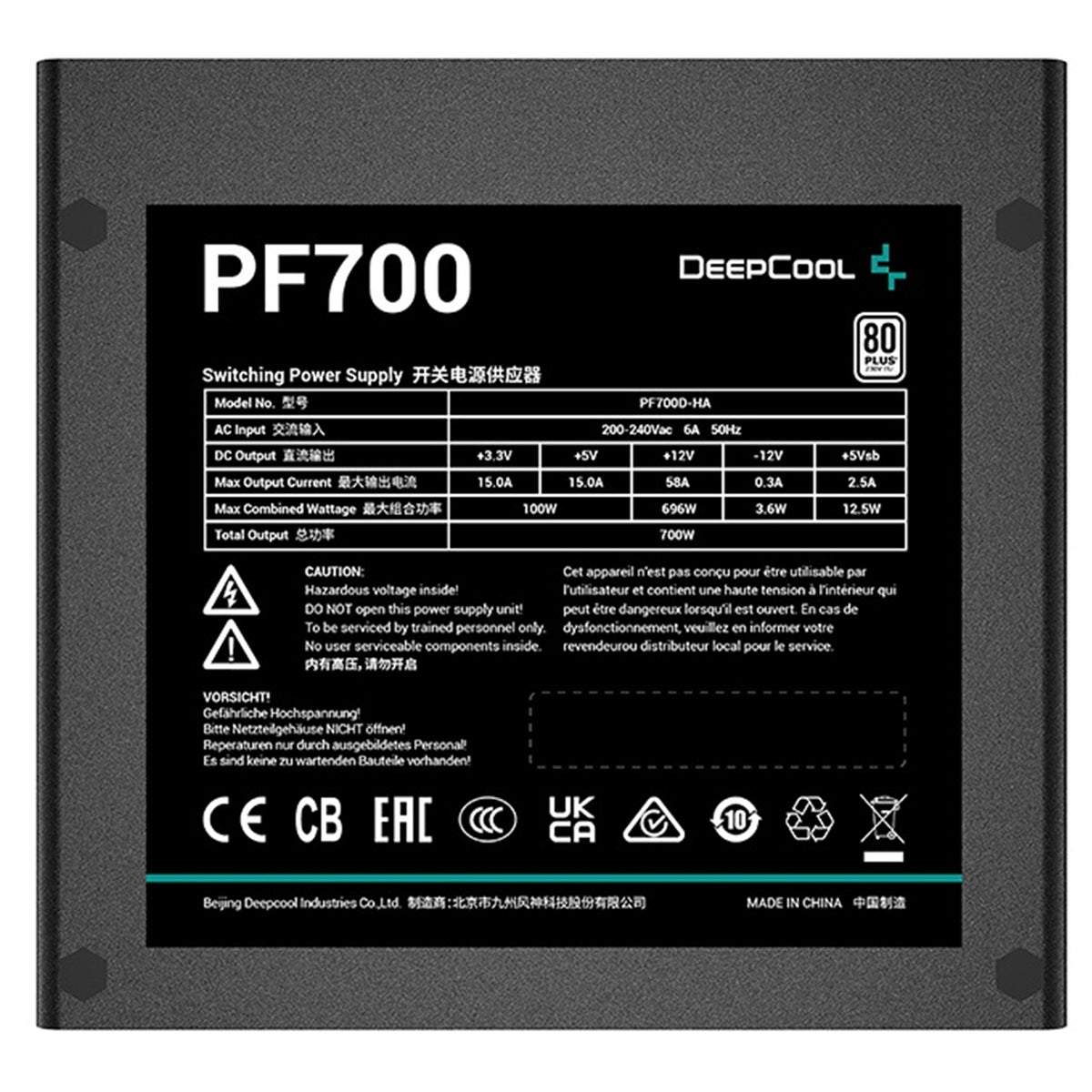

Specifications
| Specification | Details |
|---|---|
| Model | R-PF700D-HA0B-UK |
| Power Output | 700W |
| Efficiency | 80 PLUS Standard (85% typical load) |
| Fan Size | 120mm |
| Fan Bearing | Hydraulic Bearing |
| Cable Type | Flat Black Cables |
| Protection | OPP, OVP, SCP, UVP |
| Connections | 1 × 20/24-Pin, 2 × 4/8-Pin ATX12V, 4 × 6/8-Pin PCIe, 6 × SATA, 2 × IDE |
| Dimensions (W × L × H) | 150 × 140 × 86 mm |
| Weight | 2.5 kg |
| Operating Temperature | 0–40°C |
| Regulatory Certifications | CB, CCC, CE, UKCA, EAC, RCM, KC |
| MTBF | 100,000 Hours |
| Special Features | Silent Operation, Reliable Protection, Efficient Power Delivery |
The DeepCool 700W Power Supply Unit combines efficient power delivery, quiet operation, and robust protection to provide a dependable foundation for your PC build.
