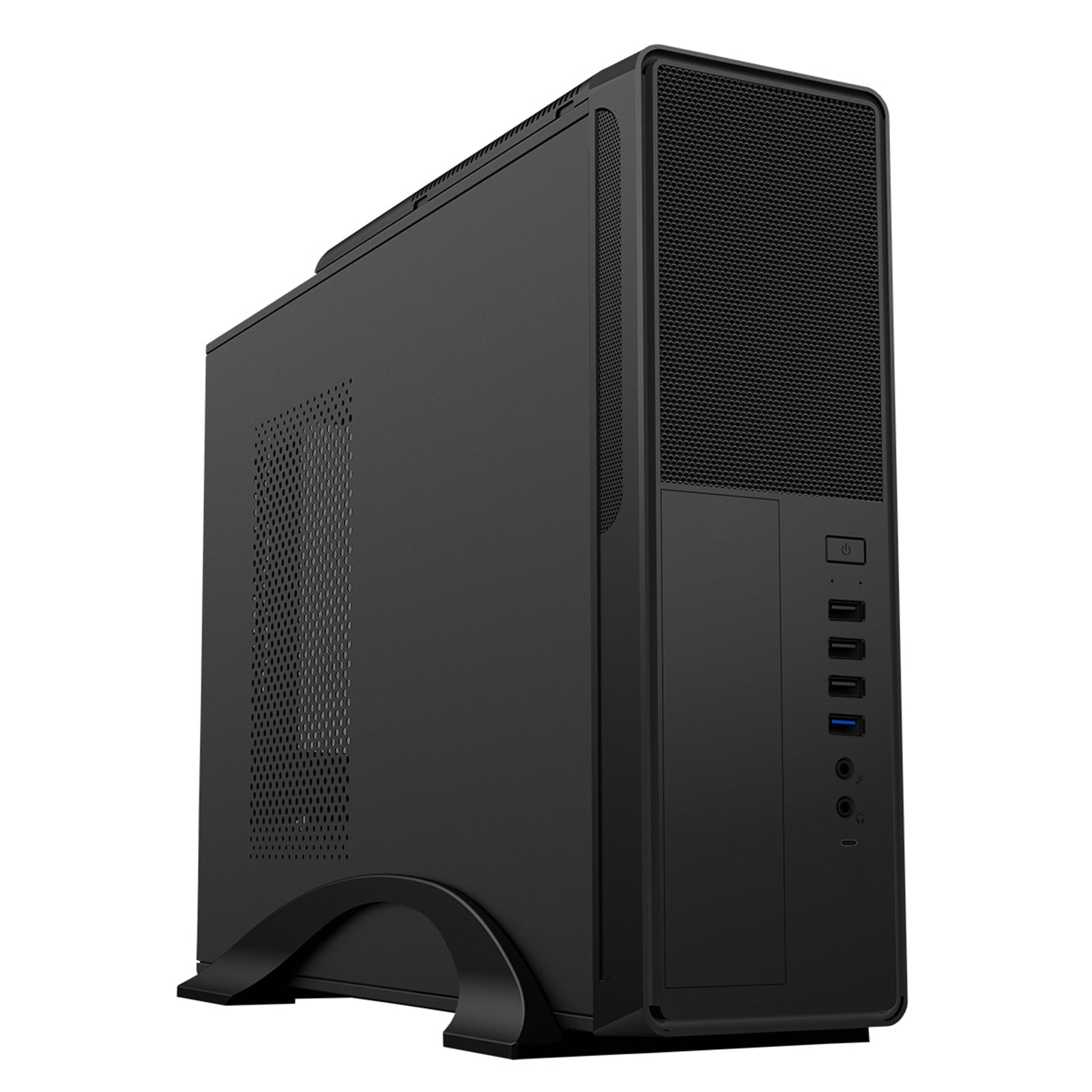

CiT S014C Micro Slim Case with 300W Micro ATX PSU
The CiT S014C micro slim case is designed with a compact, space-saving footprint, making it ideal for desks and environments where every millimetre counts. Despite its small size, it offers modern front I/O connectivity, efficient cooling, and a pre-installed silent micro SFX 300W power supply, making it a strong foundation for a business or home PC system.
Key Features
-
Slim, Compact Design
Save valuable desk space with a micro tower chassis engineered for a small footprint. -
Pre-installed 300W Micro ATX PSU
Includes a silent micro SFX 300W power supply to help provide reliable performance. -
Effective Cooling Out of the Box
Supplied with 1 x 8cm (80mm) top cooling fan for improved airflow. -
Removable HDD/ODD Cage
Simplifies installation and assembly of your components. -
Modern Front I/O Connectivity
Includes USB 3.0 Type-C and USB 3.0 Type-A, plus multiple USB 2.0 ports and audio connections.
Specifications
General
| Specification | Details |
|---|---|
| Form Factor | Micro Tower |
| Motherboard Support | Micro ATX, Mini-ITX |
| PSU Included | Yes |
| PSU Support | Micro ATX |
| PSU Location | Front |
| Body Material | 0.5mm SECC Metal |
| Front Bezel Material | Plastic |
| Side Panel | Vented |
| Front Bezel Colour | Black |
| Body Colour | Black |
| Product Dimensions (W x H x D) | 100 x 306 x 403mm |
PSU Specification (300W Micro ATX)
Rails & Max. DC Output
| Rail | Max. DC Output |
|---|---|
| +3.3V | 16A |
| +5V | 16A |
| +12V | 14A |
| -12V | 0.3A |
| +5VSB | 2A |
Connections
| Connector | Quantity |
|---|---|
| 20 + 4 Pin ATX | 1 |
| +12V 4 Pin CPU | 1 |
| 4 Pin Molex | 2 |
| SATA | 3 |
| FDD | 1 |
Drive Bays
| Type | Quantity |
|---|---|
| 5.25" External | 1 |
| 3.5" Internal | 2 |
| 2.5" Internal | 2 (1 uses a 3.5" bay) |
Expansion & Compatibility
| Feature | Details |
|---|---|
| Expansion Slots | 4 x Half-Height |
| GPU Card Max Length | 225mm |
| CPU Cooler Max Height | 82mm |
| Internal Cable Management Depth | 21mm |
Cooling
| Position | Support / Included |
|---|---|
| Front | None |
| Top | Space for 1 x 80mm fan (1 x 8cm fan included) |
| Rear | None |
| Side | Vent |
| Bottom | Vent and space for 1 x 50mm fan (not included) or SSD |
Front I/O Ports
| Port Type | Quantity |
|---|---|
| USB 3.0 Type-A | 1 |
| USB 3.0 Type-C | 1 |
| USB 2.0 | 3 |
| HD Audio (also supports AC'97) | 1 |
| Microphone | 1 |
The CiT S014C micro slim case combines a slim profile, integrated 300W PSU, included top fan, and versatile front I/O into a compact micro tower solution tailored for efficient, space-conscious PC builds.
