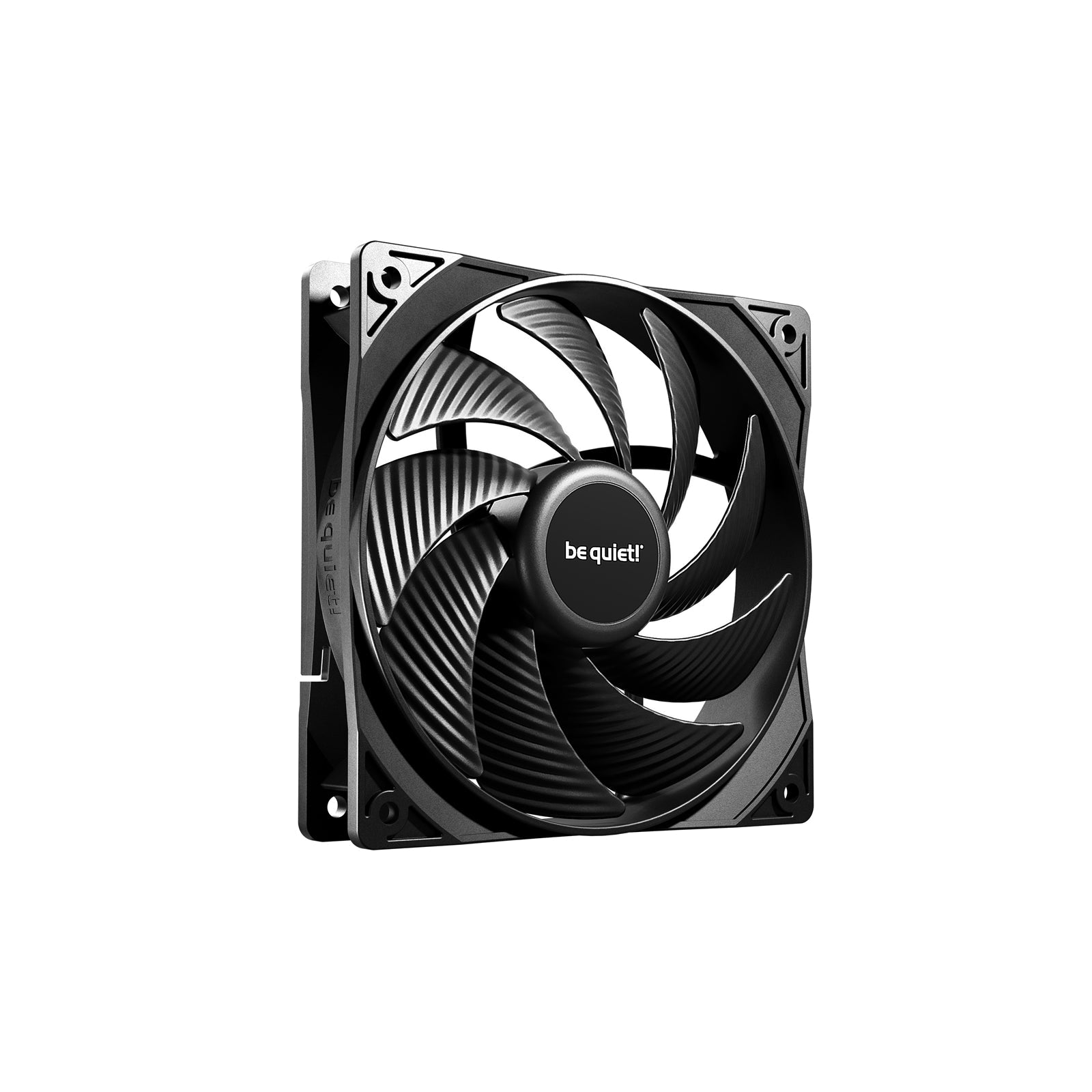

be quiet! Pure Wings 3 120mm PWM High-Speed Fan
Performant, progressive, and quiet, the Pure Wings 3 120mm PWM high-speed fan is designed for demanding PCs that require extraordinarily high performance and advanced features, such as a speed-regulating closed loop motor. This makes it a versatile companion for your gaming system. Its iconic design makes it instantly recognizable as a be quiet! fan and adds a touch of elegance to any configuration.
Key Features
- Innovative closed loop motor keeps the rpm constant, no matter the resistance
- Optimized fan frame for outstanding performance on radiators
- Newly designed fan blades and reworked blade angle for extraordinary air pressure
- Very low minimum rpm capability for exceptionally quiet operation
- Long-life rifle bearing with an operating lifetime of 80,000 hours
- Iconic, streamlined design without unnecessary elements
- Product conception, design, and quality control in Germany
Innovative Closed Loop Motor Technology
Persistent rpm regardless of resistance
Pure Wings 3 120mm PWM high-speed features a closed loop motor, comparable to cruise control in cars. When a fan works against resistance, such as a fan grill or radiator, it normally spins slower. The closed loop motor technology constantly monitors the current fan speed and increases it to the target rpm if necessary. As a result, Pure Wings 3 120mm PWM high-speed always operates at the desired speed, no matter the air resistance.
Optimized for Outstanding Air Pressure
Enhanced frame and blade design
The newly designed fan frame outlet minimizes air leaks, significantly improving radiator performance. The fan blades are also optimized: their angle is adjusted to achieve even more air pressure. Together, these improvements deliver the extraordinary performance of Pure Wings 3 120mm PWM high-speed.
Ideal for Radiators and Heatsinks
High-pressure fan blades for demanding setups
With an air pressure of up to 2.41 mm H₂O, Pure Wings 3 120mm PWM high-speed is suitable for both water-cooled and air-cooled systems. The 9 airflow-optimized fan blades provide sufficient air pressure to perform reliably even in demanding configurations.
Iconic, Streamlined Design
Timeless look with functional aesthetics
Pure Wings 3 120mm PWM high-speed is trimmed to pure functionality. Every outline and angle serves a purpose, contributing to its uncompromising performance. The result is a timeless, elegant fan that complements any gaming PC.
Durable Rifle Bearing Technology
Built for long-term reliability
Equipped with proven rifle bearing technology, Pure Wings 3 120mm PWM high-speed offers an average lifespan of 80,000 hours, making it a long-lasting component for your system.
Specifications
General Data
| Parameter | Value |
|---|---|
| Model | Pure Wings 3 120mm PWM high-speed |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | No |
| Fan speed at 100% PWM / 12V (rpm) | 2100 |
| Noise level at 100% PWM / 12V (dB(A)) | 30.9 |
| Airflow at 100% PWM / 12V (CFM / m³/h) | 59.6 / 101.2 |
| Air pressure at 100% PWM / 12V (mm H₂O) | 2.41 |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) (mm) | 120 x 120 x 25 |
| Weight incl. fixed cables (g) | 149 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | No |
| Screw fixing | Yes |
Cables / Connectors
| Parameter | Value |
|---|---|
| Daisy-chain compatible | No |
| Lighting connector | No |
| Connector | 4-pin PWM |
| Cable length (mm) | 460 |
| Cable sleeve | No |
Performance / Noise
| Parameter | Value |
|---|---|
| Airflow at 100% PWM / 12V (CFM / m³/h) | 59.6 / 101.2 |
| Air pressure at 100% PWM / 12V (mm H₂O) | 2.41 |
| Noise level at 100% PWM / 12V (dB(A)) | 30.9 |
| Lifespan (h / 25°C) | 80,000 |
| Zero RPM mode | No |
Electrical Specifications
| Parameter | Value |
|---|---|
| Rated voltage DC (V) | 12 |
| Operating voltage DC (V) | 5 – 13.2 |
| Current consumption (A) | 0.13 |
| Safety current (A) | 0.30 |
| Input power (W) | 3.6 |
| Rated current LED (A) | No |
Accessories
| Accessory | Included |
|---|---|
| 3-pin to 4-pin 12V connector | No |
| 12V to 7V adapter | No |
| 12V to 5V adapter | No |
| Screws | 4 |
| Push pins | No |
| Hard plastic washer | No |
| Others | No |
Safety Certification
| Parameter | Value |
|---|---|
| Approvals | CE / RoHS / RU / UKCA / WEEE |
Environmental Directives
| Parameter | Value |
|---|---|
| RoHS | Yes |
| WEEE | Yes |
| Triman | Yes |
Service
| Parameter | Value |
|---|---|
| Warranty (years) | 3 |
| International hotline / free of charge | ? / DE, FR, US |
