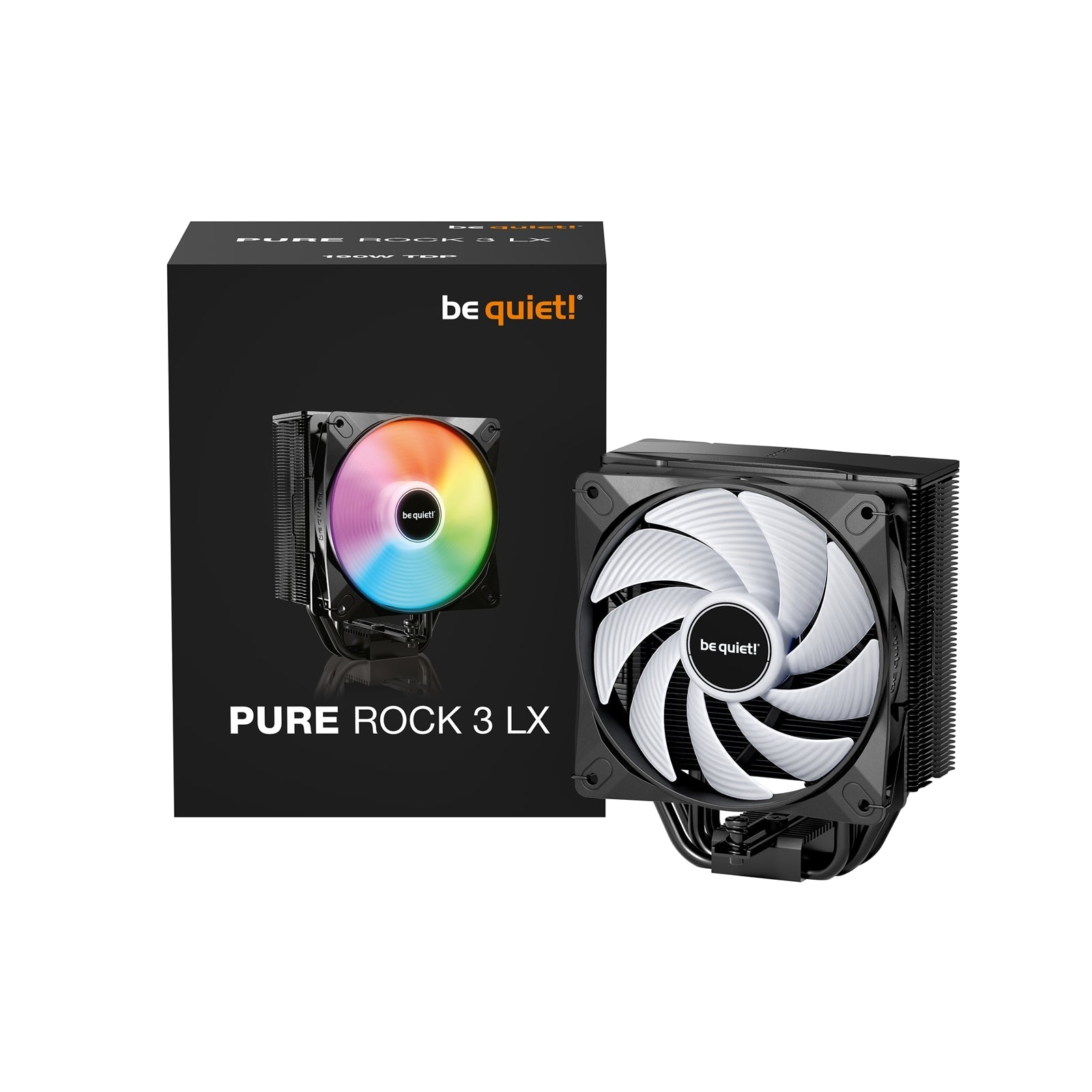

PURE ROCK 3 LX – Compact Performance for Everyone
The PURE ROCK 3 LX delivers very high cooling performance in a compact, all‑black design, powered by a spectacular Light Wings LX 120 mm PWM ARGB fan. Despite its small footprint, this air cooler is a true cooling powerhouse, combining efficient heat dissipation with stunning visual effects and easy installation.
Key Features
-
Very High Cooling Capacity
Designed for modern CPUs with a TDP of 190 W. -
Light Wings LX 120 mm PWM ARGB Fan
- Funnel-shaped air outlet for high performance
- ARGB lighting for impressive, customizable visuals
-
4-pin PWM connector for precise speed control
-
Efficient Heat Dissipation
- 4 black high-performance 6 mm heat pipes
- HDT (heat pipe direct touch) technology
- Aluminum fins with electrophoresis surface treatment
-
Aluminum/copper base with heat pipe direct touch CPU contact surface
-
Quiet Operation
Achieves only 31.2 dB(A) at maximum fan speed. -
High Compatibility
- Compact design for improved RAM and VRM cooler clearance
-
Offset mounting for better performance on latest AMD Ryzen CPUs
-
Fast, Easy Installation
- Preinstalled cooler mounting bridge
- Mounting set for Intel and AMD sockets
-
Thermal grease pre-applied
-
Elegant All-Black Look
Sleek, understated aesthetics that blend into any build. -
3-Year Manufacturer’s Warranty
Specifications
General
| Specification | Detail |
|---|---|
| Model | Pure Rock 3 LX |
| TDP (W) | 190 |
| Color Option | Black |
| Dimensions Without Mounting Material (L × W × H) | 71 × 124 × 154 mm |
| Total Weight | 0.57 kg |
| Socket Compatibility – Intel | 1851 / 1700 / 1200 / 1150 / 1151 / 1155 |
| Socket Compatibility – AMD | AM5 / AM4 |
| Overall Noise Level (dB(A)) @ 50 / 75 / 100% rpm | 12.4 / 24.4 / 31.2 |
| Number of Fans | 1 |
| Lighting Connector | No |
| Warranty | 3 Years |
Fan Specifications
| Specification | Detail |
|---|---|
| Fan Model | Light Wings LX 120mm PWM |
| Fan Dimensions (L × W × H) | 120 × 25 × 120 mm |
| Speed @ 100% PWM (rpm) | 2000 |
| Airflow @ 100% PWM / 12V (cfm / m³/h) | 61.85 / 105.1 |
| Air Pressure @ 100% PWM / 12V (mm H₂O) | 2.51 |
| Bearing Technology | Rifle |
| Motor Technology | 4-pole fan motor |
| Rated Voltage (V) | 12 |
| Input Current (A) | 0.15 |
| Safety Current (A) | 0.30 |
| Input Power (W) | 5.4 |
| Connector | 4-pin PWM |
| Lighting Connector | Yes |
| Cable Length | 120 mm |
| Lifespan (h / 25°C) | 60,000 |
| Y-Cable | No |
| Safety Certification Approvals | CE, UKCA, UL |
Heatsink
| Specification | Detail |
|---|---|
| Heatsink Dimensions (L × W × H) | 46 × 124 × 154 mm |
| Fin Material | Aluminum |
| Surface Treatment | Electrophoresis |
| Base Material | Aluminum / Copper |
| CPU Contact Surface | Heat pipe direct touch |
| Heatpipe Number / Diameter | 4 / 6 mm |
| Decoupled Fan Mounting | No |
Accessories
| Accessory | Detail |
|---|---|
| Thermal Grease | Applied |
| Mounting Set | Intel & AMD |
| Screwdriver | No |
| Y-Cable | No |
| User Manual Languages | CN, DE, EN, ES, FR, JP, PL, RU, TW, UA |
Environmental Directives
| Directive | Compliance |
|---|---|
| RoHS | Yes |
| WEEE | Yes |
| Triman | Yes |
Packaging
| Specification | Detail |
|---|---|
| Package Dimensions (L × W × H) | 133 × 163 × 210 mm |
| Gross Weight, Package | 14.8 kg |
