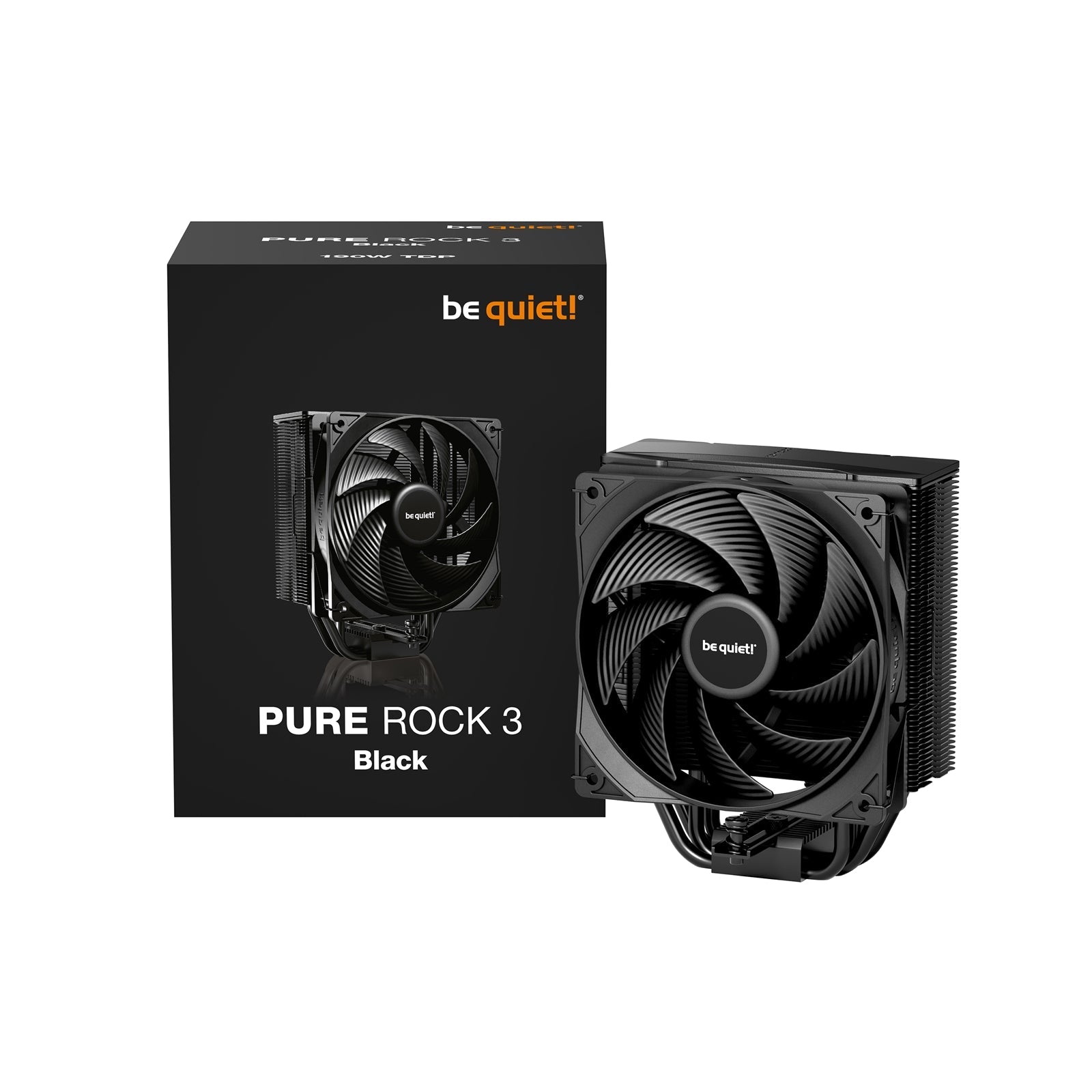

PURE ROCK 3 Black
Compact CPU Cooling Performance for Everyone
The PURE ROCK 3 Black delivers very high cooling performance in a compact, all‑black design with a specially engineered Pure Wings 3 fan. Despite its small footprint, this air cooler performs like a powerhouse and is quick to install thanks to a preinstalled mounting bridge.
Key Features
- Very high cooling capacity for modern CPUs
- 4 black high‑performance 6 mm heat pipes with HDT (Heat Pipe Direct Touch) technology
- Optimized Pure Wings 3 120 mm PWM fan with funnel‑shaped air outlet
- Only 31.2 dB(A) at maximum fan speed
- High RAM and VRM cooler compatibility due to compact design
- Preinstalled cooler mounting bridge for fast, easy installation
- Offset mounting for better performance on latest AMD Ryzen CPUs
- Elegant all‑black appearance
- 3‑year manufacturer’s warranty
General Specifications
| Category | Details |
|---|---|
| Model | Pure Rock 3 Black |
| TDP (W) | 190 |
| Color Option | Black |
| Dimensions Without Mounting Material (L x W x H) | 71 x 124 x 154 mm |
| Total Weight | 0.57 kg |
| Socket Compatibility – Intel | 1851 / 1700 / 1200 / 1150 / 1151 / 1155 |
| Socket Compatibility – AMD | AM5 / AM4 |
| Overall Noise Level (dB(A)) @ 50 / 75 / 100% (rpm) | 12.4 / 24.4 / 31.2 |
| Number of Fans | 1 |
| Lighting Connector | No |
| Warranty | 3 Years |
Fan Specifications
| Category | Details |
|---|---|
| Fan Model | Pure Wings 3 120mm PWM |
| Fan Dimensions (L x W x H) | 120 x 25 x 120 mm |
| Speed @ 100% PWM (rpm) | 2000 |
| Airflow @ 100% PWM / 12V (cfm / m³/h) | 59.6 / 101.2 |
| Air Pressure @ 100% PWM / 12V (mm H₂O) | 2.41 |
| Bearing Technology | Rifle |
| Motor Technology | 4‑pole fan motor |
| Rated Voltage (V) | 12 |
| Input Current (A) | 0.13 |
| Safety Current (A) | 0.30 |
| Input Power (W) | 3.6 |
| Connector | 4‑pin PWM |
| Lighting Connector | No |
| Cable Length | 120 mm |
| Lifespan (h / 25°C) | 80,000 |
| Y‑Cable | No |
| Safety Certification Approvals | CE, UKCA, UL |
Heatsink Specifications
| Category | Details |
|---|---|
| Heatsink Dimensions (L x W x H) | 46 x 124 x 154 mm |
| Fin Material | Aluminum |
| Surface Treatment | Electrophoresis |
| Base Material | Aluminum / Copper |
| CPU Contact Surface | Heat pipe direct touch |
| Heatpipe Number / Diameter | 4 / 6 mm |
| Decoupled Fan Mounting | No |
Accessories
| Category | Details |
|---|---|
| Thermal Grease (Type) | Applied |
| Mounting Set | Intel & AMD |
| Screwdriver | No |
| Y‑Cable | No |
| User Manual Languages | CN, DE, EN, ES, FR, JP, PL, RU, TW, UA |
Environmental Directives
| Category | Details |
|---|---|
| RoHS | Yes |
| WEEE | Yes |
| Triman | Yes |
Packaging & Dimensions
| Category | Details |
|---|---|
| Package Dimensions (L x W x H) | 133 x 163 x 210 mm |
| Gross Weight, Package | 14.8 kg |
