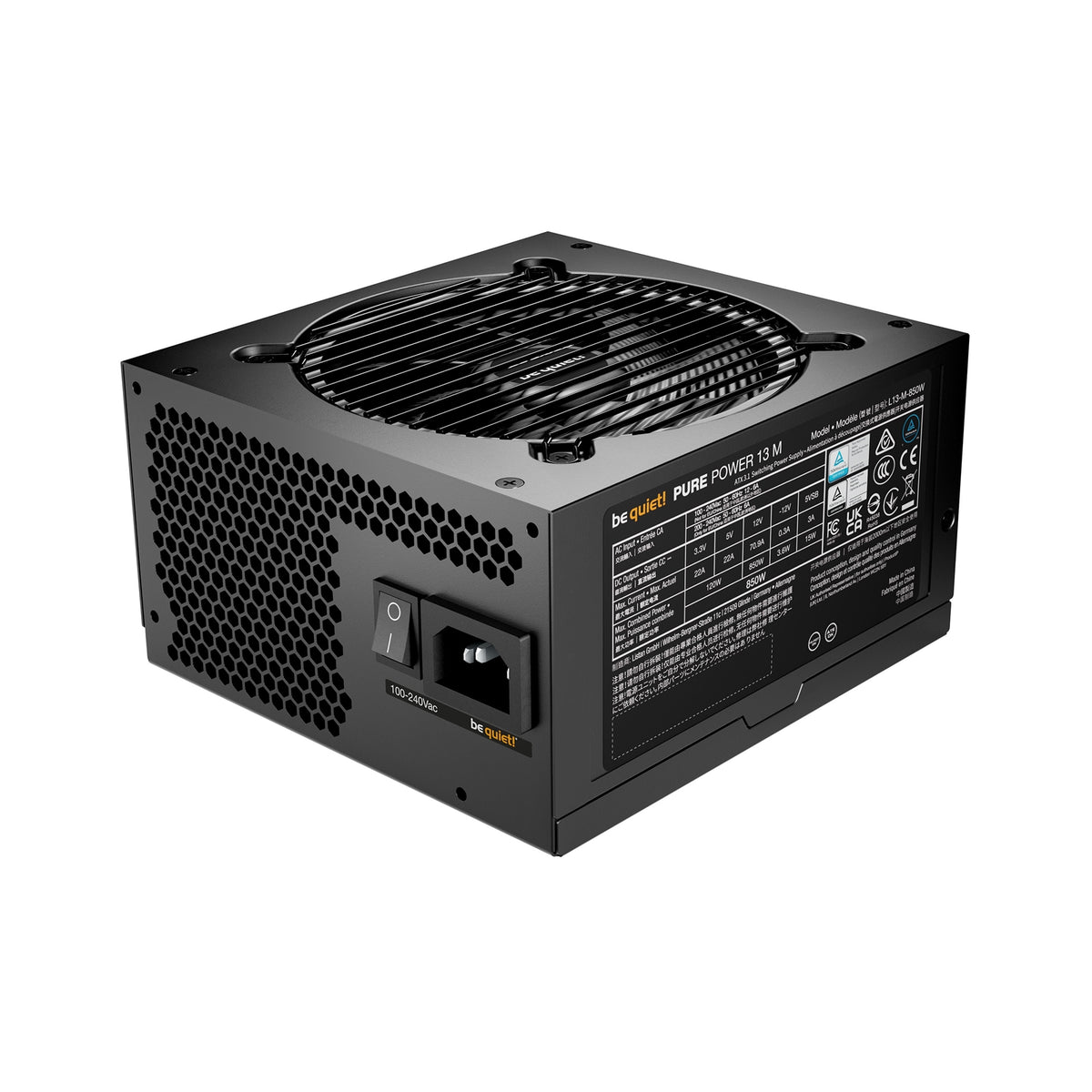

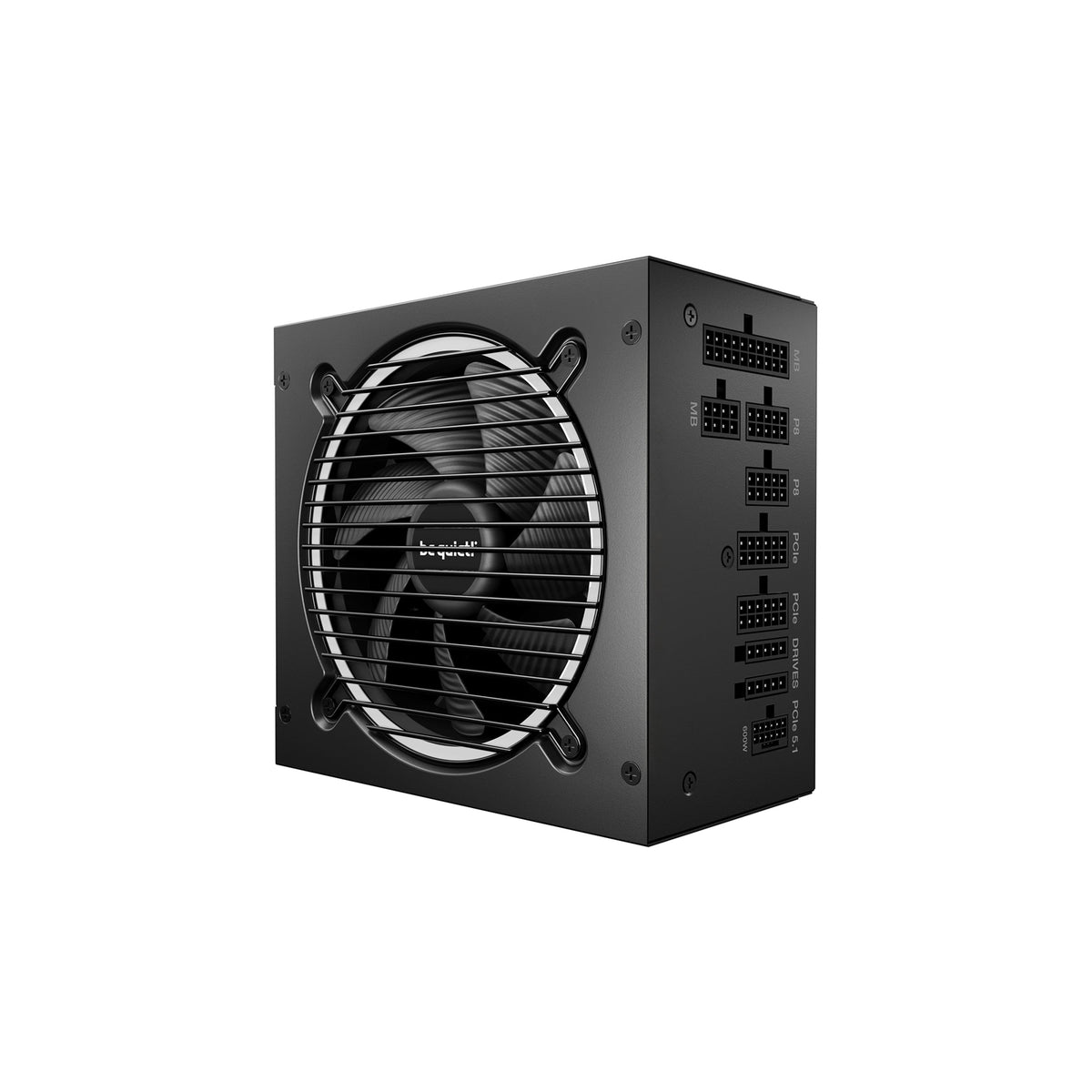

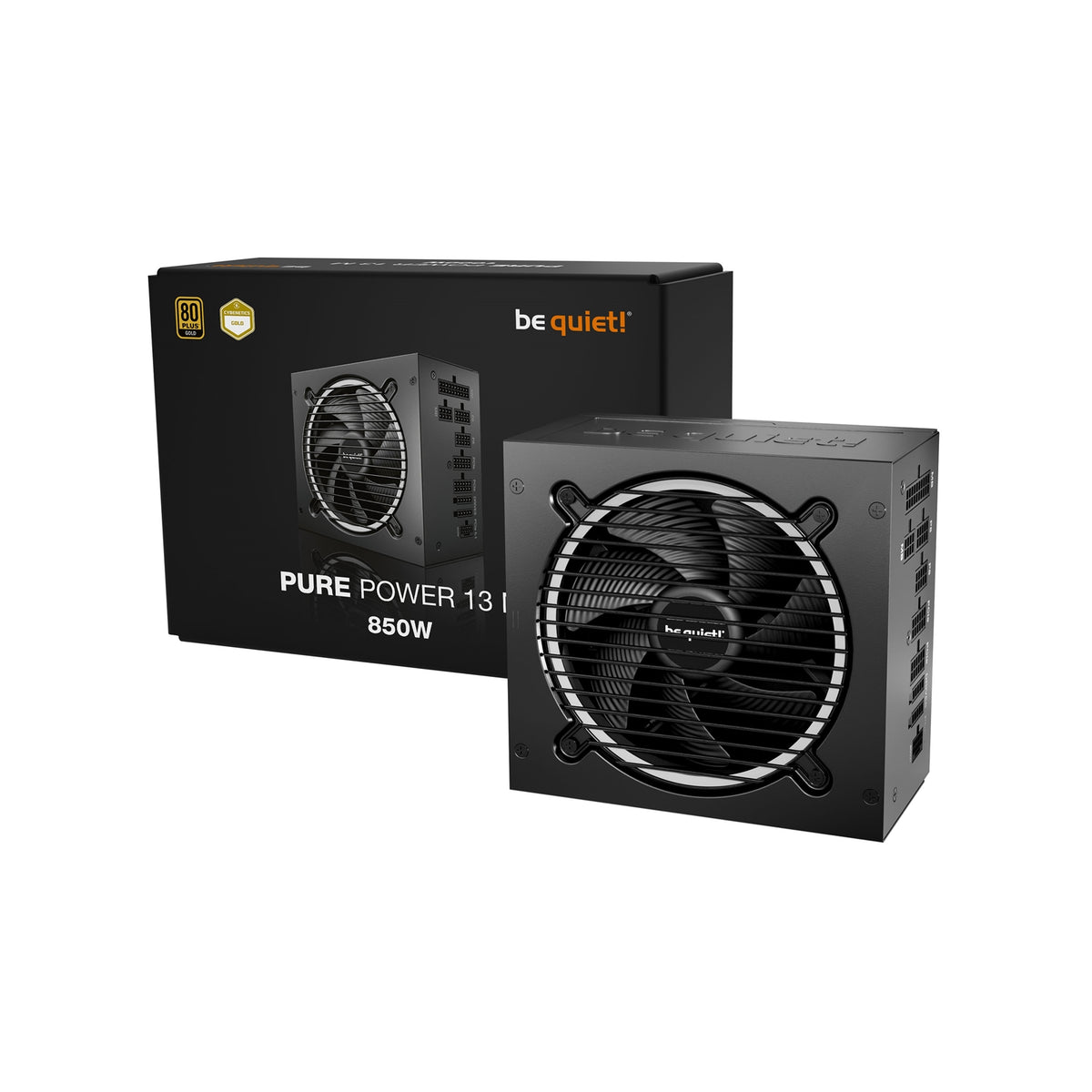

Pure Power 13 M 850W ATX 3.1 Power Supply
The Pure Power 13 M 850W is an ATX 3.1 compliant, PCIe 5.1 compatible power supply with semi-passive cooling, engineered for reliability and quiet operation. With both a PCIe 5.1 cable and PCIe 6+2 cables included, it delivers outstanding compatibility with current and next-generation graphics cards.
Key Features
-
ATX 3.1 & PCIe 5.1 Ready
Full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
-
80 PLUS Gold Certified
Efficiency up to 94.4%
-
Handles Massive Power Excursions
Designed to support demanding power spikes
-
Exceptionally Silent Cooling
Semi-passive 120 mm be quiet! fan for quiet and energy-saving operation
-
Advanced Power Topology
LLC technology for high stability and precise voltage regulation
-
High-Performance 12V Rail
Single massive 12V rail for strong, stable power delivery
-
Next-Gen GPU Connectivity
1 x PCIe 5.1 12V-2x6 600W and 4 x PCIe 6+2 connectors for overclocked high-end GPUs
-
Comprehensive Protection
Full suite of safety features for secure operation
-
Modern Standby Support
Meets the latest requirements for modern standby
-
Long-Term Reliability
10-year manufacturer’s warranty
Specifications
General Data
| Parameter |
Value |
| Model |
Pure Power 13 M | 850W |
| Continuous power (W) |
850 |
| Peak power (W) |
900 |
| Form factor |
Version 3.1 |
| Form factor EPS 12V |
Version 2.92 |
| Topology |
LLC + SR + DC/DC |
| Digitally controlled |
No |
| Voltage (Vac) |
100 – 240 |
| Frequency (Hz) |
50 – 60 |
| Input current (A) |
12 / 6 |
| Power factor at 100% load |
>0.98 |
| Modern standby |
Yes |
| Power consumption in standby (W) |
<0.1 |
| Average lifetime (h / 25°C) |
>100,000 |
| Operating temperature up to (°C) |
40 |
Efficiency
| Parameter |
Value |
| 80 PLUS certification |
Gold |
| Efficiency at 230V, 2% load (%) |
70.5 |
| Efficiency at 230V, 10% load (%) |
90.0 |
| Efficiency at 230V, 20% load (%) |
93.2 |
| Efficiency at 230V, 50% load (%) |
94.4 |
| Efficiency at 230V, 100% load (%) |
92.8 |
Fan and Cooling Technology
| Parameter |
Value |
| Cybenetics Noise Rating |
No |
| Fan |
Silence-optimized be quiet! fan |
| Fan size (mm) |
120 |
| Bearing technology |
Rifle |
| Motor technology |
4-pole fan motor |
| Max. fan speed (rpm) |
2000 |
| dB(A) at 10% load |
n/a |
| dB(A) at 20% load |
12.9 |
| dB(A) at 50% load |
13.2 |
| dB(A) at 100% load |
30.2 |
Output
| Parameter |
Value |
| Multi-rail operation (12V rails) |
No |
| 12V single rail operation |
Yes |
| Overclocking key |
No |
| +3.3V (A) |
22 |
| +5V (A) |
22 |
| +12V1 (A) |
70.9 |
| +12V2–6 (A) |
N/A |
| -12V (A) |
0.3 |
| +5Vsb (A) |
3 |
| Max. combined power 12V (W) |
850 |
| Max. combined power 12V-2x6 (W) |
600 |
| Max. combined power 3.3V + 5V (W) |
120 |
| Hold-up time at 100% load (ms) |
25.09 |
| Hold-up time at 80% load (ms) |
33.38 |
| Power good signal (ms) |
100 – 150 |
Cables and Connectors
| Parameter |
Value |
| Modular cables |
Yes |
| Sleeved cables |
Yes |
| Flat cables |
Yes |
| Maximum cable length (cm) |
95 |
| Cable length to motherboard (cm) |
55 |
| Number of cables |
8 |
| ATX-Motherboard (20+4-pin) |
1 |
| P4+4 (CPU) |
1 |
| P8 (CPU) |
1 |
| P4 (CPU) |
No |
| 12V-2x6 cables |
1 |
| PCI-E 6+2-pin (GPU) |
4 |
| PCI-E 6-pin (GPU) |
No |
| SATA |
6 |
| PATA |
2 |
| FDD (Floppy) |
No |
Protection
| Protection Type |
Available |
| OTP (over temperature protection) |
Yes |
| OCP (over current protection) |
Yes |
| OPP (over power protection) |
Yes |
| SCP (short circuit protection) |
Yes |
| OVP (over voltage protection) |
Yes |
| UVP (under voltage protection) |
Yes |
| SIP (Surge & Inrush protection) |
Yes |
Safety Certification
| Certification |
Available |
| BSMI |
Yes |
| CB |
Yes |
| CCC |
Yes |
| CE |
Yes |
| cRUus |
No |
| cTUVus |
Yes |
| CU |
Yes |
| FCC |
Yes |
| RCM |
Yes |
| TÜV |
Yes |
| UKCA |
Yes |
| IRAM |
No |
Environmental Directives
| Directive |
Compliance |
| ENERGY STAR |
8.0 |
| ErP |
Yes |
| WEEE |
Yes |
| RoHS |
Yes |
| Triman |
Yes |
Scope of Delivery
| Item |
Included |
| Thumb screws |
No |
| Screws |
Yes |
| Cable ties |
Yes |
| Velcro cable ties |
No |
| User manual languages |
CN, DE, EN, ES, FR, JP, PL, RU, TW |
| OCK slot bracket with switch / OCK jumper |
No |
| SFX-to-ATX adapter bracket |
No |
Casing
| Parameter |
Value |
| Dimensions without cable (L x W x H, mm) |
160 x 150 x 86 |
| Weight (kg) |
2.62 |
| Color |
Black |
