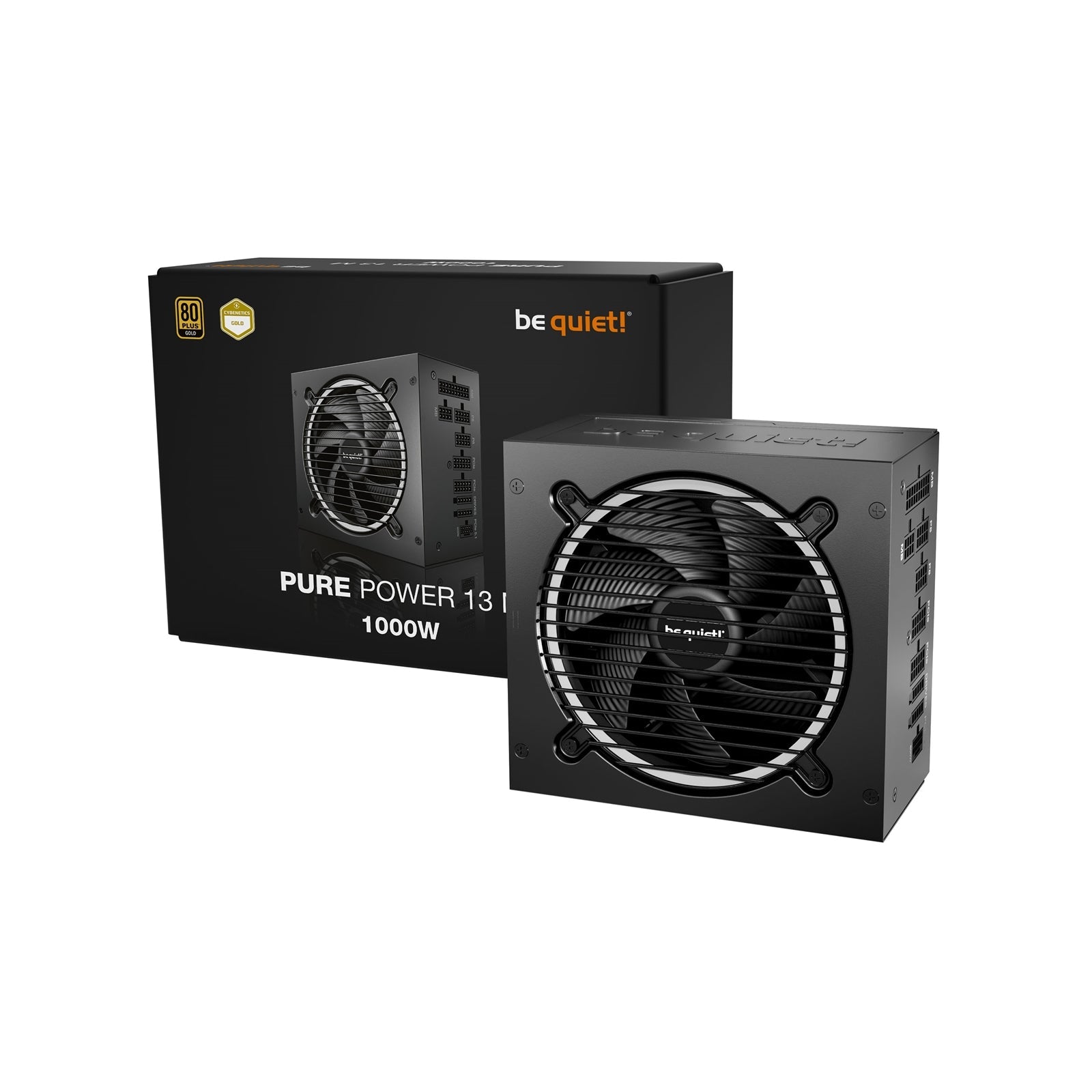

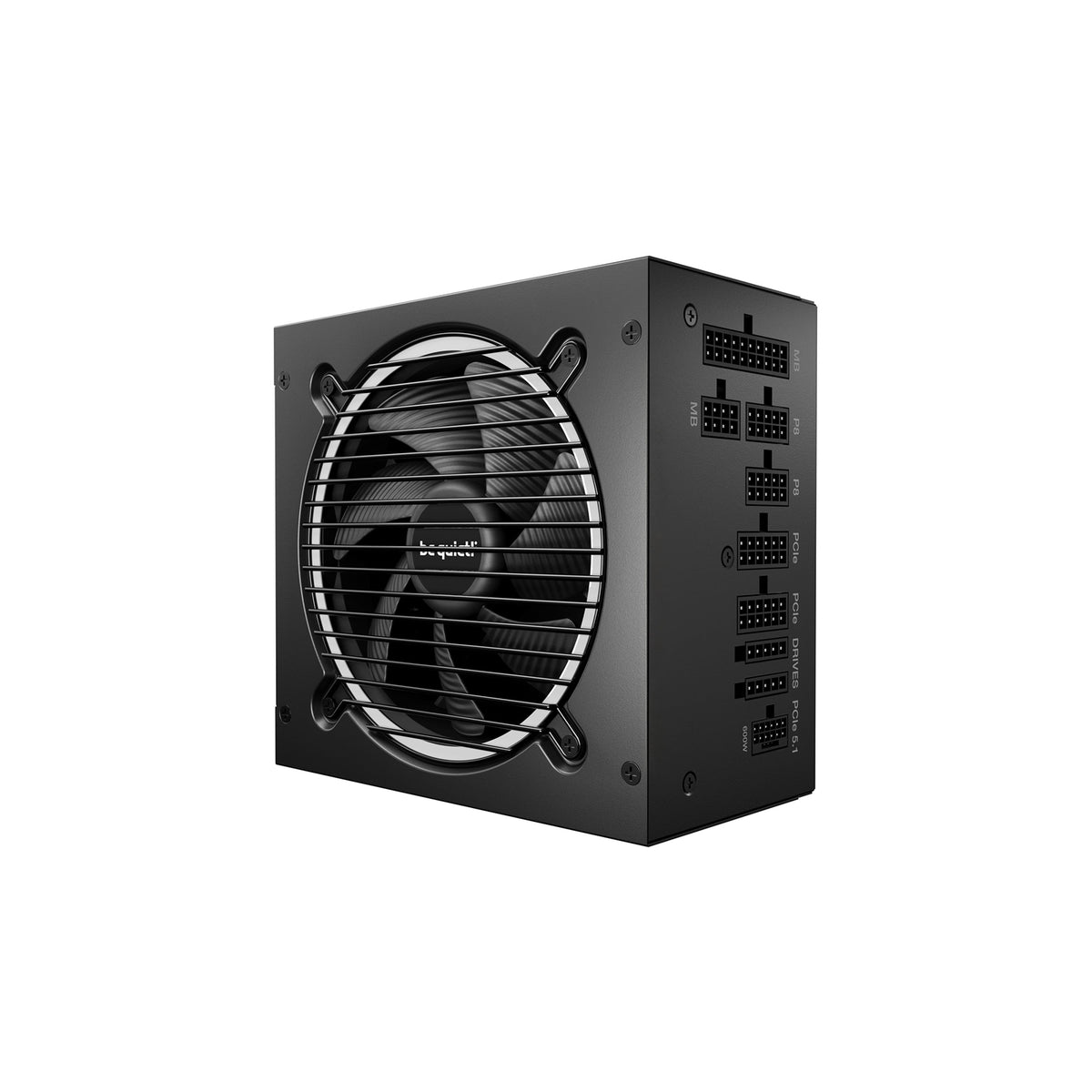

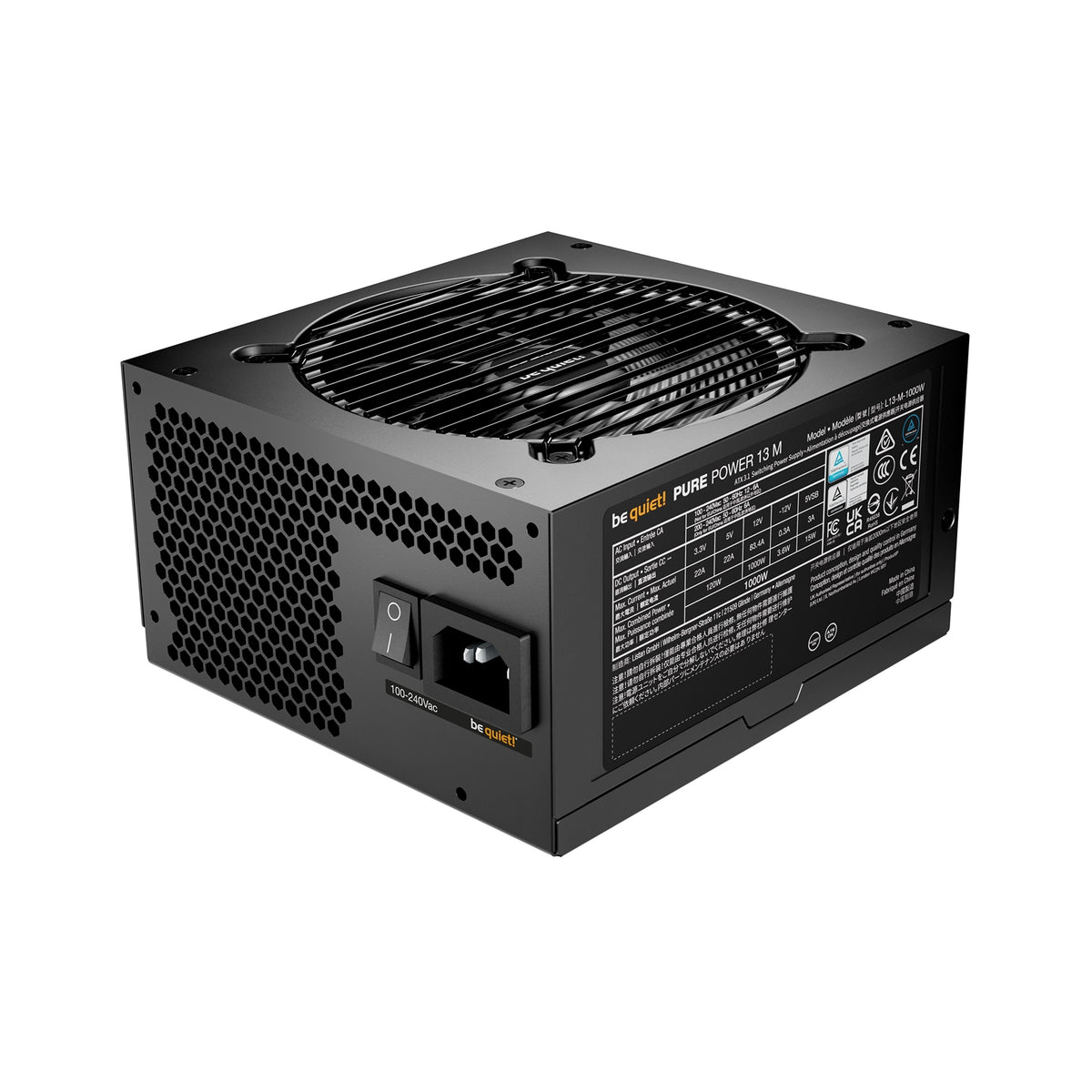

be quiet! Pure Power 13 M 1000W (BP028EU) Fully Modular Power Supply
The be quiet! Pure Power 13 M 1000W (MPNBP028EU) is a fully modular, high-efficiency power supply unit engineered for advanced desktop systems. Designed to meet the latest ATX 3.1 standards and EPS 12V v2.92, it delivers reliable, quiet, and powerful performance for demanding builds.
With PCIe 5.1 compatibility, including a native 12V-2x6 connector for next-generation GPUs, 80 PLUS Gold efficiency, and semi-passive cooling with zero-RPM fan operation at low load, this PSU combines cutting-edge technology with whisper-quiet operation. Robust protections and a 10-year warranty provide long-term peace of mind.
Key Features
-
1000W Continuous Output
1000W continuous power with up to 1050W peak output for high-demand systems. -
High Efficiency – 80 PLUS Gold
Up to ~94.4% efficiency at 50% load for reduced power loss and heat generation. -
Latest ATX 3.1 & PCIe 5.1 Support
- Compliant with ATX 3.1 and EPS 12V v2.92 standards
- Native 12V-2x6 (600W) connector for next-gen GPUs
-
4 x 6+2-pin PCIe connectors for flexible graphics card support
-
Strong Single 12V Rail Design
Single powerful 12V rail (up to 83A) for reliable handling of power spikes and high-load scenarios. -
Quiet, Semi-Passive Cooling
120mm rifle-bearing fan with zero-RPM operation at low loads for silent operation when the system is idle or under light use. -
Advanced Topology & Control
LLC topology with digital control for tight voltage regulation and stable power delivery. -
Fully Modular Cabling
Flat and sleeved fully modular cables for clean cable management and easier installation. -
Long-Term Reliability
- MTBF ≥ 100,000 hours
-
10-year limited manufacturer’s warranty
-
Comprehensive Protection Suite
OCP, OVP, UVP, OPP, OTP, SCP, and surge/inrush protection for enhanced component safety.
Full Technical Specifications
| Specification | Detail |
|---|---|
| Model / MPN | Pure Power 13 M 1000W (BP028EU / MPNBP028EU) |
| Form Factor | ATX 3.1 (EPS 12V v2.92) |
| Continuous Power Output | 1000W |
| Peak Power Output | 1050W |
| Efficiency Rating | 80 PLUS Gold (up to ~94.4% at 50% load) |
| Input Voltage | 100–240VAC |
| Input Frequency | 50–60Hz |
| Input Current | ~6A @ 240VAC, ~12A @ 120VAC |
| Power Factor | ≥0.98 at full load |
| Modern Standby | Supported; <0.1W standby consumption |
| Operating Temperature | Up to 40°C |
| MTBF | ≥100,000 hours at 25°C |
| 12V Rail Configuration | Single 12V rail (up to 83A) |
| Additional Rails | 3.3V / 5V at 22A each; -12V, +5VSB outputs supported |
| Hold-up Time | ~21ms at full load; ~28ms at 80% load |
| Protections | OCP, OVP, UVP, OPP, OTP, SCP, surge/inrush protection |
| Fan Type | 120mm rifle-bearing |
| Cooling Mode | Semi-passive, zero-RPM at low load |
| Noise Level @ ~20% Load | ~13.6dB(A) |
| Noise Level @ Full Load | ~30.3dB(A) |
| Modularity | Fully modular, flat and sleeved cables |
| Maximum Cable Length | Up to ~95cm total; ~55cm to motherboard |
| ATX Connector | 1 x 20+4-pin ATX |
| CPU Power Connectors | 1 x 4+4-pin CPU (EPS), 1 x 8-pin CPU |
| PCIe Connectors | 1 x 12V-2x6 (600W), 4 x 6+2-pin PCIe |
| SATA Power Connectors | 6 x SATA power |
| Peripheral Connectors | 2 x Molex (PATA) |
| Dimensions (W x D x H) | ~160 x 150 x 86mm |
| Warranty | 10-year limited warranty |
The be quiet! Pure Power 13 M 1000W (MPNBP028EU) is an ideal choice for builders seeking a fully modular, ATX 3.1-compliant, 80 PLUS Gold power supply that delivers quiet operation, next-gen GPU support, and long-term reliability.
