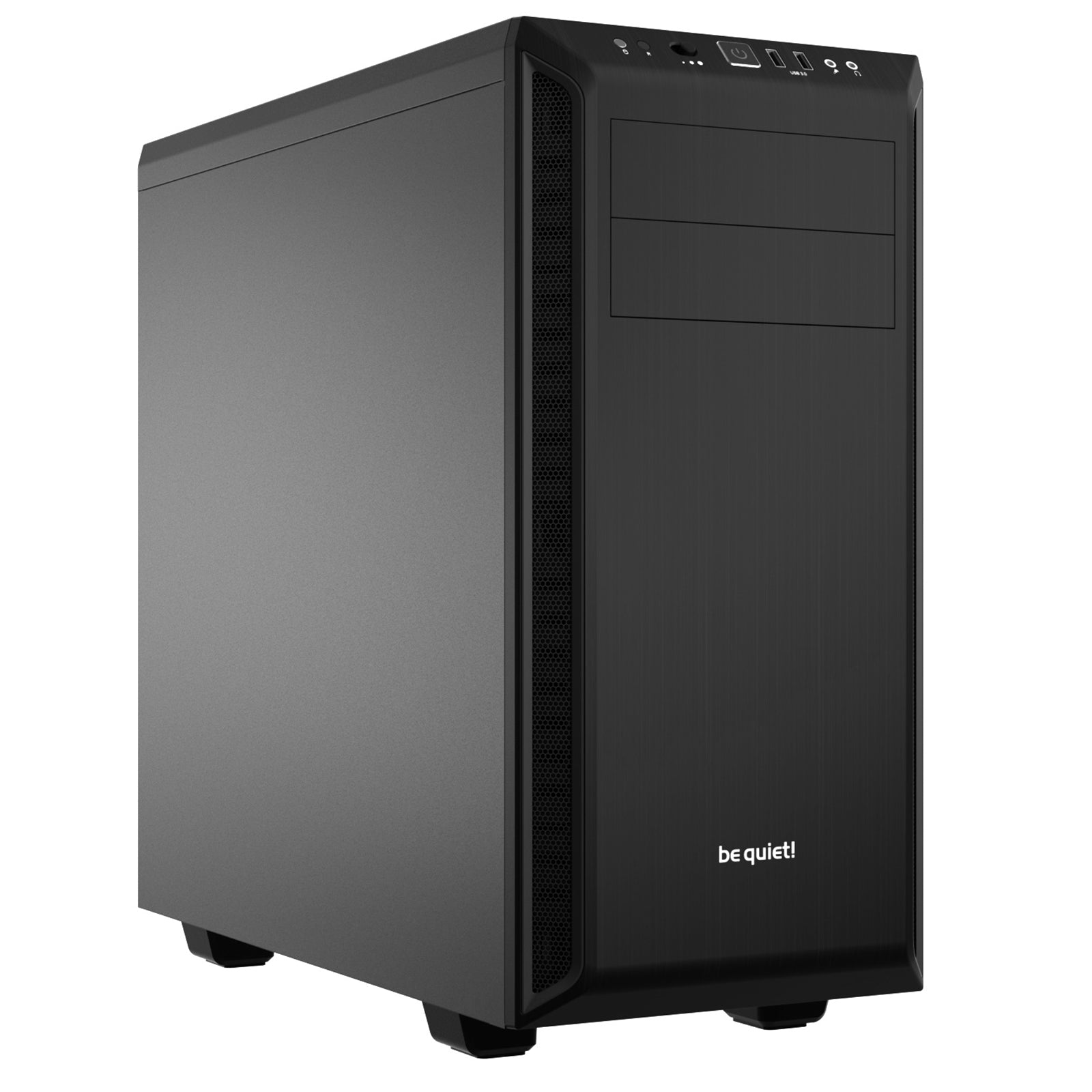

PURE BASE 600 – Black
Exceptionally Silent and Functional PC Case
The Pure Base 600 Black delivers a highly versatile PC case design with advanced silence features at an attractive price point.
Key Features
-
Exceptionally silent operation with comprehensive sound insulation
-
Highly versatile layout with repositionable HDD slots and a removable ODD cage
-
Water cooling ready for radiators up to 360 mm at the front, top, and rear
-
Adjustable top cover vent for optimized cooling or silence
-
2 pre-installed be quiet! Pure Wings 2 fans for whisper-quiet airflow
-
Integrated 3-step fan controller for up to 3 fans
-
3-year manufacturer’s warranty
- German product conception, design and quality control
Highly Versatile Construction
Pure Base 600 offers extensive options for configuring your system:
- 3 HDD slots can be repositioned to create space for even very large graphics cards.
- The ODD cage is removable, providing maximum flexibility for water cooling components and drive installation.
Optimized for Radiators
Designed with liquid cooling in mind, Pure Base 600 supports radiators in three dedicated areas:
All radiator sizes up to 360 mm are supported in these positions.
Adjustable Top Cover Vent
The ingenious top cover design lets you balance cooling and silence:
-
Closed for maximum noise reduction
-
Partially open for enhanced exhaust airflow
-
Fully open to mount a water-cooling radiator
Pre-Installed Pure Wings 2 Fans
For whisper-quiet cooling performance, Pure Base 600 includes:
-
Front: 1 × Pure Wings 2 140 mm fan
-
Rear: 1 × Pure Wings 2 120 mm fan
These fans feature 9 airflow-optimized blades to reduce turbulence and increase air pressure. The case allows the installation of up to four additional cooling fans.
Keep the System Super Silent
Built-in silence features help maintain an ultra-quiet system:
-
Integrated 3-step fan controller for up to 3 fans (3-pin)
-
Sound-insulating material on the top, side, and front panels to dampen vibration
-
Dust filters at the front and bottom to help keep dust out of the case
Technical Specifications
General Data
| Specification |
Details |
| Model |
Pure Base 600 Black |
| Color option |
Black |
| Motherboard compatibility |
ATX / M-ATX / Mini-ITX |
| Case size excl. stands (L × W × H) (mm) |
492 × 220 × 445 |
| Case size incl. stands (L × W × H) (mm) |
492 × 220 × 470 |
| PSU form factor |
ATX PS/2 |
| Weight (kg) |
7.44 |
| Expansion slots |
7 |
| Fan controller |
Manual 3-step fan controller (3× 3-pin) |
| Warranty |
3-year manufacturer’s warranty |
Pre-Installed Fans
| Position |
Model |
Size (mm) |
| Front |
Pure Wings 2 |
140 × 140 × 25 |
| Rear |
Pure Wings 2 |
120 × 120 × 25 |
| Top |
– |
– |
Fan Performance @ 100% PWM / 12 V
| Position |
Speed (rpm) |
Airflow (CFM / m³/h) |
Air Pressure (mm H₂O) |
Noise Level dB(A) |
Input Power (W) |
Input Current (A) |
| Front |
900 |
55.8 / 94.8 |
0.6 |
17.1 |
1.08 |
0.09 |
| Rear |
1200 |
41.7 / 70.84 |
0.9 |
16.8 |
1.04 |
0.09 |
Additional Fan Details
| Parameter |
Details |
| Voltage range (V DC) |
5 – 12 |
| Connector |
3-pin |
| Lifespan (h / 25 °C) |
80,000 |
Maximum Fan Installation
| Position |
Supported Fan Sizes (mm) |
| Top |
3 × 120 / 2 × 140 |
| Front |
2 × 120 / 2 × 140 |
| Rear |
1 × 120 |
| Bottom |
– |
| Side panel |
– |
| PSU shroud |
– |
Optional Radiator Installation
| Position |
Supported Radiator Sizes (mm) |
| Top |
120 / 240 / 360 |
| Front |
120 / 140 / 240 / 280 / 360 |
| Rear |
120 |
| Bottom |
– |
PSU Compatibility
| Configuration |
Maximum PSU Length (mm) |
| Excl. bottom fan |
210 |
| Incl. bottom fan |
210 |
Graphics Card Clearance
| Configuration |
Max Length (mm) |
| HDD cage (in height of graphics card) installed |
280 |
| HDD cage (in height of graphics card) removed |
425 |
Drive Bay Capacity
| Bay Type |
Maximum |
Scope of Delivery |
| 5.25″ bays |
2 |
2 |
| 3.5″ slots |
5 |
3 |
| 2.5″ slots |
5 |
2 |
Cooling
| Specification |
Details |
| Max CPU cooler height (mm) |
165 |
| Airflow channel |
Front / Top / Rear |
Lighting
| Feature |
Details |
| RGB LED illumination |
– |
| LEDs synchronizable with RGB controller/MB |
– |
| Expandable RGB controller |
– |
I/O Panel
| Feature |
Details |
| USB 3.2 Gen. 2 Type-C |
– |
| USB 3.2 Gen. 1 |
2 |
| USB 2.0 |
– |
| HD Audio I/O |
Mic + Audio |
| Qi charger / Quick Charge |
– |
Insulation & Damping
| Feature |
Present |
| Top panel insulation mats |
Yes |
| Front panel insulation mats |
Yes |
| Side panel insulation mats |
Yes |
| Anti-vibration decoupled HDD |
Yes |
| Anti-vibration decoupled fan |
– |
| Anti-vibration decoupled PSU |
Yes |
| Anti-vibration decoupled MB tray |
– |
Removable Dust Filters
| Position |
Filter |
| Front |
1 |
| Bottom |
1 |
| Side panel |
– |
Materials
| Component |
Material |
| Top cover |
ABS |
| Front panel |
ABS |
| Side panel |
Steel |
| Side panel window |
– |
| Stands |
ABS |
Scope of Delivery
| Item |
Included |
| Screw set (Drives/Motherboard) |
Yes |
| Rubber rail |
– |
| Standoff |
– |
| LCS bracket |
– |
| HDD slot cover |
– |
| Upper fan bracket |
– |
| HDD panel rubber grommet |
– |
| SSD bracket for PSU shroud |
– |
| LED strips |
– |
| Cable ties |
4 |
Logistics Data
| Specification |
Details |
| Article number |
BG021 |
| Certifications |
CE / RoHs |
| Package dimensions (L × W × H) (mm) |
517 × 288 × 568 |
| Gross weight, package (kg) |
8.74 |
| Pieces per packaging unit |
1 |
