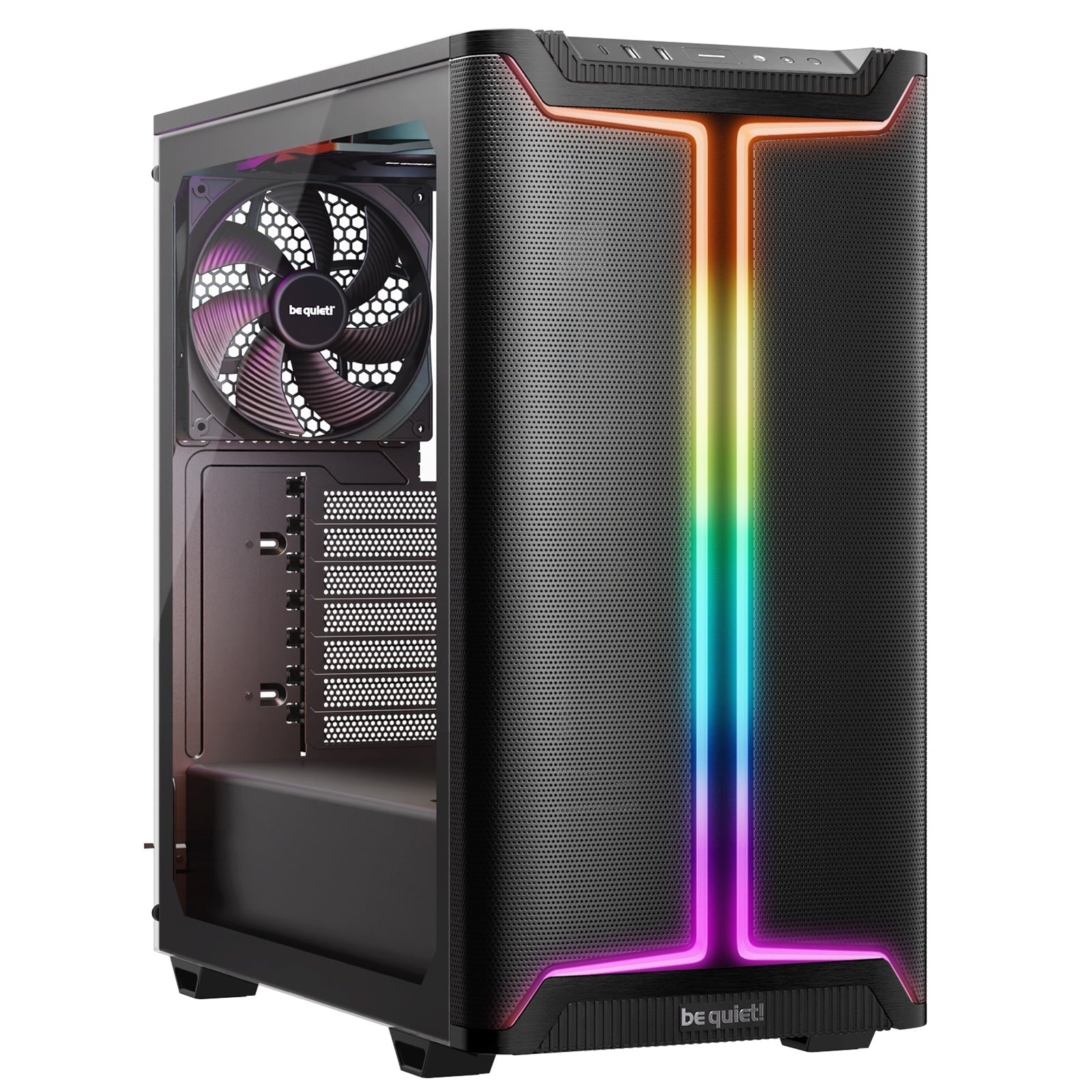

Pure Base 501 DX Black Mid-Tower Case
The Pure Base 501 DX Black is engineered for high cooling efficiency and low noise, making it a strong choice for gaming, content creation, and professional workloads. Its mesh front panel maximizes airflow to keep components cool, while the streamlined interior layout supports clean, organized builds.
Key Features
- High-Airflow Design
- Mesh front panel and ventilated top cover for maximum cooling performance
-
Optimized airflow path to keep components cool during intensive use
-
Quiet, Powerful Cooling
- 3 pre-installed Pure Wings 3 140mm PWM fans
-
Fans designed for quiet operation and effective air pressure
-
ARGB Lighting & Modern Aesthetics
- Dynamic front panel design with elegant ARGB lighting
- Illumination visible inside and outside the case
-
Tempered glass side panel to showcase your build
-
Versatile, Spacious Interior
- Generous space for high-end graphics cards and large CPU coolers
- Optional vertical graphics card installation
-
Support for multiple storage devices
-
Water-Cooling Ready
- Radiator support up to 360mm at the front
-
Additional radiator support at the top and rear
-
Modern Connectivity
- USB 3.2 Gen 2 Type-C front I/O for fast, convenient access
The Pure Base 501 DX Black supports ATX, Micro-ATX, and Mini-ITX motherboards, offering flexibility for a wide range of builds in a compact footprint.
Full Specifications
| Specification | Details |
|---|---|
| Model Number | BGW76 |
| Case Type | Mid-Tower |
| Dimensions (L x W x H) | 450mm x 232mm x 443mm |
| Weight | 7.53 kg |
| Material | Steel, ABS plastic |
| Color | Black |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
Drive Bays
| Type | Quantity |
|---|---|
| 3.5" HDD | 2 |
| 2.5" SSD | 5 |
Expansion
| Feature | Details |
|---|---|
| Expansion Slots | 7 |
Cooling Support
| Position | Fan Support |
|---|---|
| Front | 2 x 140mm / 3 x 120mm |
| Rear | 1 x 140mm / 1 x 120mm |
| Top | 2 x 140mm or 3 x 120mm |
Radiator Support
| Position | Maximum Size |
|---|---|
| Front | Up to 360mm |
| Top | Up to 240mm |
| Rear | Up to 140mm |
Pre-Installed Fans
| Position | Fan Model |
|---|---|
| Top | 1 x Pure Wings 3 140mm PWM |
| Front | 1 x Pure Wings 3 140mm PWM |
| Rear | 1 x Pure Wings 3 140mm PWM |
Front I/O Ports
| Port Type | Quantity |
|---|---|
| USB-C | 1 |
| USB 3.2 | 2 |
| HD Audio | 1 |
| Microphone | 1 |
Compatibility & Other Features
| Feature | Details |
|---|---|
| Power Supply Support | ATX PS/2 |
| Maximum GPU Length | 369mm |
| Maximum CPU Cooler Height | 190mm |
| Cable Management Space | 25mm behind motherboard tray |
| Dust Filters | Front, top, bottom (removable) |
| Side Panel | Tempered glass |
The Pure Base 501 DX Black delivers a balance of cooling performance, quiet operation, and sleek styling, making it well-suited for gamers, PC enthusiasts, and professionals seeking a high-performance, visually appealing chassis.
