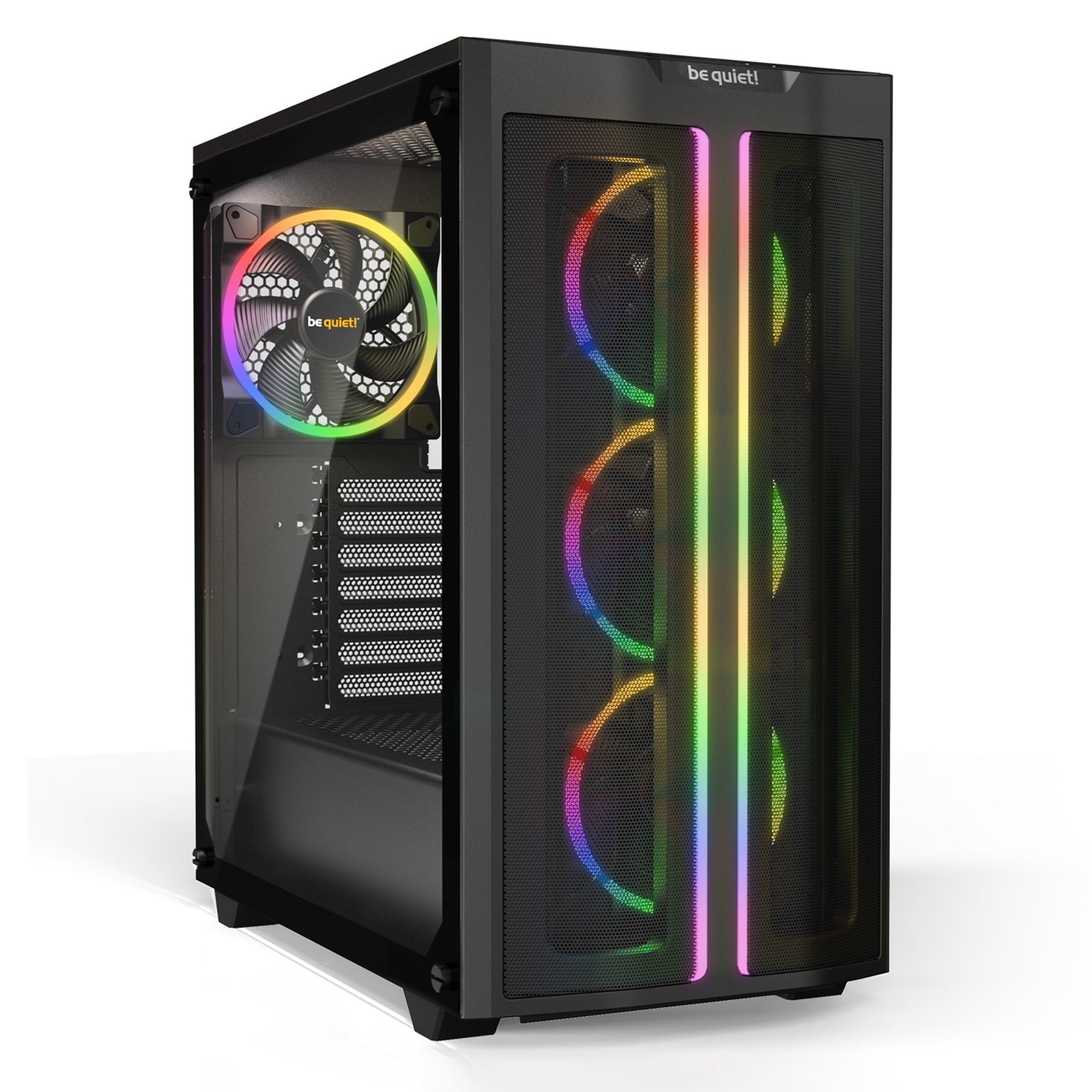

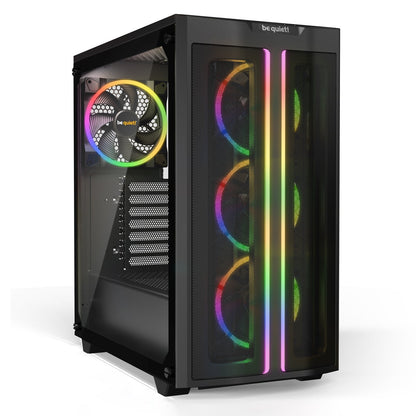

be quiet! Pure Base 500 FX – Black
Impressive ARGB Lighting, Exceptional Airflow
The be quiet! Pure Base 500 FX Black combines striking ARGB illumination with high airflow design to deliver powerful cooling performance and a clean, modern look.
Key Features
- ARGB lighting on fans, front panel, and inside the case
- Multiple lighting colors and modes for an individualized look
- 4 pre-installed Light Wings PWM fans for high airflow and quiet operation
- ARGB-PWM-Hub for up to 6 ARGB components and 6 PWM fans
- High-airflow intake front panel and airflow-optimized top cover
- Front I/O with USB 3.2 Gen. 2 Type-C
- Supports radiators up to 360 mm
- 3-year manufacturer’s warranty
Impressive ARGB Lighting
Light Wings PWM fans provide ARGB illumination at the front and rear. A subtly lit ring at the back combined with a bright ring at the front creates a standout appearance from every angle.
Additional ARGB LEDs at the front and inside the case offer multiple colors and modes to customize your build both internally and externally. Lighting can be optionally synchronized with your motherboard or ARGB controller.
Optimized Airflow & Cooling Performance
With 4 pre-installed PWM fans, the Pure Base 500 FX Black is engineered for high cooling performance. The Light Wings PWM fans feature 7 airflow-optimized blades that:
- Reduce noise-generating turbulence
- Deliver strong airflow, even in demanding system configurations
The extremely permeable front panel is ideal for performance-focused builds, particularly water-cooled systems. An airflow-optimized top cover further underlines the case’s performance orientation.
Removable dust filters on the front panel and bottom simplify cleaning and help maintain optimal airflow.
ARGB-PWM Hub: One Hub, Many Possibilities
The integrated ARGB-PWM-Hub allows you to synchronize:
- Up to 6 PWM fans
- Up to 6 ARGB components
Preinstalled on the backside of the motherboard tray, it supports clean cable management and a neat interior.
Modern Front I/O
Stay up to date with a front I/O panel that includes:
- USB 3.2 Gen. 2 Type-C port for latest hardware
- A dedicated switch to control interior and exterior LEDs
Spacious, Sophisticated Interior
The Pure Base 500 FX Black offers generous space to build a high-end system:
- Supports high-end graphics cards
- Supports CPU coolers up to 190 mm in height
- Supports radiators up to 360 mm at the front
- Top area also supports additional fans or radiators up to 240 mm
Storage & Cable Management
This case provides flexible storage options and clean routing:
- Install up to 4 SSDs in total
- 2 SSDs can be mounted for prominent viewing behind the window panel
- Excellent cable routing options help conceal unwanted cables and maintain a tidy interior
Functional PSU Shroud
The PSU shroud keeps your build looking clean by covering the PSU and cables. It features:
- Double HDD cage with decoupled mountings to reduce vibrations
- Repositionable HDD cage to accommodate front radiators up to 360 mm
- PSU installation from the rear using the provided PSU bracket
Tempered Glass Side Panel
Showcase your components with the fully windowed side panel:
- High-quality tinted tempered glass
- Black painted side bars for a refined look
Technical Specifications
General
| Specification | Detail |
|---|---|
| Model | Pure Base 500 FX |
| Color option | Black |
| Motherboard compatibility | ATX / M-ATX / Mini-ITX |
| Case size excl. stands (L × W × H) (mm) | 450 × 232 × 443 |
| Case size incl. stands (L × W × H) (mm) | 450 × 232 × 463 |
| PSU form factor | ATX PS/2 |
| Weight (kg) | 8.0 |
| Expansion slots | 7 |
Pre-Installed Fans
| Position | Model | Size (mm) |
|---|---|---|
| Front | 3 × Light Wings PWM | 120 × 120 × 25 |
| Rear | 1 × Light Wings PWM | 140 × 140 × 25 |
| Top | – | – |
Fan Performance (at 100% PWM / 12 V)
| Parameter | 120 mm Fan | 140 mm Fan |
|---|---|---|
| Fan speed (rpm) | 1700 | 1500 |
| Airflow (CFM / m³/h) | 41.51 / 70.53 | 56 / 95.14 |
| Air pressure (mm H₂O) | 1.66 | 1.49 |
| Noise level (dB(A)) | 20.6 | 23.3 |
| Voltage range (V DC) | 5 – 13.2 | 5 – 13.2 |
| Input power (W) | 4.56 | 3.84 |
| Input current (A) | 0.07 | 0.08 |
| Connector | 4-pin PWM | 4-pin PWM |
| Lifespan (h / 25°C) | 60,000 | 60,000 |
| Fan controller | PWM and ARGB Hub | PWM and ARGB Hub |
Maximum Fan Installation
| Position | Supported Fans (mm) |
|---|---|
| Top | 2 × 120 / 2 × 140 |
| Front | 3 × 120 / 2 × 140 |
| Rear | 1 × 140 |
| Bottom | – |
| Side panel | – |
| PSU shroud | – |
Optional Radiator Installation
| Position | Supported Radiator Sizes (mm) |
|---|---|
| Top | 120 / 240 |
| Front | 120 / 140 / 240 / 280 / 360 |
| Rear | 120 / 140 |
| Bottom | – |
PSU Compatibility
| Configuration | Max PSU Length (mm) |
|---|---|
| Excluding bottom fan | 258 |
| Including bottom fan | 225 |
Graphics Card Clearance
| HDD Cage Configuration | Max Length (mm) |
|---|---|
| HDD cage (in height of graphics card) installed | 369 |
| HDD cage (in height of graphics card) removed | 369 |
Drive Bay Capacity
| Drive Type | Max Slots | Included Slots |
|---|---|---|
| 5.25" | – | – |
| 3.5" | 2 | 2 |
| 2.5" | 4 | 4 |
Cooling
| Specification | Detail |
|---|---|
| Max CPU cooler height (mm) | 190 |
| Airflow channel | Front / Top / Rear |
Lighting
| Specification | Detail |
|---|---|
| RGB LED illumination | Yes |
| LEDs synchronizable with controller/MB | Yes |
| Expandable RGB controller | – |
I/O Panel
| Port / Feature | Quantity / Detail |
|---|---|
| USB 3.2 Gen. 2 Type-C | 1 |
| USB 3.2 Gen. 1 | 1 |
| USB 2.0 | – |
| HD Audio I/O | Mic + Audio |
| Qi charger / Quick Charging | – |
Insulation & Damping
| Feature | Detail |
|---|---|
| Top panel insulation mats | – |
| Front panel insulation mats | – |
| Side panel insulation mats | Yes |
| Anti-vibration decoupled HDD | Yes |
| Anti-vibration decoupled fan | – |
| Anti-vibration decoupled PSU | Yes |
| Anti-vibration decoupled motherboard tray | – |
Removable Dust Filters
| Position | Filter |
|---|---|
| Front | 1 |
| Bottom | 1 |
| Side | – |
Materials
| Component | Material |
|---|---|
| Top cover | ABS |
| Front panel | ABS |
| Side panel | Steel |
| Side panel window | 4 mm tempered glass |
| Stands | ABS |
Scope of Delivery
| Item | Included |
|---|---|
| Screw set (Drives/Motherboard) | Yes |
| Rubber rail | – |
| Standoffs | – |
| LCS bracket | 0 |
| HDD slot cover | 0 |
| Upper fan bracket | 0 |
| HDD panel rubber grommet | – |
| SSD bracket for PSU shroud | 0 |
| LED strips | – |
| Cable ties | 6 (Velcro) / 4 (Velcro) |
Logistics
| Specification | Detail |
|---|---|
| Article number | BGW43 |
| Certifications | CE / RoHs |
| Package dimensions (L × W × H) (mm) | 510 × 285 × 494 |
| Gross weight, package (kg) | 9.2 |
| Pieces per packaging unit | 1 |
