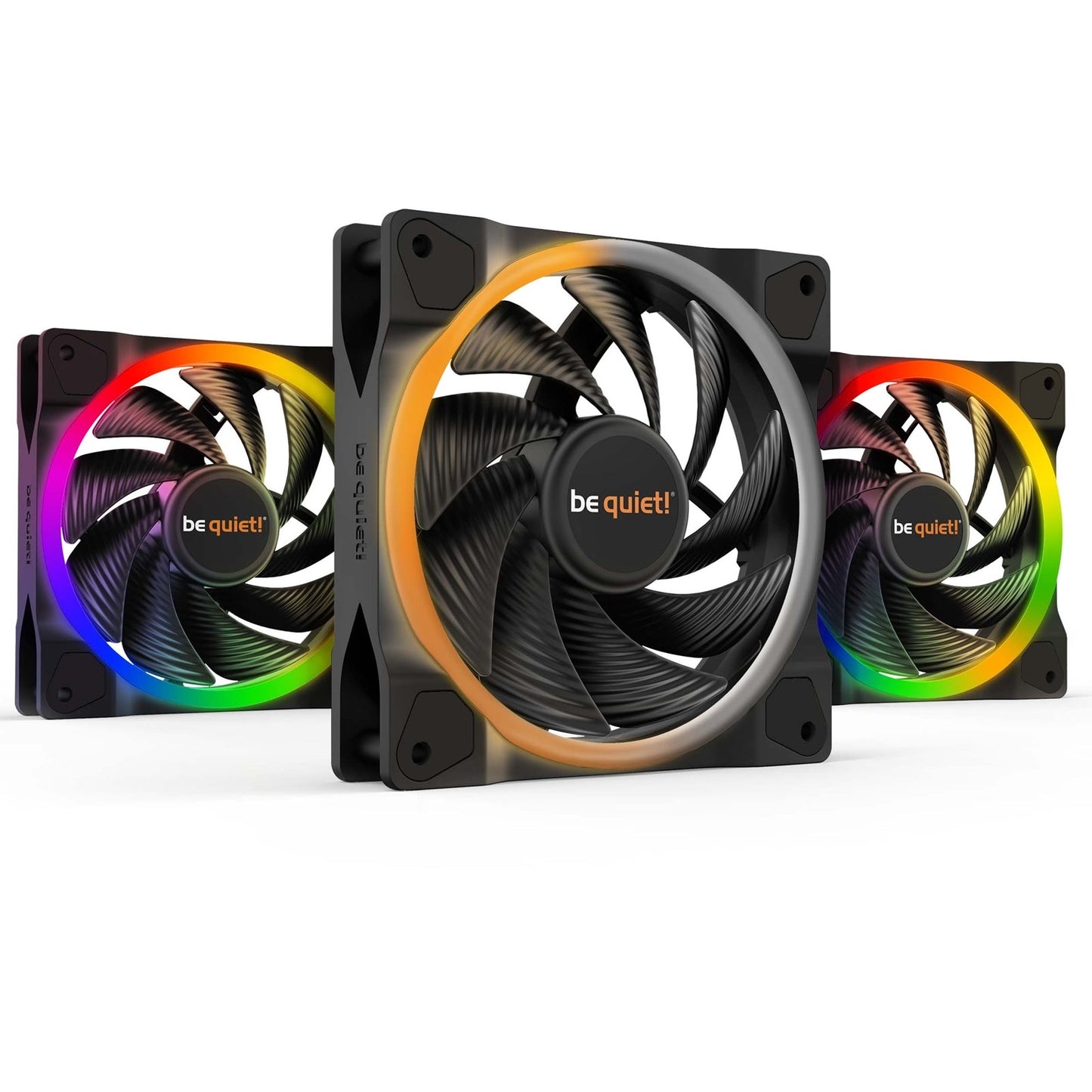

LIGHT WINGS 120mm PWM High-Speed Triple Pack
Impressive Lighting, Superior Cooling
The Light Wings 120mm PWM high-speed Triple Pack delivers vibrant ARGB illumination, strong cooling performance, and quiet operation in one complete package.
- 3 x 120mm PWM high-speed case fans included
- ARGB lighting on both front and rear sides
- 18 ARGB LEDs with multiple colors and modes
- Includes ARGB Hub for synchronizing up to 6 ARGB components
- 9 silence-optimized fan blades for high pressure and reduced turbulence
- Remarkable performance-to-noise ratio: 31 dB(A) at 2,500 rpm
If you want quiet case fans with an impressive look from every angle, the Light Wings 120mm PWM high-speed Triple Pack is designed for you.
Impressive ARGB Lighting
Lots of illumination possibilities
Light Wings 120mm PWM high-speed fans feature ARGB lighting on both the front and rear.
- A subtly lit ring on the back
- A brighter ring on the front
Combined, they create a magnificent appearance from any viewing angle. With 18 ARGB LEDs per fan, you have extensive options to individualize your PC build.
Three Fans, One ARGB Hub
Synchronize up to 6 ARGB components
The included ARGB Hub lets you connect and synchronize up to 6 ARGB components simultaneously.
- User-friendly installation
- Elegant all-black design to suit any PC case
- Can be mounted like an SSD or placed anywhere using the supplied double-coated adhesive tape
High Pressure for Radiators and Heatsinks
Light Wings 120mm PWM high-speed delivers a high air pressure of up to 2.6 mm/H₂O, making it suitable for water-cooled and air-cooled systems.
- 9 airflow-optimized fan blades
- Provides strong air pressure for demanding configurations
Quiet Operation
Acclaimed low noise level
A highly optimized fan frame and impeller enable silent operation.
- Noise level of just 31 dB(A) at maximum speed
This proves that the lighting is a powerful addition, not a compromise, to silent and strong cooling performance. All features combined make Light Wings 120mm PWM high-speed ideal for silent show cases and gaming systems.
Variable Fan Speed with PWM
Adjust speed and noise as needed
Pulse Width Modulation (PWM) support allows compatible 4-pin controllers, including many motherboards, to intelligently adjust fan speed and noise level.
- Ramp up cooling when needed
- Run in maximum quiet mode when system load is low
Specifications
General Data
| Feature | Detail |
|---|---|
| Model | Light Wings 120mm PWM high-speed Triple Pack |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | ARGB LED |
| Fan speed @ 100% PWM / 12V (rpm) | 2,500 |
| Noise level @ 100% PWM / 12V (dB(A)) | 31 |
| Air flow @ 100% PWM / 12V (CFM / m³/h) | 52.3 / 88.86 |
| Air pressure @ 100% PWM / 12V (mm H₂O) | 2.6 |
Mechanical Specifications
| Feature | Detail |
|---|---|
| Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
| Weight incl. fixed cables (g) | 210 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | Yes |
Cables / Connectors
| Feature | Detail |
|---|---|
| Daisy chain for lighting signal | Yes |
| Lighting connector | 5V 3-pin ARGB |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | - |
Performance / Noise
| Feature | Detail |
|---|---|
| Air flow @ 100% PWM / 12V (CFM / m³/h) | 52.3 / 88.86 |
| Air pressure @ 100% PWM / 12V (mm H₂O) | 2.6 |
| Noise level @ 100% PWM / 12V (dB(A)) | 31 |
| Lifespan (h / 25°C) | 60,000 |
Electrical Specifications
| Feature | Detail |
|---|---|
| Rated voltage DC (V) | 12 |
| Operating voltage DC (V) | 5 – 13.2 |
| Current consumption (A) | 0.12 |
| Safety current (A) | 0.45 |
| Input power (W) | 5.4 |
| Rated current LED (A) | 0.6 |
Accessories
| Accessory | Included |
|---|---|
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 16 |
| Push pins | - |
| Hard plastic washer | - |
| Others | ARGB Hub |
Safety Certification
| Feature | Detail |
|---|---|
| Approvals | CE / RoHs / RU / WEEE |
Environmental Directives
| Feature | Detail |
|---|---|
| RoHs | - |
| Triman | - |
Logistics Data
| Feature | Detail |
|---|---|
| Article number | BL077 |
| Package dimensions (L x W x H), (mm) | 172 x 133 x 86.5 |
| Gross weight, package (kg) | 0.864 |
