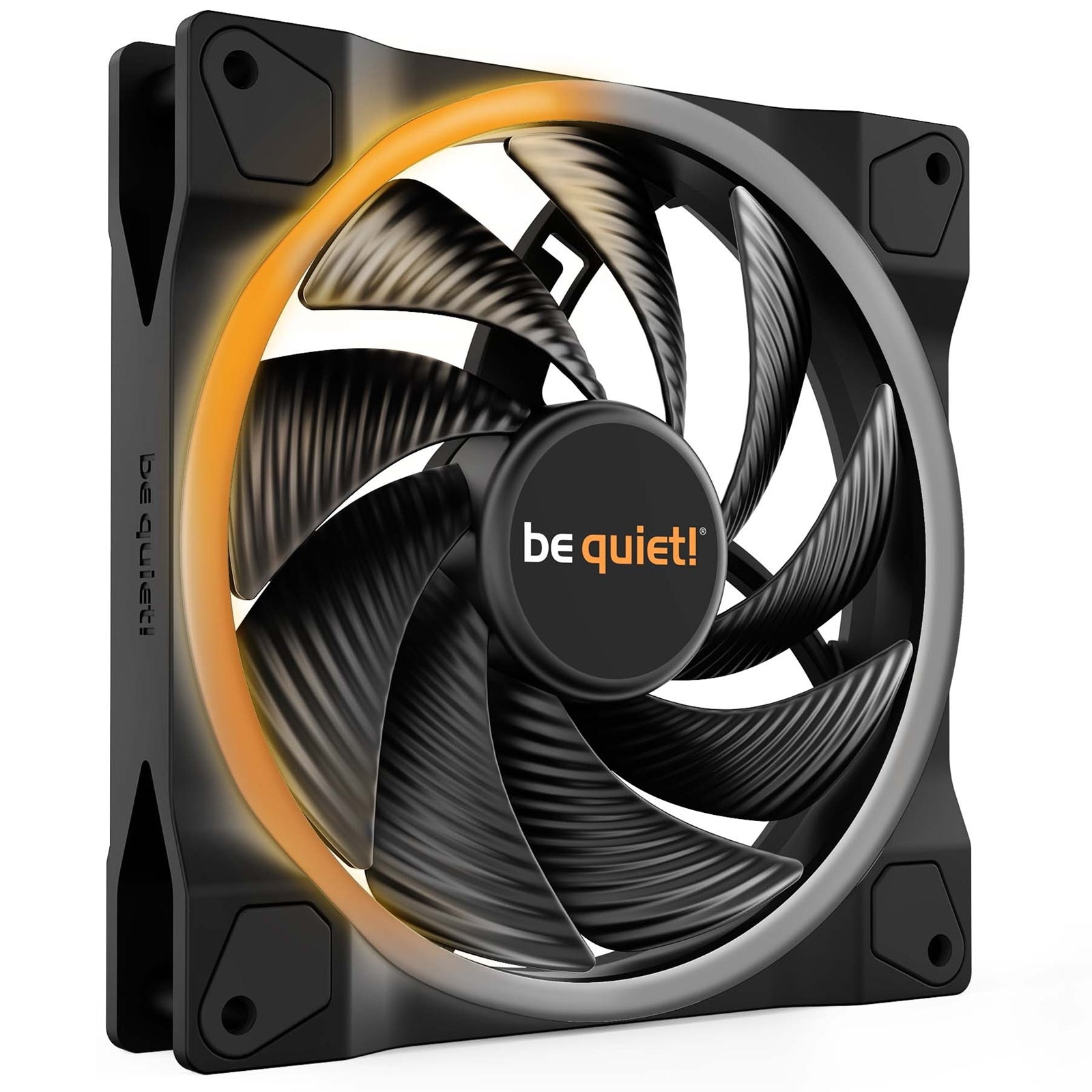

Light Wings 140mm PWM High-Speed Fan – Impressive Lighting, Superior Cooling
The Light Wings 140mm PWM high-speed fan delivers vivid ARGB illumination, strong cooling performance, and quiet operation in one premium package.
Key Features
- Dual-Sided ARGB Lighting
- ARGB lighting on both front and rear
- Subtly lit rear ring paired with a bright front ring for a striking look from any angle
-
20 ARGB LEDs provide multiple colors and modes for a highly individual PC build
-
Optimized for High Pressure
- 9 silence-optimized fan blades designed for high air pressure and reduced turbulence
- Air pressure up to 2.3 mm H₂O, ideal for demanding radiator and heatsink configurations
-
Suitable for both water-cooled and air-cooled systems
-
Quiet, Powerful Operation
- Noise level of just 31 dB(A) at 2,200 rpm
- Highly optimized impeller supports powerful cooling with low noise
-
Perfect for silent show cases and gaming systems
-
PWM Fan Speed Control
- 4-pin PWM connector for intelligent speed control via compatible controllers or motherboards
-
Automatically adjusts fan speed and noise level based on system demands
-
Durable and Reliable
- Long-life rifle-bearing with an operating lifetime of 60,000 hours
- Backed by a 3-year manufacturer’s warranty
If you need a high-speed 140mm fan that looks impressive from every angle and delivers efficient, quiet cooling, the Light Wings 140mm PWM high-speed is an excellent choice.
Specifications
General Data
| Specification | Value |
|---|---|
| Model | Light Wings 140mm PWM high-speed |
| Dimensions (mm) | 140 |
| Color option | Black |
| Lighting | ARGB LED |
| Fan speed @ 100% PWM / 12V (rpm) | 2,200 |
| Noise level @ 100% PWM / 12V (dB(A)) | 31 |
| Air flow @ 100% PWM / 12V (CFM / m³/h) | 71.7 / 121.82 |
| Air pressure @ 100% PWM / 12V (mm H₂O) | 2.3 |
Mechanical Specifications
| Specification | Value |
|---|---|
| Dimensions (L x W x H), (mm) | 140 x 140 x 25 |
| Weight incl. fixed cables (g) | 251 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | Yes |
Cables / Connectors
| Specification | Value |
|---|---|
| Daisy chain for lighting signal | Yes |
| Lighting connector | 5V 3-pin ARGB |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | - |
Performance / Noise
| Specification | Value |
|---|---|
| Air flow @ 100% PWM / 12V (CFM / m³/h) | 71.7 / 121.82 |
| Air pressure @ 100% PWM / 12V (mm H₂O) | 2.3 |
| Noise level @ 100% PWM / 12V (dB(A)) | 31 |
| Lifespan (h / 25°C) | 60,000 |
Electrical Specifications
| Specification | Value |
|---|---|
| Rated voltage DC (V) | 12 |
| Operating voltage DC (V) | 5 – 13.2 |
| Current consumption (A) | 0.16 |
| Safety current (A) | 0.39 |
| Input power (W) | 4.68 |
| Rated current LED (A) | 0.67 |
Accessories
| Accessory | Included |
|---|---|
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | - |
| Hard plastic washer | - |
| Others | - |
Safety Certification
| Specification | Value |
|---|---|
| Approvals | CE / RoHs / RU / WEEE |
Environmental Directives
| Specification | Value |
|---|---|
| RoHs | - |
| Triman | - |
Logistics Data
| Specification | Value |
|---|---|
| Article number | BL075 |
| Package dimensions (L x W x H), (mm) | 173 x 153 x 29.5 |
| Gross weight, package (kg) | 0.334 |
