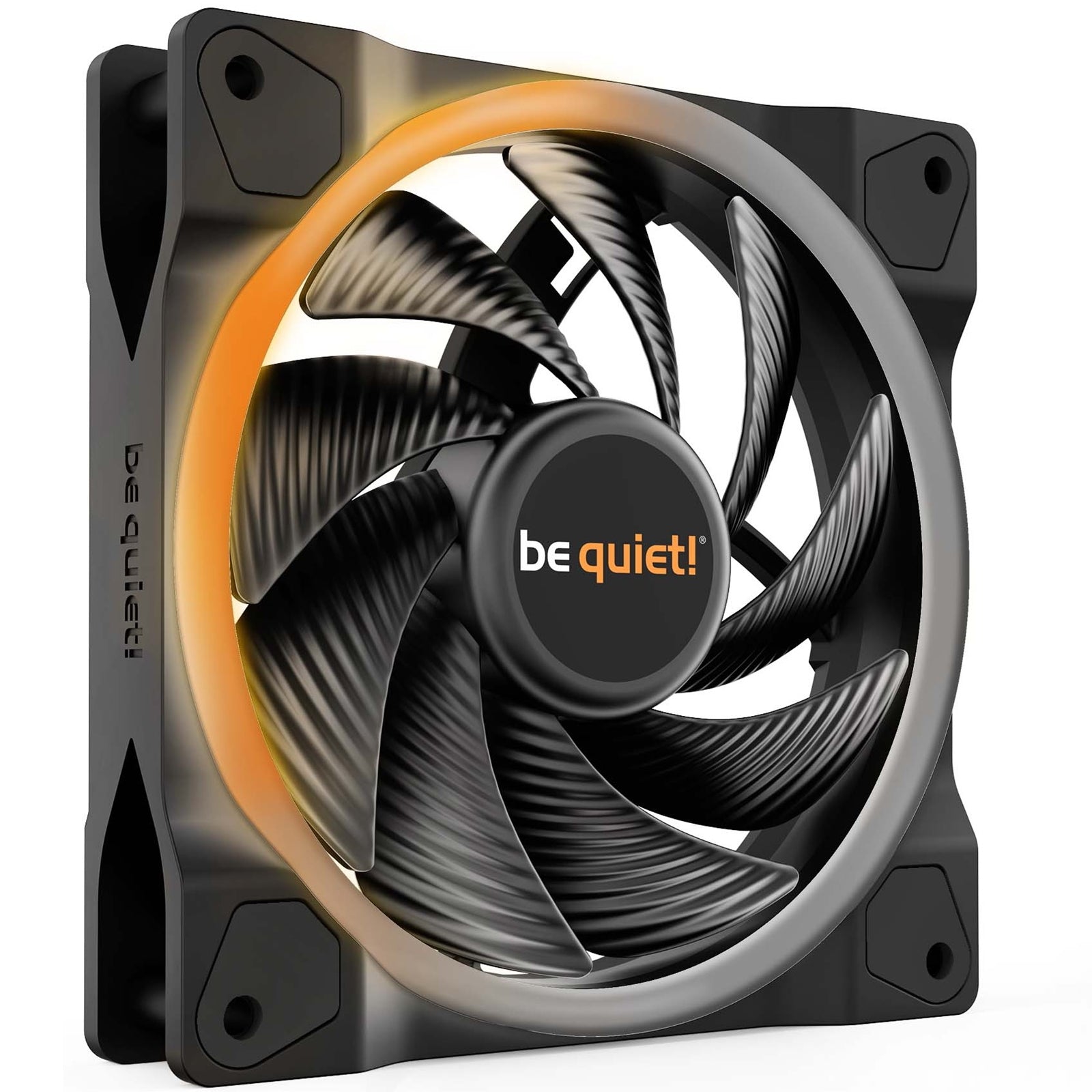

LIGHT WINGS 120mm PWM High-Speed ARGB Fan
Impressive lighting, superior cooling
Light Wings 120mm PWM high-speed delivers vibrant illumination, strong cooling performance, and quiet operation. With ARGB lighting on both front and rear, this fan is designed to look as good as it performs.
Key Features
- Dual-sided ARGB lighting on front and rear
- 18 ARGB LEDs with multiple colors and modes for an individual look
- 9 silence-optimized fan blades designed for high pressure and reduced turbulence
- Remarkable performance-to-noise ratio with just 31 dB(A) at 2,500 rpm
- Rifle-bearing technology with an operating lifetime of 60,000 hours
- 3-year manufacturer’s warranty
If you want a high-performance fan with an impressive appearance from every angle, Light Wings 120mm PWM high-speed is an ideal choice.
Impressive ARGB Lighting
Lots of illumination possibilities
- ARGB lighting at both the front and rear
- Subtly lit ring at the back and a bright ring at the front
- 18 ARGB LEDs for extensive customization of your PC build
This dual-ring design ensures a magnificent look from any viewing angle.
Optimized for Radiators and Heatsinks
Fan blades optimized for high pressure
- Air pressure up to 2.6 mm H₂O
- Suitable for both water-cooled and air-cooled systems
- 9 airflow-optimized blades provide strong air pressure for demanding configurations
Quiet Operation
Low noise level with powerful performance
- Highly optimized impeller for quiet running
- Noise level of 31 dB(A) at maximum fan speed
- Lighting is an addition to, not a replacement for, silent and powerful operation
These characteristics make Light Wings 120mm PWM high-speed well-suited for silent show cases and gaming systems.
PWM Fan Speed Control
Variable speed and noise level
- 4-pin PWM connector for intelligent speed control
- Compatible controllers (including many motherboards) can:
- Increase fan speed for higher cooling when needed
- Reduce fan speed for maximum quiet when demand is low
Specifications
General Data
| Specification | Details |
|---|---|
| Model | Light Wings 120mm PWM-high-speed |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | ARGB LED |
| Fan speed @ 100% PWM / 12V (rpm) | 2,500 |
| Noise level @ 100% PWM / 12V (dB(A)) | 31 |
| Air flow @ 100% PWM / 12V (CFM / m³/h) | 52.3 / 88.86 |
| Air pressure @ 100% PWM / 12V (mm H₂O) | 2.6 |
Mechanical Specifications
| Specification | Details |
|---|---|
| Dimensions (L x W x H) (mm) | 120 x 120 x 25 |
| Weight incl. fixed cables (g) | 210 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | Yes |
Cables / Connectors
| Specification | Details |
|---|---|
| Daisy chain for lighting signal | Yes |
| Lighting connector | 5V 3-pin ARGB |
| Fan connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | - |
Performance / Noise
| Specification | Details |
|---|---|
| Air flow @ 100% PWM / 12V (CFM / m³/h) | 52.3 / 88.86 |
| Air pressure @ 100% PWM / 12V (mm H₂O) | 2.6 |
| Noise level @ 100% PWM / 12V (dB(A)) | 31 |
| Lifespan (h / 25°C) | 60,000 |
Electrical Specifications
| Specification | Details |
|---|---|
| Rated voltage DC (V) | 12 |
| Operating voltage DC (V) | 5 – 13.2 |
| Current consumption (A) | 0.12 |
| Safety current (A) | 0.45 |
| Input power (W) | 5.4 |
| Rated current LED (A) | 0.6 |
Accessories
| Accessory | Included |
|---|---|
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | - |
| Hard plastic washer | - |
| Others | - |
Safety Certification
| Specification | Details |
|---|---|
| Approvals | CE / RoHs / RU / WEEE |
Environmental Directives
| Specification | Details |
|---|---|
| RoHs | - |
| Triman | - |
Logistics Data
| Specification | Details |
|---|---|
| Article number | BL073 |
| Package dimensions (L x W x H) (mm) | 153 x 133 x 29.5 |
| Gross weight, package (kg) | 0.277 |
