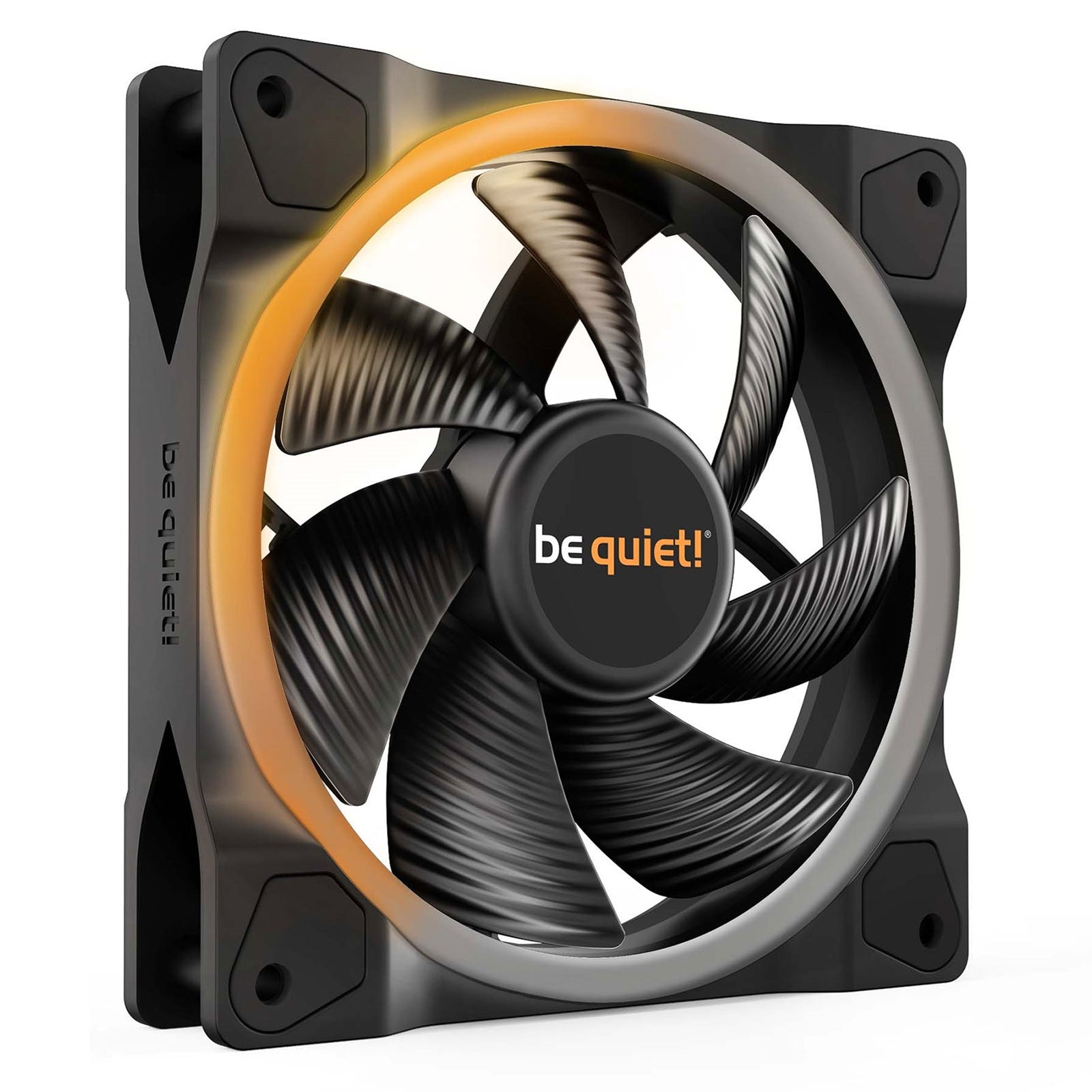

Light Wings 120mm PWM ARGB Case Fan – Impressive Lighting, Superior Cooling
The Light Wings 120mm PWM delivers vivid ARGB illumination, strong cooling performance, and quiet operation, making it an ideal choice for visually striking and efficient PC builds.
Key Features
- Dual-Sided ARGB Lighting
- ARGB illumination on both the front and rear
- Subtly lit rear ring combined with a bright front ring for a stunning look from every angle
-
18 ARGB LEDs enable multiple colors and modes for a highly individualized PC appearance
-
High Airflow, Low Noise
- 7 silence-optimized fan blades designed for high airflow
- Reduced turbulence to help minimize noise
-
Very quiet operation with a maximum noise level of just 20.6 dB(A)
-
Durable and Reliable
- Long-life rifle bearing with an operating lifetime of up to 60,000 hours
-
Backed by a 3-year manufacturer’s warranty
-
PWM Speed Control
- 4-pin PWM connector for intelligent speed control via compatible controllers or motherboards
- System can automatically ramp up cooling when needed or reduce speed for quiet operation
If you want a quiet case fan that looks impressive from every angle, the Light Wings 120mm PWM is designed to be your fan of choice.
Product Highlights
Impressive ARGB Lighting
Light Wings 120mm PWM offers ARGB lighting at both the front and rear. The combination of a subtly illuminated ring at the back and a bright ring at the front creates a striking appearance in any orientation. With 18 ARGB LEDs, there are many options to personalize and enhance your PC build.
Optimized for Case Cooling
Designed with maximum airflow in mind, this fan is well-suited for case configurations that demand strong cooling performance. The seven airflow-optimized blades help reduce noise-generating turbulence while still delivering the cooling capability needed even in demanding systems.
Very Quiet Operation
A highly optimized impeller supports the low noise level that be quiet! is known for. At a maximum of 20.6 dB(A) at full speed, the Light Wings 120mm PWM shows that the lighting is an addition to, not a compromise on, silent and powerful operation.
PWM Fan Speed Control
Pulse Width Modulation (PWM) support allows compatible 4-pin fan controllers and many motherboards to dynamically adjust fan speed and therefore noise level. This lets your system respond to thermal demands by increasing cooling when required and maintaining quiet operation when it’s not.
Specifications
General Data
| Specification | Value |
|---|---|
| Model | Light Wings 120mm PWM |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | ARGB LED |
| Fan speed @ 100% PWM / 12V (rpm) | 1700 |
| Noise level @ 100% PWM / 12V (dB(A)) | 20.6 |
| Air Flow @ 100% PWM / 12V (CFM / m³/h) | 41.51 / 70.53 |
| Air Pressure @ 100% PWM / 12V (mm H₂O) | 1.66 |
Mechanical Specifications
| Specification | Value |
|---|---|
| Dimensions (L x W x H) (mm) | 120 x 120 x 25 |
| Weight incl. fixed cables (g) | 200 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | Yes |
Cables / Connectors
| Specification | Value |
|---|---|
| Daisy chain for lighting signal | Yes |
| Lighting connector | 5V 3-pin ARGB |
| Fan connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | - |
Performance / Noise
| Specification | Value |
|---|---|
| Air Flow @ 100% PWM / 12V (CFM / m³/h) | 41.51 / 70.53 |
| Air Pressure @ 100% PWM / 12V (mm H₂O) | 1.66 |
| Noise level @ 100% PWM / 12V (dB(A)) | 20.6 |
| Lifespan (h / 25°C) | 60,000 |
Electrical Specifications
| Specification | Value |
|---|---|
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 – 13.2 |
| Current consumption (A) | 0.07 |
| Safety current (A) | 0.38 |
| Input power (W) | 4.56 |
| Rated Current LED (A) | 0.6 |
Accessories
| Accessory | Included |
|---|---|
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | - |
| Hard plastic washer | - |
| Others | - |
Safety Certification
| Specification | Value |
|---|---|
| Approvals | CE / RoHs / RU / WEEE |
Environmental Directives
| Specification | Value |
|---|---|
| RoHs | - |
| Triman | - |
Logistics Data
| Specification | Value |
|---|---|
| Article number | BL072 |
| Package dimensions (L x W x H) (mm) | 153 x 133 x 29.5 |
| Gross weight, package (kg) | 0.267 |
