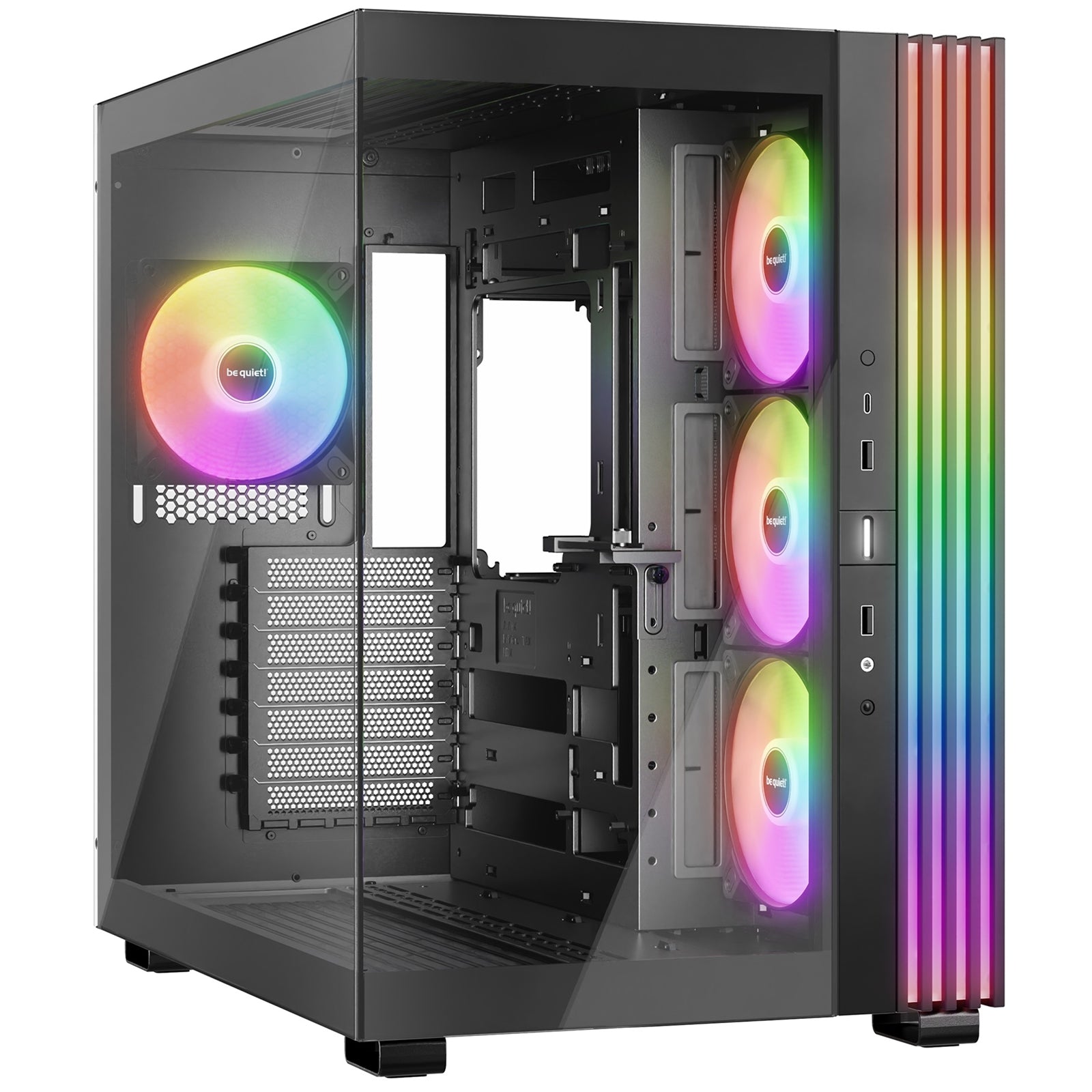

be quiet! Light Base 600 LX – Exceptional From Every Angle
Be prepared for virtually any PC component and turn the Light Base 600 LX with ARGB fans into your creative showcase.
Key Features
-
Fully windowed front and side panel
Enjoy a stunning panoramic view of all your PC components. -
Impressive ARGB illumination
Massive ARGB LED strip and integrated ARGB elements deliver eye-catching lighting effects from every angle. -
High airflow, quiet operation
Includes 4 Light Wings LX 120mm PWM fans for powerful yet quiet cooling: - Side: 3x Light Wings LX Reversed 120mm PWM
-
Rear: 1x Light Wings LX 120mm PWM
-
Ultra-flexible layout
Can be switched to inverted or horizontal layout in literal seconds thanks to intuitive handling. -
Spacious cooling support
Designed for up to two 360mm radiators at the same time and an ATX motherboard. -
Advanced VGA support
Features an advanced VGA holder that helps prevent graphics card sag. -
Backside connector support
Compatible with motherboards featuring backside connector design. -
Integrated ARGB & fan control
Includes 2 ARGB and fan hubs with 12 connectors in total for clean, centralized cable management and lighting control. -
Modern front I/O
State-of-the-art front panel with: - ARGB controller button
- USB 3.2 Gen 2 Type C
- Additional USB and audio connections
Specifications
General
| Specification | Detail |
|---|---|
| Case type | Midi-Tower |
| Motherboard compatibility | ATX, M-ATX, Mini-ITX |
| PSU format | PS2 ATX (not included) |
| Dimensions (L x W x H) | 450 x 305 x 435 mm |
| Material | Steel (SGCC), ABS, Glass |
| Weight | 12.1 kg (net) / 14.6 kg (gross) |
Front I/O Panel
| Specification | Detail |
|---|---|
| USB | 1x USB 3.2 Gen 2 Type C |
| 2x USB 3.2 Type A | |
| Audio | HD Audio (combined) |
| Controls | ARGB controller |
| Reset button | |
| Power button |
Expansion & Storage
| Specification | Detail |
|---|---|
| PCI slots | 7 |
| Maximum PCIe slots with vertical GPU | 4 |
| Drive bays | up to 4x 2.5" (2 included) |
| up to 2x 3.5" (1 included) |
Cooling – Pre-Installed Fans
| Position | Fans |
|---|---|
| Side | 3x Light Wings LX Reversed 120mm PWM |
| Rear | 1x Light Wings LX 120mm PWM |
Cooling – Fan Support (Maximum)
| Position | Maximum Fans |
|---|---|
| Top | 2x 140mm or 3x 120mm |
| Side | 3x 120mm |
| Bottom | 2x 140mm or 3x 120mm |
| Rear | 1x 120mm |
Liquid Cooling – Radiator Support
| Position | Compatible Radiator Sizes (mm) |
|---|---|
| Top | 120 / 140 / 240 / 280 / 360 |
| Side | 120 / 240 |
| Bottom | 120 / 140 / 240 / 280 / 360 |
| Rear | 120 |
Clearance
| Component | Maximum Dimension |
|---|---|
| CPU cooler | up to 170 mm |
| GPU length | up to 400 mm |
| PSU length | up to 200 mm |
| GPU with HDD cage at GPU height | 400 mm |
ARGB
| Specification | Detail |
|---|---|
| ARGB connector | 3-pin |
With its panoramic glass panels, advanced ARGB lighting, flexible layouts, and extensive cooling options, the be quiet! Light Base 600 LX is built to showcase powerful, visually striking PC builds.
