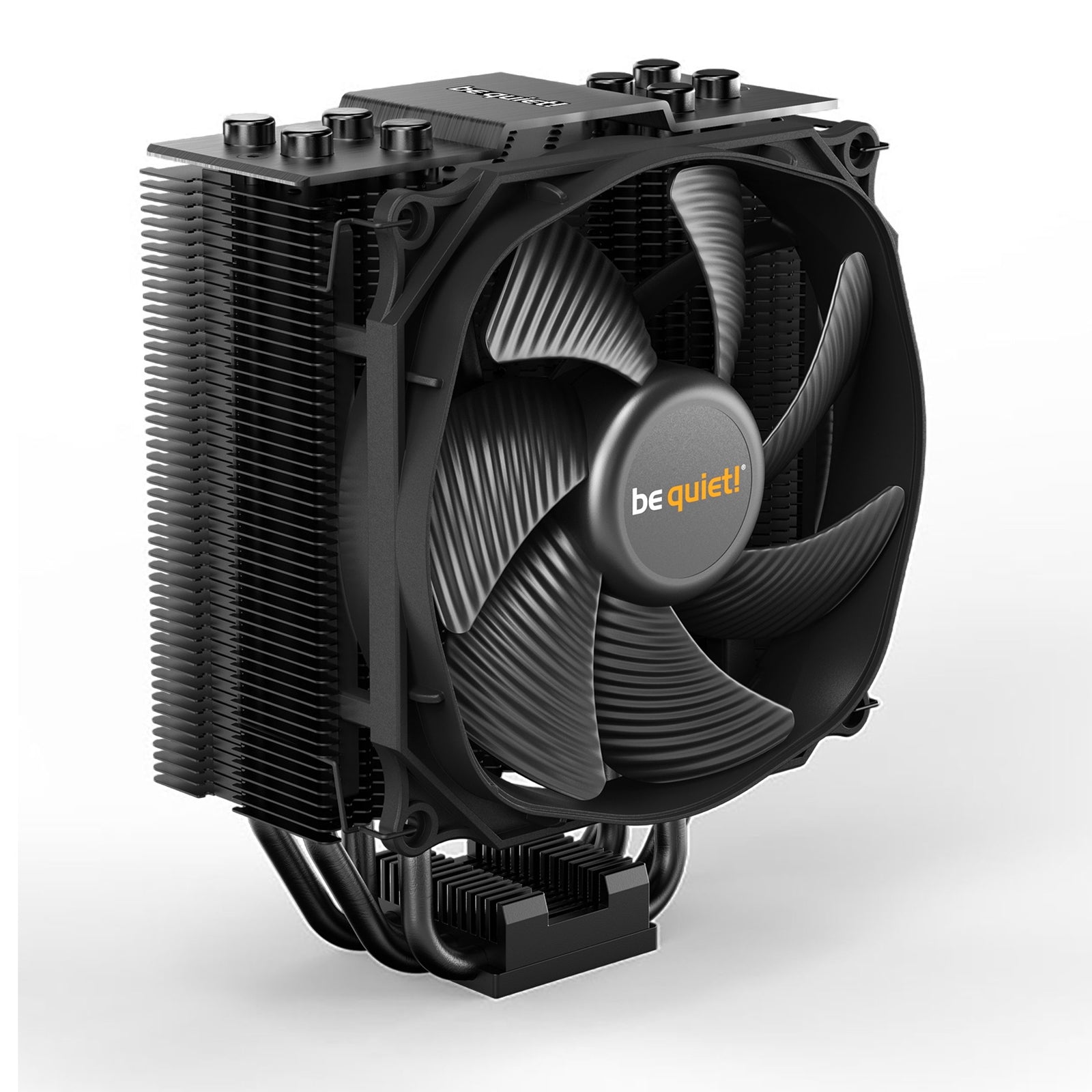

Dark Rock Slim CPU Cooler – No-Compromise Silence and Performance
The Dark Rock Slim delivers exceptionally high CPU cooling performance of 180W TDP with virtually inaudible operation, making it ideal for high-end builds with limited space.
- Compact construction that does not block memory slots
- Virtually inaudible Silent Wings 3 120mm PWM fan
- Only 23.6 dB(A) at maximum fan speed
- 4 high-performance copper heat pipes
- Airflow-optimized, wave-contoured cooling fins
- Special black coating with ceramic particles for optimal heat transfer
- Optional support for an additional 120mm retail fan
- Easy-to-install black mounting kit, mountable from above
- Brushed aluminum top cover with diamond-cut finish
Compact Construction
Powerful cooling in small spaces
The compact design of the Dark Rock Slim achieves excellent heat dissipation in small spaces, making it a perfect solution for high-end systems with limited clearance. Its thoughtful construction ensures that no memory slots are blocked.
Virtually Inaudible Operation
Only 23.6 dB(A) even at 100% PWM fan speed
The Silent Wings 3 120mm PWM fan is engineered for quiet performance and features:
- 7 airflow-optimized fan blades
- 6-pole motor for reduced vibration
- Durable fluid-dynamic bearing
The fan is decoupled from the heatsink with vibration-isolating elements, further minimizing noise.
Exceptionally High Cooling Power
Outstanding performance-to-noise ratio
With an impressive 180W TDP rating, Dark Rock Slim maintains low CPU temperatures even during peak performance. For users seeking additional cooling capacity, it optionally supports the installation of a second 120mm retail fan.
Highly Advanced Design
Core features for high-end cooling
Dark Rock Slim is equipped with advanced engineering elements that enhance heat dissipation:
- Four 6mm copper heat pipes for maximum heat conductance
- Airflow-optimized, wave-contoured aluminum fins with surface dots to increase air circulation
- Special black coating with ceramic particles to enable perfect heat transfer
Specifications
General Data
| Feature | Detail |
|---|---|
| Model | Dark Rock Slim |
| TDP (W) | 180 |
| Color option | Black |
| Overall dimensions without mounting (L x W x H, mm) | 47 x 127 x 159 |
| Total weight (kg) | 0.62 |
| Socket compatibility Intel | 1851 / 1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM |
| Socket compatibility AMD | AM5 / AM4 |
| Overall noise level (dB(A)) @ 50 / 75 / 100% (rpm) | 11 / 16.9 / 23.6 |
| Number of fans | 1 |
| Decoupled fan mounting | Yes |
Heatsink Specifications
| Feature | Detail |
|---|---|
| Dimensions (L x W x H, mm) | 72 x 127 x 159 |
| Fin material | Aluminum |
| Surface treatment | Ceramic coating |
| Base material | Copper |
| CPU contact surface | CNC machined |
| Heatpipe number / Diameter (mm) | 4 / 6 |
Fan Specifications
| Feature | Detail |
|---|---|
| Fan model | Silent Wings 120mm PWM |
| Fan dimensions (mm) | 120 x 120 x 23 |
| Speed @ 100% PWM / 12V (rpm) | 1500 |
| Bearing technology | Fluid Dynamic Bearing |
| Motor technology | 6-pole fan motor |
| Rated voltage (V) | 12 |
| Input current (A) | 0.08 |
| Input power (W) | 0.96 |
| Connector | 4-pin PWM |
| Lighting connector | - |
| Cable length (mm) | 220 |
| Lifespan (h / 25°C) | 300,000 |
Accessories
| Item | Detail |
|---|---|
| Thermal grease | Included |
| Mounting set | Intel & AMD |
| Y-Cable | - |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
Safety Certification
| Feature | Detail |
|---|---|
| Approvals | - |
Environmental Directives
| Feature | Detail |
|---|---|
| RoHS | - |
| Triman | - |
Logistics Data
| Feature | Detail |
|---|---|
| Article number | BK024 |
| Package dimensions (L x W x H, mm) | 115 x 190 x 190 |
| Gross weight, package (kg) | 0.99 |
