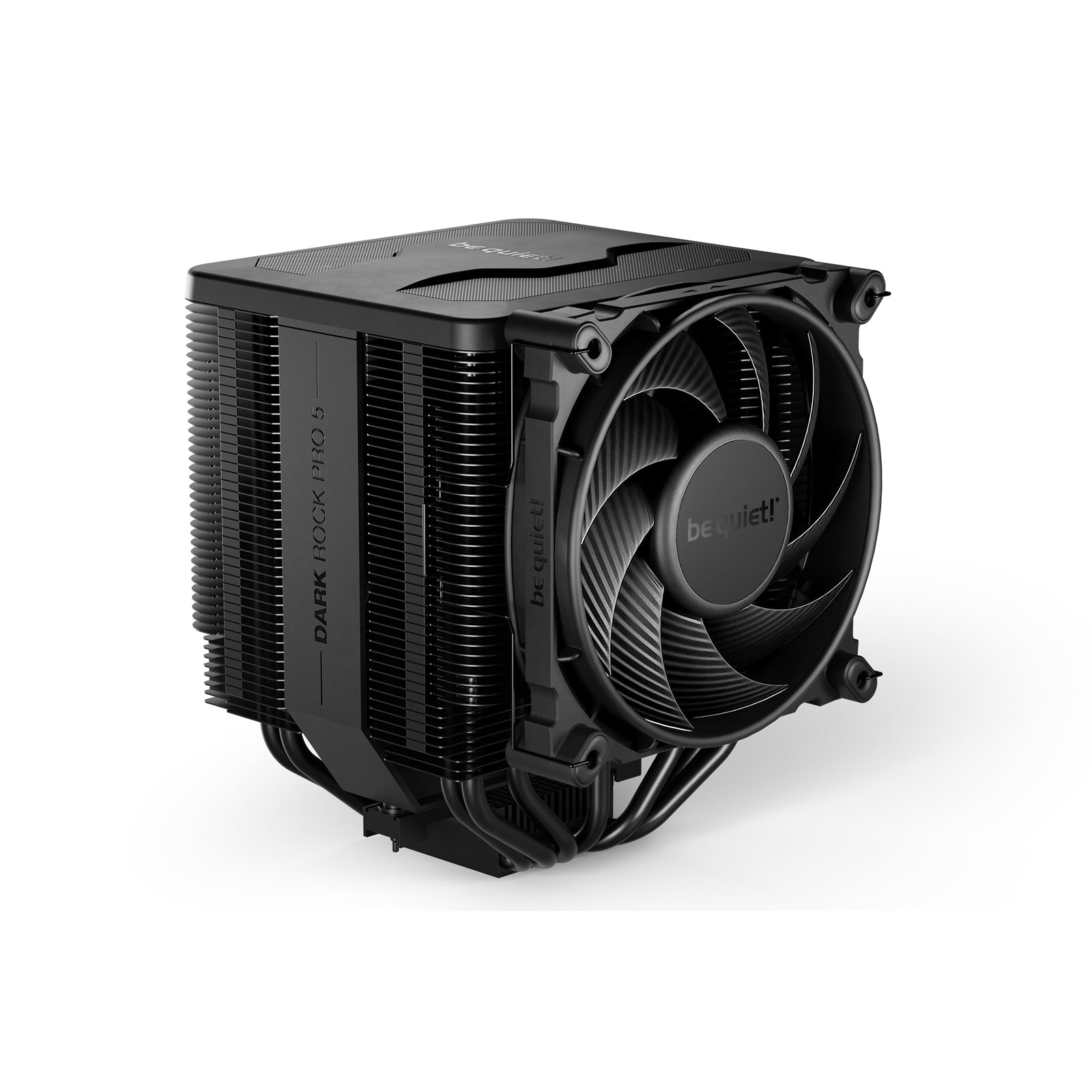

DARK ROCK PRO 5 CPU Cooler
No-Compromise Performance and Silence
The Dark Rock Pro 5 delivers immense cooling performance with virtually inaudible operation, making it an excellent choice for heavily overclocked systems and demanding workstations.
- 7 high-performance heat pipes for extremely high cooling power
- 2 virtually inaudible Silent Wings PWM fans for optimized airflow
- Front fan with funnel-shaped outlet for ideal air distribution
- Speed Switch with Quiet Mode and Performance Mode
- Height-adjustable front fan and generous heatsink cut-outs for high RAM and VRM cooler compatibility
- Special black coating with ceramic particles for efficient heat transfer and an elegant look
- Compatible with liquid metal thermal grease
Immense Cooling Power
Even under heavy overclocking, the Dark Rock Pro 5 keeps your CPU performing at its peak.
- 7 high-performance copper heat pipes
- Special black coating with ceramic particles for efficient heat transfer
- Designed for high-end CPUs in overclocked systems and demanding workstations
Silent Wings PWM Fans
For virtually inaudible operation, the Dark Rock Pro 5 is equipped with premium Silent Wings fans.
- 2 Silent Wings PWM fans with advanced fluid-dynamic bearings
- Smooth 6-pole motors and airflow-optimized blades
- Tight tip clearance for extremely high air pressure on the front fan
- Funnel-shaped frame outlet for ideal air distribution
- Rubberized fan frame to prevent vibration transfer and reduce overall noise
Speed Switch – Quiet or Performance
Adapt cooling behavior to your needs at any time.
- Speed Switch with 2 selectable modes
- Quiet Mode: Up to 1500 rpm, ideal for normal applications
- Performance Mode: Up to 2000 rpm, unleashes full cooling power
Convenient Handling
Installation is designed to be simple and elegant.
- Detachable mesh top cover with integrated middle fan, inserted from above
- Completely black mounting kit with pre-installed mounting bridge and fixing screws
- Mounting hardware visually matches the cooler’s black design
Iconic Dark Rock Design
The Dark Rock Pro 5 continues the renowned Dark Rock design language.
- Instantly recognizable as a Dark Rock cooler
- New design accents while preserving the heritage of be quiet! high-end coolers
Compatible with Liquid Metal Thermal Grease
Push cooling performance even further.
- Nickel-plated base compatible with liquid metal thermal grease such as DC2 Pro
- Optimized for high-end CPUs in combination with liquid metal compound
Specifications
General Data
| Parameter | Value |
|---|---|
| Model | Dark Rock Pro 5 |
| TDP (W) | 270 |
| Color option | Black |
| Overall dimensions without mounting (L x W x H) mm | 145 × 136 × 168 |
| Total weight (kg) | 1.29 |
| Socket compatibility Intel | 1851 / 1700 / 1200 / 1150 / 1151 / 1155 |
| Socket compatibility AMD | AM5 / AM4 |
| Overall noise level (dB(A)) @ 50 / 75 / 100% rpm | 8.9 / 16.3 / 23.3 |
| Number of fans | 2 |
| Lighting connector | No |
Heatsink
| Parameter | Value |
|---|---|
| Dimensions (L x W x H), mm | 119.5 × 136 × 168 |
| Fin material | Aluminum |
| Surface treatment | Ceramic coating |
| Base material | Copper |
| CPU contact surface | CNC machined |
| Heatpipe number / diameter (mm) | 7 / 6 |
| Decoupled fan mounting | No |
Fans
| Parameter | Value |
|---|---|
| Fan model | Silent Wings / Silent Wings 4 |
| Fan dimensions (mm) | 135 × 135 × 25 / 120 × 120 × 25 |
| Speed @ 100% PWM / 12V (rpm) | 1300; 1500 / 1700; 2000 |
| Bearing technology | Fluid Dynamic Bearing |
| Motor technology | 6-pole fan motor |
| Rated voltage (V) | 12 |
| Input current (A) | 0.28 / 0.20 |
| Input power (W) | 3.36 / 2.4 |
| Connector | 4-pin PWM |
| Lighting connector | No |
| Cable length (mm) | 120 / 80 |
| Lifespan (h / 25°C) | 300,000 |
| Y-Cable | Yes |
Accessories
| Parameter | Value |
|---|---|
| Thermal grease | Included |
| Mounting set | Intel & AMD |
| Y-Cable | No |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
Safety & Environmental
| Parameter | Value |
|---|---|
| Approvals | CE, UKCA, UL, TUV |
| RoHS | Yes |
| WEEE | Yes |
| Triman | Yes |
Service
| Parameter | Value |
|---|---|
| Warranty (Years) | 3 |
| International hotline / free of charge | Yes / DE, FR |
