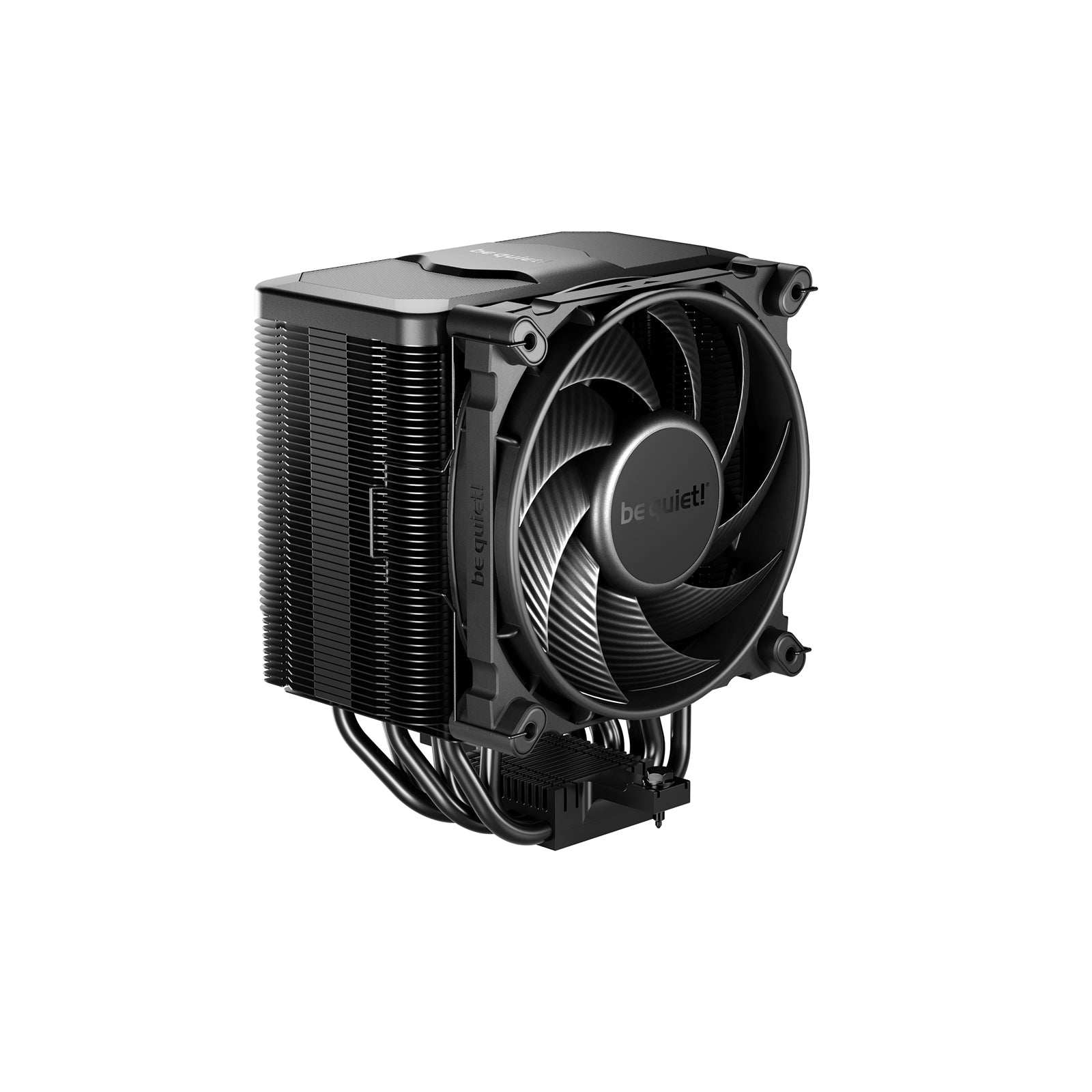

Dark Rock 5 CPU Cooler
The Dark Rock 5 is a compact high-performance CPU cooler that combines extreme cooling power with broad compatibility. With effortless installation and a virtually inaudible fan, it is designed for passionate gamers of all kinds.
Enjoy intensive gaming while your CPU remains cool and quiet, powered by no less than 6 high-performance heat pipes.
Extreme Cooling Power
- 6 high-performance copper heat pipes
- Dense aluminium fin array for robust heat dissipation
- Special black coating with ceramic particles for optimal heat transfer from heat sink to air
- Keeps your system cool even under intense workloads
Silent Wings PWM Fan
The included Silent Wings 4 120mm PWM fan is engineered for quiet and efficient cooling:
- Advanced fluid-dynamic bearing
- Smooth 6-pole motor
- Airflow-optimised fan blades
- Tight tip clearance between fan blade and frame for extremely high air pressure
- Funnel-shaped frame outlet for ideal air distribution
- Rubberized fan frame to prevent vibration transfer to the heat sink, reducing overall noise
High Compatibility with RAM and VRM Coolers
- Asymmetrical design and heat sink cut-outs significantly increase RAM and VRM cooler compatibility
- Enables limitless memory height
- Optional second fan can be installed at the exhaust for an extra performance boost
- Versatile design suitable for a wide range of gaming setups
Convenient Handling and Easy Installation
- Pre-installed mounting bridge for simplified installation
- Firm yet gentle fixing method makes cooler attachment straightforward
- Long-neck screwdriver included in the scope of delivery
Liquid Metal Thermal Grease Support
- Nickel-plated base compatible with liquid metal thermal grease such as DC2 Pro
- The properties of liquid metal compounds combined with Dark Rock 5 enable even higher performance from high-end CPUs
Cooler Specifications
| Category | Details |
|---|---|
| Edition | Dark Rock 5 |
| Cooler Form Factor | Single Tower |
| Heatpipes | 6 |
| Cooler Features | Aluminium Heatsink, Copper Base, Special Black Coating with Ceramic Particles |
| Socket Compatibility | 1150, 1151, 1155, 1200, 1700, 1851, AM4, AM5 |
| Max. TDP | 210W |
Fan Specifications
| Category | Details |
|---|---|
| Included Fan Configuration | 1 x 120mm |
| Fan Edition | Silent Wings PWM |
| PWM Fan | Yes |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Colour | Black |
| LED Lighting | None |
| Fan/Pump Connectors | 1 x 4-pin PWM |
| Max. Fan Speed | 2100 rpm |
| Max. Fan Airflow | 55 CFM |
| Max. Air Pressure | 2.73 mm H²O |
| Max. Sound Level | 29.8 dBA |
Materials
| Category | Details |
|---|---|
| Cooler Materials | Aluminium |
| Included TIM | Included |
Dimensions & Weight
| Category | Details |
|---|---|
| Heatsink/Radiator Dimensions | 101 x 136 x 76 mm (W x H x D) |
| Total Dimensions | 136 x 161 x 101 mm (W x H x D) |
| Weight | 1013 g (incl. fan) |
