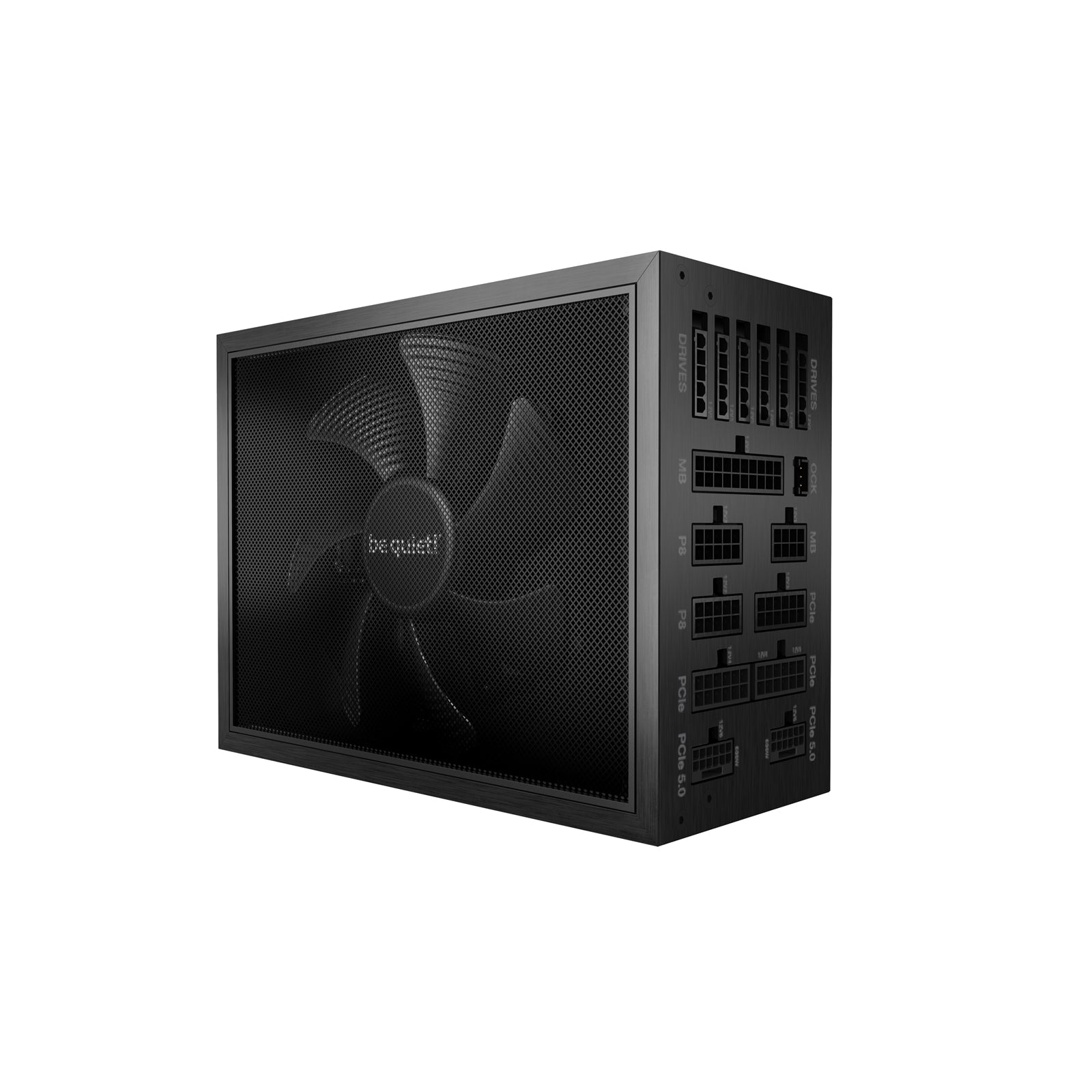

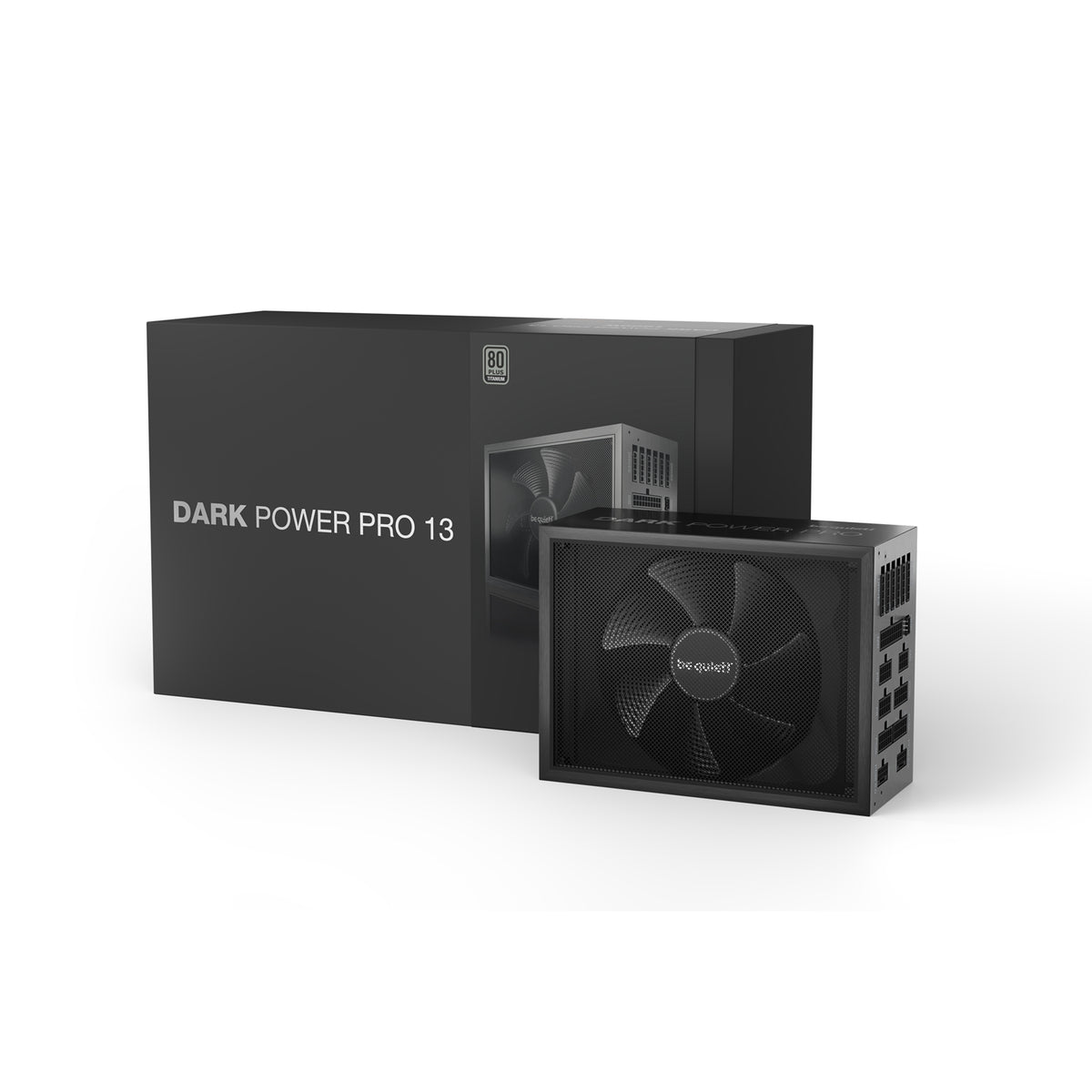

be quiet! Dark Power Pro 13 1600W Power Supply
The be quiet! Dark Power Pro 13 1600W delivers 80 PLUS Titanium efficiency, ATX 3.1 compliance, and full support for next‑generation PCIe 5.1 GPUs, making it an outstanding choice for high-end and future-proof PC builds.
Key Features
- 80 PLUS Titanium efficiency up to 94.5%
- ATX 3.1 compliant with native support for next-gen PCIe 5.1 GPUs
- Two native 12V-2x6 connectors plus 6 PCIe 6+2-pin connectors
- Handles massive power excursions up to double its rated power
- Fully digital control with Active Rectifier + full bridge LLC technology
- Patented frameless Silent Wings fan for virtually inaudible operation
- Overclocking key for switching between six 12V rails and a single powerful 12V rail
- Aluminum housing and modular, individually sleeved cables
- 10-year manufacturer’s warranty
80 PLUS Titanium Efficiency
Dark Power Pro 13 1600W is certified with 80 PLUS Titanium, the highest efficiency rating available, achieving up to 94.5% efficiency. Benefits include:
- Reduced power consumption
- Cooler overall operation
- Quieter system performance
- Standby power draw of below 0.1 W
ATX 3.1 & PCIe 5.1 Ready
Designed to future-proof your system, this power supply:
- Fully complies with ATX 3.1 specifications
- Includes two native 12V-2x6 connectors for next-generation PCIe 5.1 graphics cards
- Provides 6 PCIe 6+2-pin connectors for current-gen GPUs
This combination offers exceptional versatility for both present and upcoming high-end systems.
Massive Power for Transient Loads
With 1600W continuous power and 6 independent 12V rails, Dark Power Pro 13 1600W is engineered for extreme demands:
- Handles power excursions up to double its rated power
- Ensures reliable operation with next-generation CPUs and GPUs
State-of-the-Art Digital Technology
This is one of the most advanced power supplies be quiet! has ever built, featuring:
- Digital full bridge LLC topology
- Active Rectifier + SR + DC/DC design
The result is:
- Higher efficiency
- Improved voltage regulation
- Lower ripple noise
- Exceptionally stable power delivery

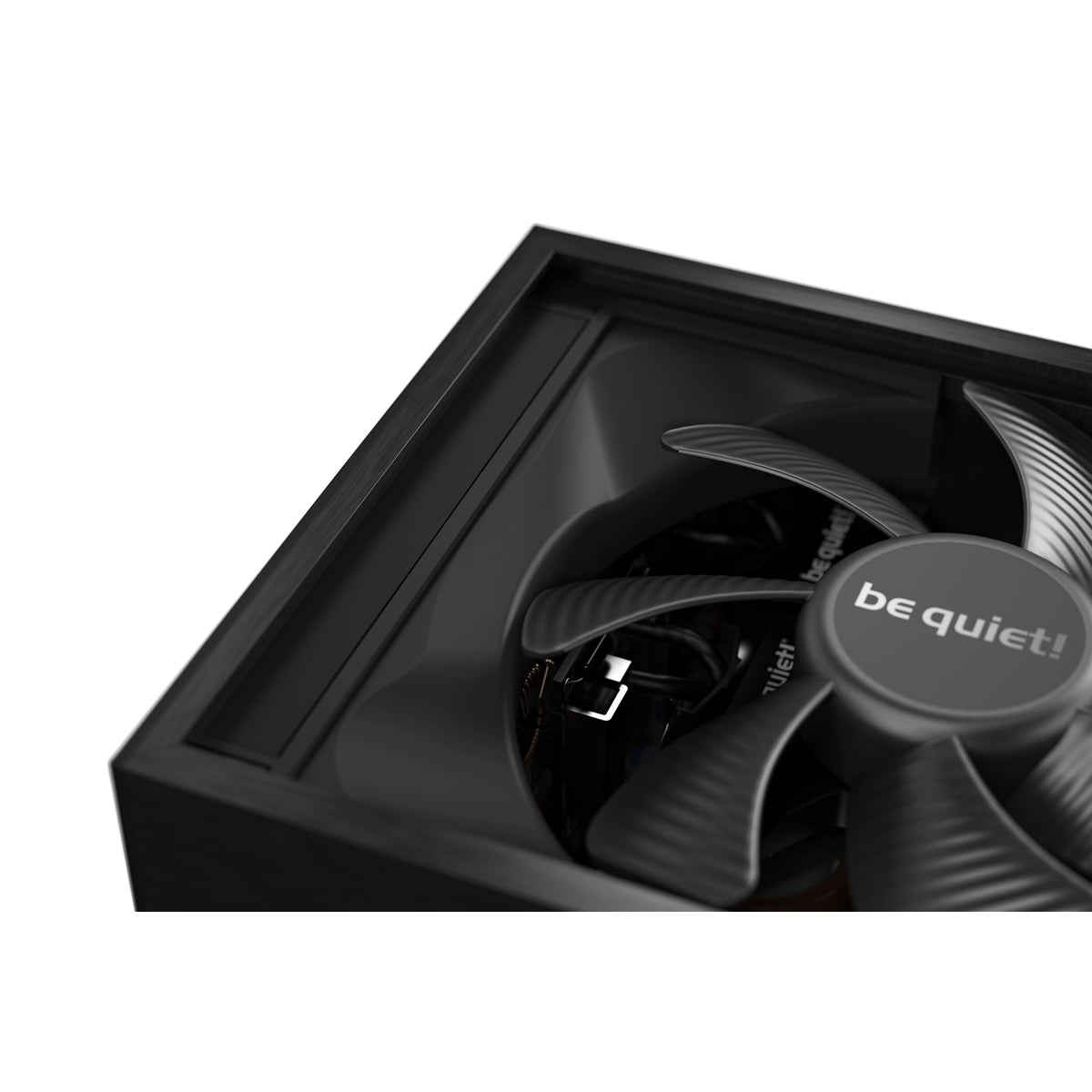

Virtually Inaudible Cooling
The improved, patented frameless Silent Wings fan is tripod-mounted to maximize airflow and minimize noise:
- Airflow-optimized fan blades
- Advanced fluid-dynamic bearing
- 6-pole fan motor for low vibration, long life, and reduced power consumption
At ordinary loads, operation is virtually inaudible.
Innovative Cooling Concept
The Dark Power Pro 13 1600W uses a split fan inlet shaped as a funnel to:
- Increase airflow
- Reduce turbulence
A wire-free interior design allows cool air to reach all components efficiently, contributing to a longer lifespan.
Ready for Extreme Overclocking
Perfectly suited for extreme overclocking scenarios, including liquid nitrogen or helium setups:
- State-of-the-art digital regulation enhances stability
- Overclocking key lets you switch from the default six 12V rails to a single massive 12V rail for maximum performance

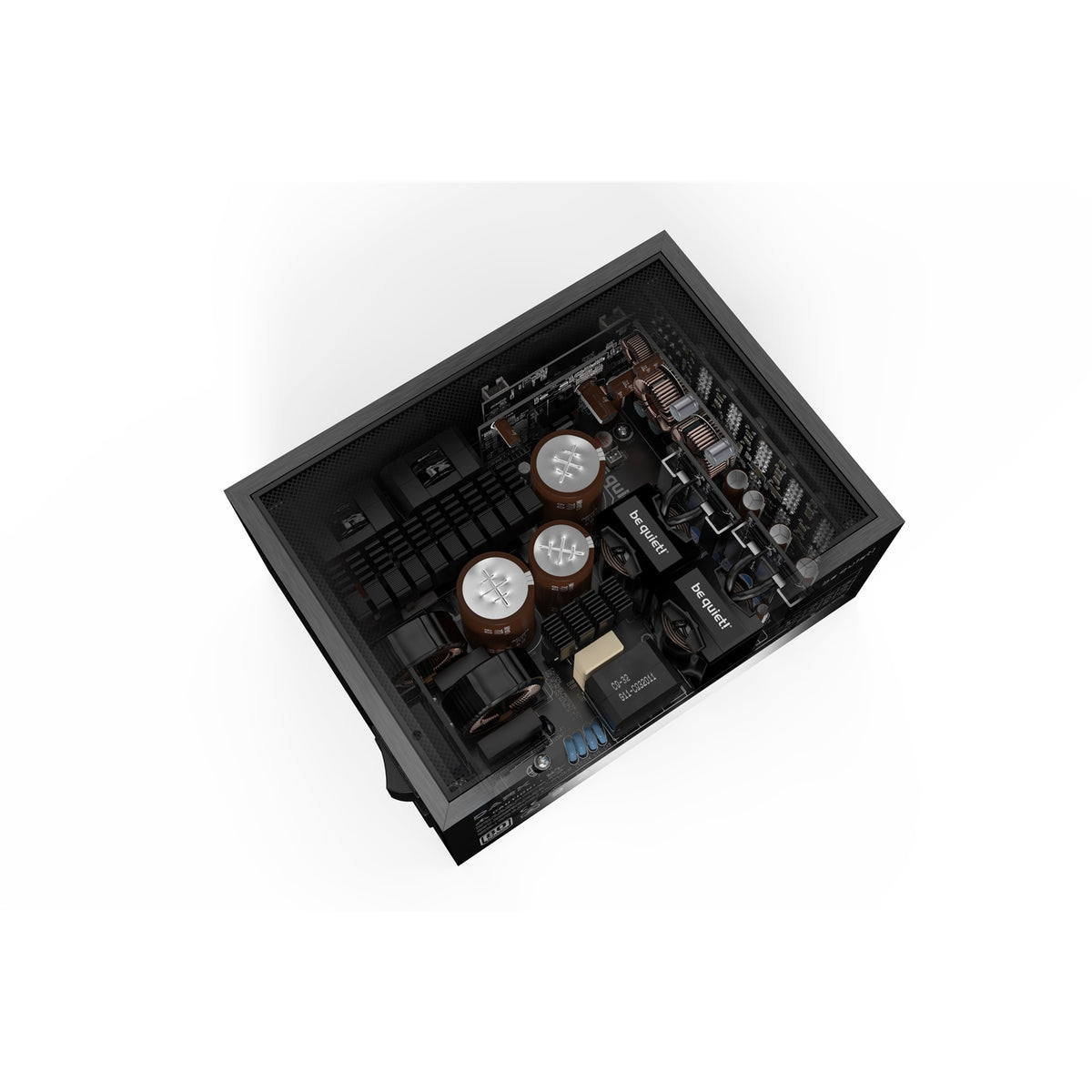

Premium Japanese Capacitors
For top-tier reliability, the Dark Power Pro 13 1600W uses exclusively high-quality Japanese capacitors:
- Rated at 105°C
- Designed for stability, reliability, and long operating life

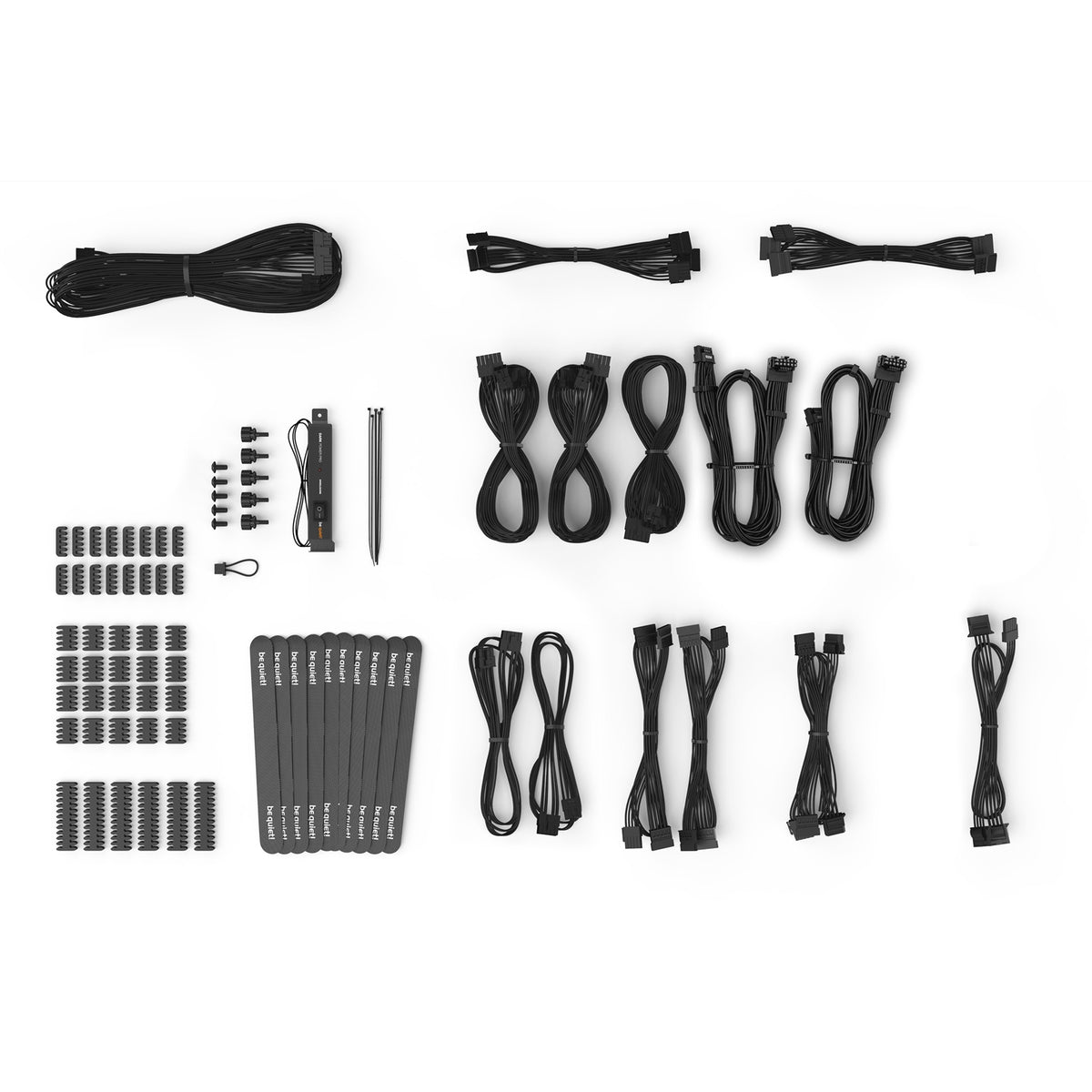

Modular, Individually Sleeved Cables
For maximum convenience and clean builds:
- Individually sleeved modular cables up to 120 cm
- Included cable combs for easy routing and superior organization
- Reduced clutter improves airflow and cooling, even in very large cases

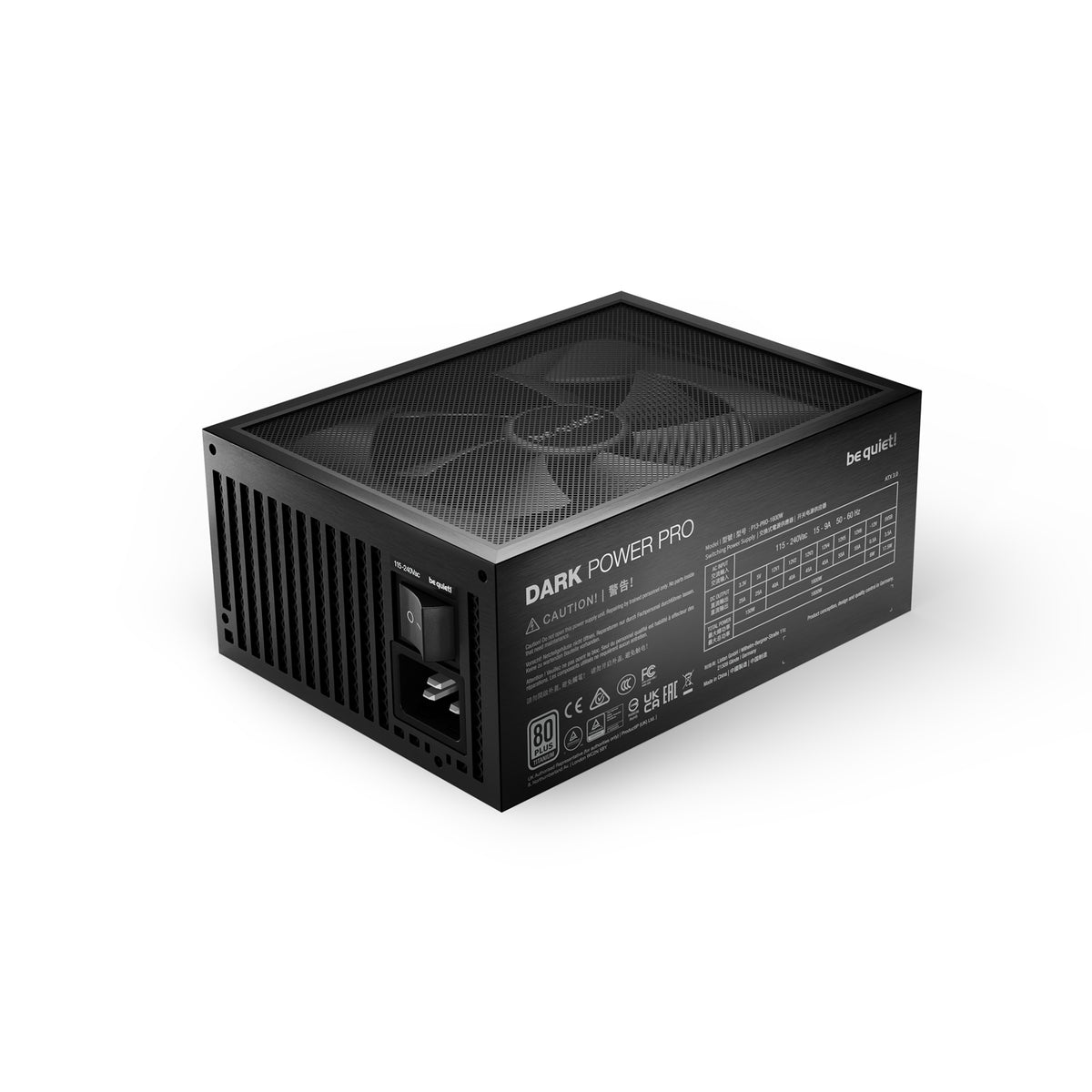

High-End Aesthetics
The Dark Power Pro 13 1600W is designed to look as good as it performs:
- Extraordinary aluminum case
- Individually sleeved cables to match its premium inner components
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Dark Power Pro 13 1600W |
| Continuous power (W) | 1600 |
| Peak power (W) | 1700 |
| Form factor | Version 3.1 |
| Form factor EPS 12V | Version 2.92 |
| Topology | Full bridge + LLC + SR + DC/DC |
| Digitally controlled | Yes |
| Input voltage (Vac) | 100 – 240 |
| Input frequency (Hz) | 50 – 60 |
| Input current (A) | 17 / 9 |
| Power factor at 100% load | > 0.99 |
| Modern standby | Yes |
| Power consumption in standby (W) | < 0.06 |
| Average lifetime (h / 25°C) | > 100,000 |
| Operating temperature up to (°C) | 50 |
| Dimensions (L x W x H, mm, without cable) | 200 x 150 x 86 |
| Modular cables | Yes |
| Cable sleeving | All cables sleeved |
| Maximum cable length (cm) | 105 |
| Cable length to motherboard (cm) | 60 |
| Number of cables | 16 |
| ATX 20+4-pin | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| 12V-2x6 cables | 2 |
| PCIe 6+2-pin (GPU) | 6 |
| SATA | 16 |
| PATA | 5 |
| FDD (Floppy) | No |
| Warranty | 10 years |
The be quiet! Dark Power Pro 13 1600W combines world-class performance, cutting-edge digital technology, ultra-quiet cooling, and future-ready connectivity, making it an exceptional foundation for premium and overclocked PC systems.
