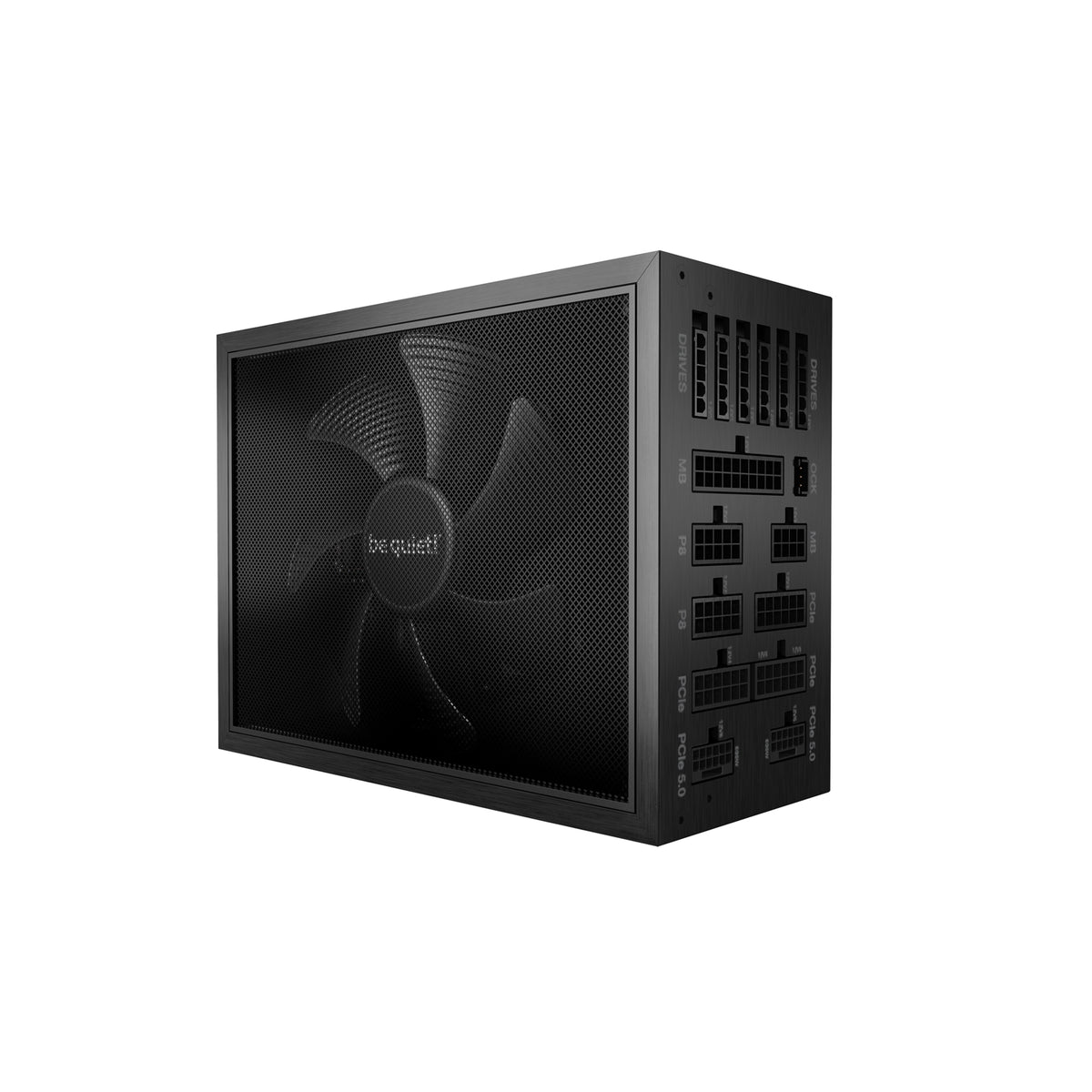

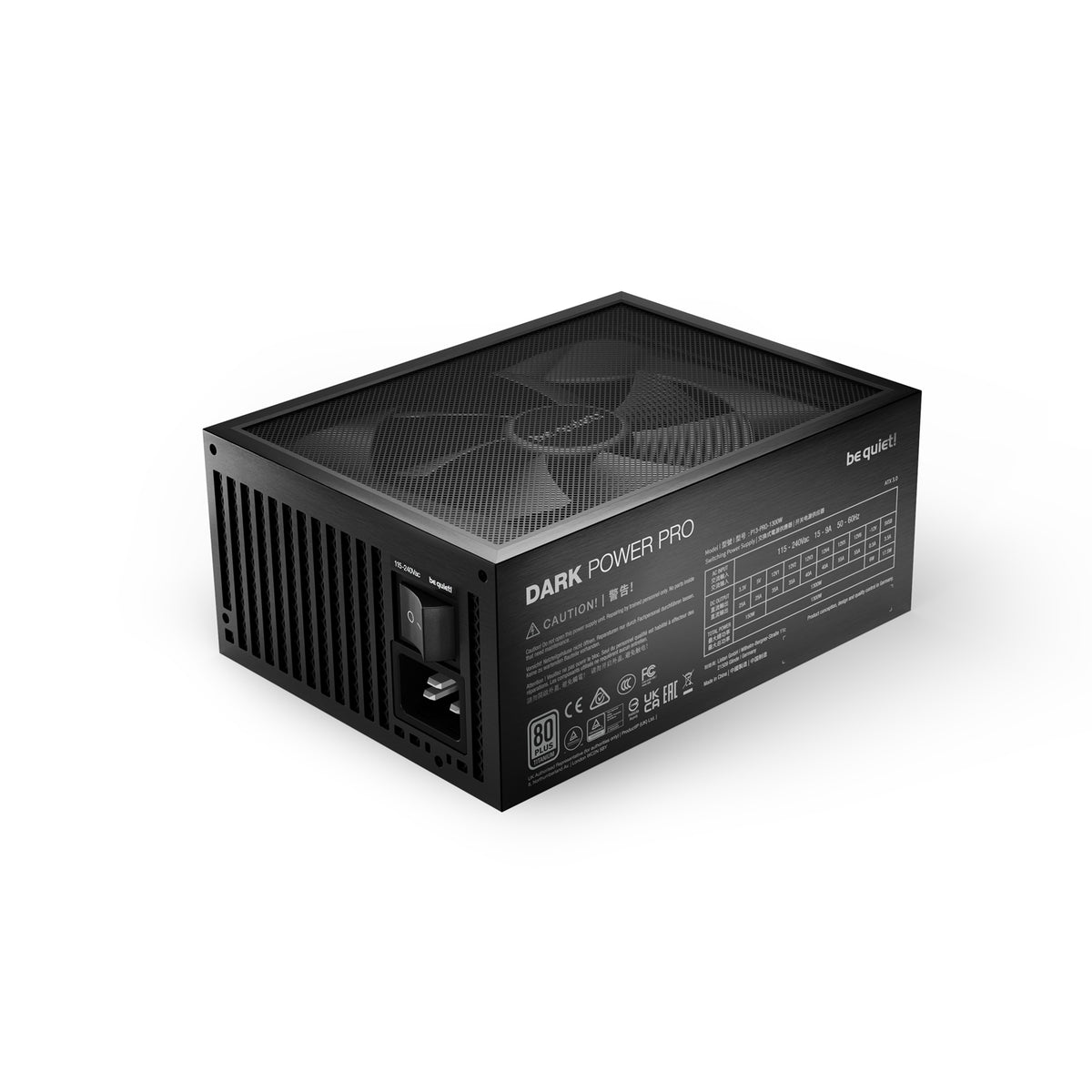

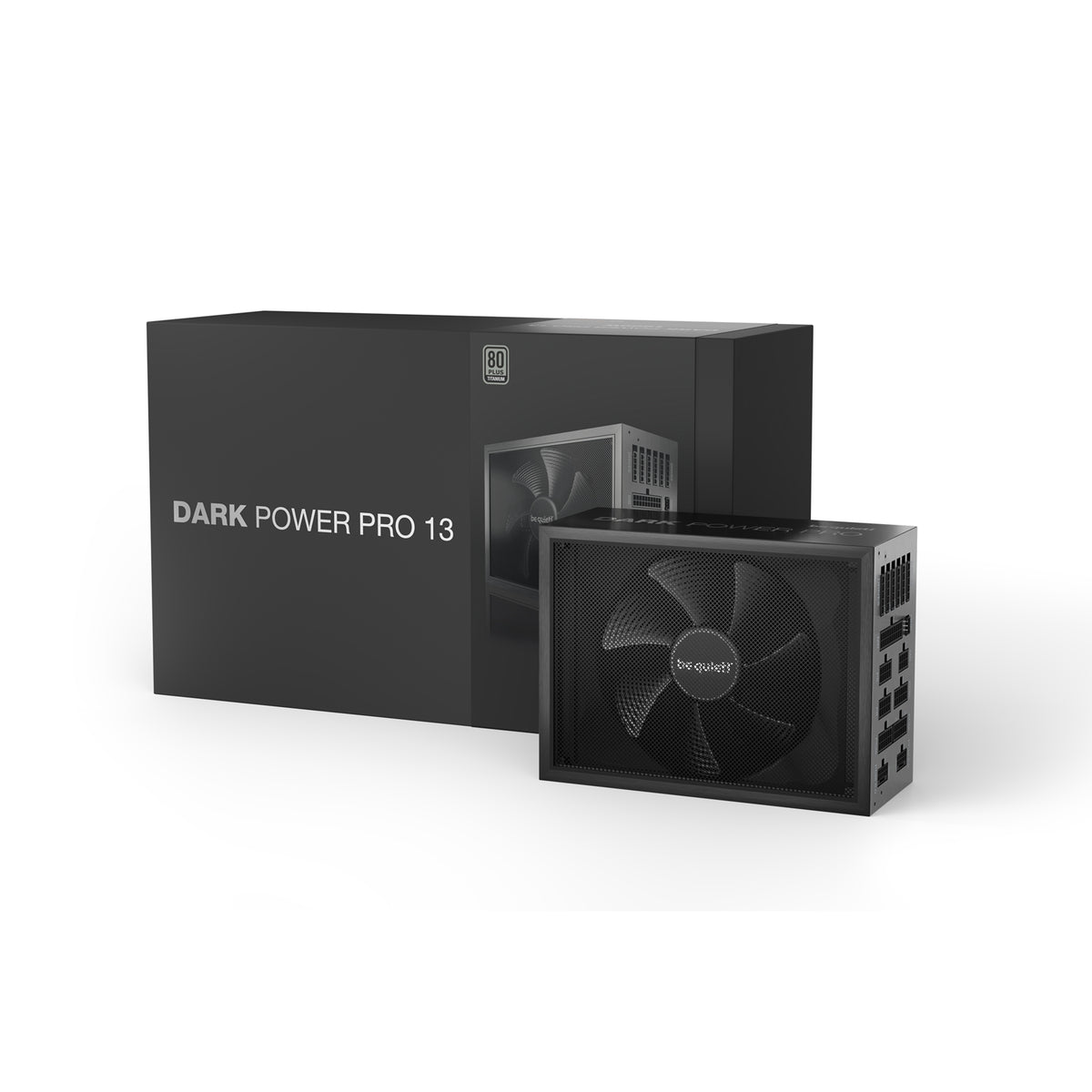

be quiet! Dark Power Pro 13 1300W Power Supply
The be quiet! Dark Power Pro 13 1300W delivers 80 PLUS Titanium efficiency, world-class performance, and full ATX 3.0 compliance for next-generation GPU compatibility.
Key Features
- 80 PLUS Titanium efficiency (up to 94.4%)
- ATX 3.0 PSU with full support for:
- PCIe 5.0 GPUs via 2x native 12VHPWR connectors
- GPUs with 6+2-pin connectors via 6x PCIe 6+2-pin cables
- Handles massive power excursions up to double its rated power
- Fully digital control with Active Rectifier + full bridge LLC technology for signal stability
- Patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
- Overclocking key to switch between six 12V rails and a single massive 12V rail
- Aluminum case and modular individually sleeved cables for a premium look
- 10-year manufacturer’s warranty
80 PLUS Titanium Certified Efficiency
- Certified 80 PLUS Titanium – the highest efficiency certificate available
- Efficiency rating of up to 94.4%
- Reduced power consumption for high-end systems
- Cooler and quieter overall operation
- Standby power drain below 0.1W
Future-Proof ATX 3.0 Design
The Dark Power Pro 13 1300W fully complies with ATX 3.0 specifications and is ready for next-generation graphics cards:
- Native integration of two 12VHPWR connectors for PCIe 5.0 GPUs
- Six PCIe 6+2-pin connectors for current-gen GPUs
- Ideal for both present high-end builds and upcoming hardware generations
Massive Power for Transient Loads
- Delivers 1300W of continuous power
- Features 6 independent 12V rails
- Handles power excursions up to double its rated power
- Ensures reliable operation with next-generation processors and graphics cards
State-of-the-Art Digital Technology
- Advanced digital full bridge LLC technology
- Active Rectifier + full bridge LLC topology
- Higher efficiency, improved voltage regulation, and lower ripple noise
- Provides exceptionally stable operation

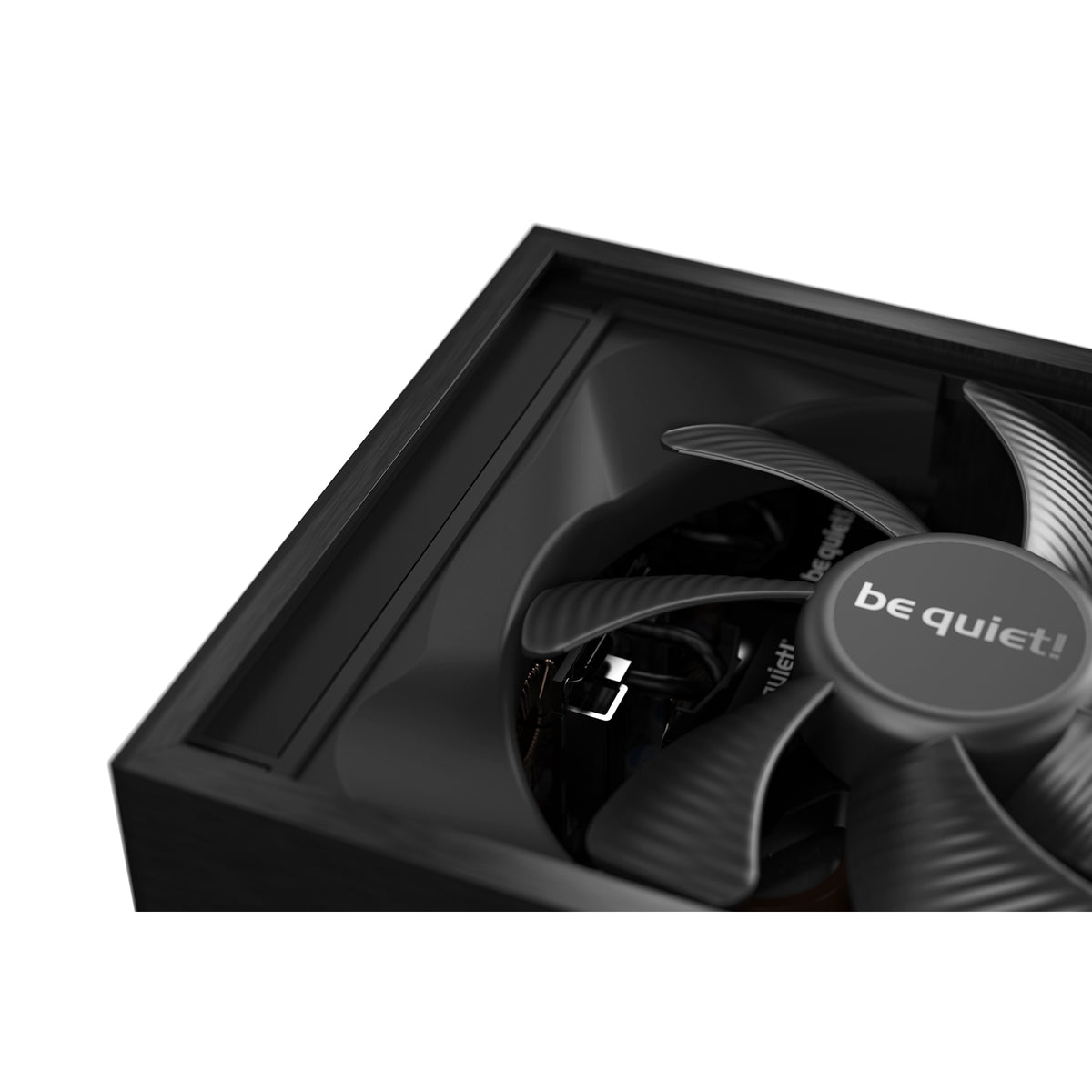

Frameless Silent Wings Fan
- Improved tripod-mounted be quiet! Silent Wings fan
- Virtually inaudible at ordinary loads
- Airflow-optimized fan blade design
- Advanced fluid-dynamic bearing
- 6-pole fan motor for:
- Reduced vibration
- Long service life
- Minimal power consumption

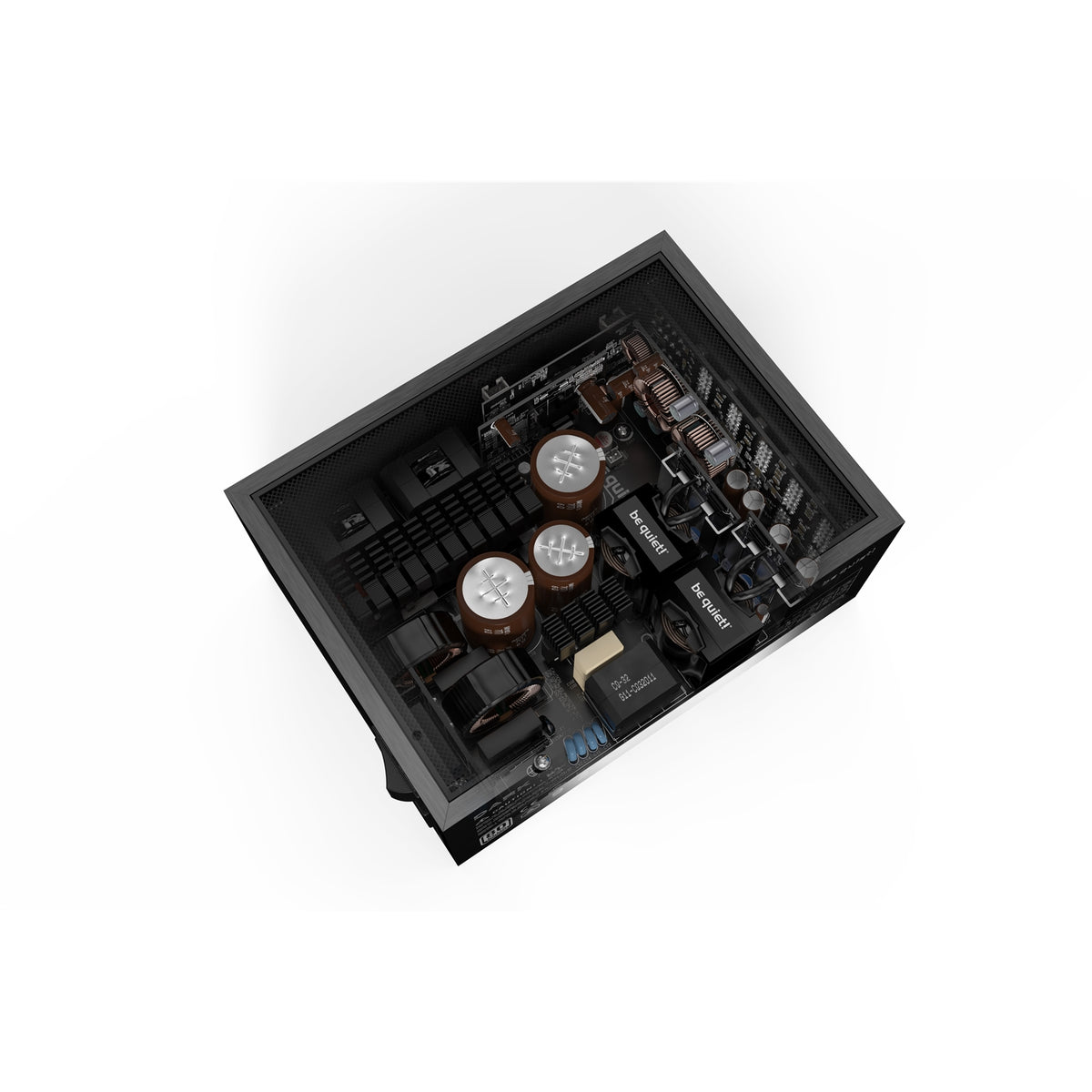

Innovative Cooling Concept
- Split fan inlet shaped as a funnel to increase airflow and reduce turbulence
- Wire-free internal design for unobstructed airflow to all components
- Contributes to a longer overall lifespan
Ready for Extreme Overclocking
- Especially suitable for liquid nitrogen or helium overclocking
- State-of-the-art digital regulation for precise control
- Overclocking key:
- Default mode: six independent 12V rails
- Alternative mode: one massive single 12V rail
Japanese 105°C Capacitors
- Equipped exclusively with high-quality Japanese capacitors
- Rated at 105°C
- Designed for stability, reliability, and long operating life

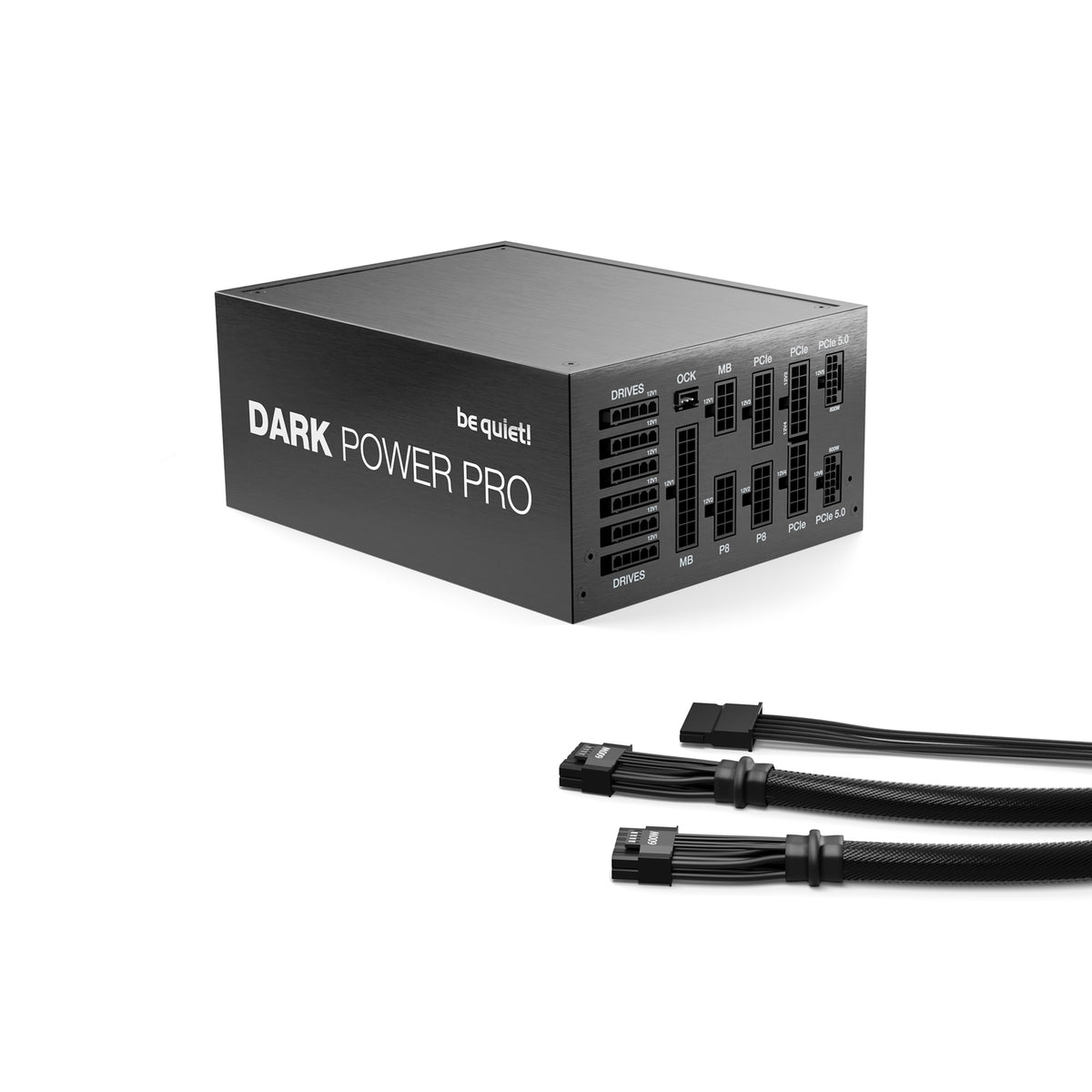

Modular Cables & Premium Appearance
- Individually sleeved modular cables up to 120 cm
- Includes cable combs for clean cable management
- Reduced clutter improves airflow and cooling, even in large cases
- Extraordinary aluminum housing and individually sleeved cables emphasize premium aesthetics
Specifications
| Category | Detail |
|---|---|
| Model | Dark Power Pro 13 1300W |
| Continuous power (W) | 1300 |
| Peak power (W) | 1400 |
| Form factor | Version 3.0 |
| Form factor EPS 12V | Version 2.92 |
| Topology | Full bridge + LLC + SR + DC/DC |
| Digitally controlled | Yes |
| Voltage (Vac) | 100 – 240 |
| Frequency (Hz) | 50 – 60 |
| Input current (A) | 16 / 8 |
| Power factor at 100% load | >0.99 |
| Modern standby | Yes |
| Power consumption in standby (W) | <0.06 |
| Average lifetime (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 50 |
| Dimensions (L x W x H, mm) | 200 x 150 x 86 |
| Modular cables | Yes |
| Sleeved cables | Yes |
| Maximum cable length (cm) | 105 |
| Cable length to motherboard (cm) | 60 |
| Number of cables | 16 |
Connectors
| Connector Type | Quantity |
|---|---|
| ATX Motherboard 20+4-pin | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | No |
| 12VHPWR | 2 |
| PCIe 6+2-pin (GPU) | 6 |
| PCIe 6-pin (GPU) | No |
| SATA | 16 |
| PATA | 5 |
| FDD (Floppy) | No |
Warranty
- Manufacturer’s warranty: 10 years
