be quiet! Dark Power 14 850W 80+ Titanium Modular Power Supply
The be quiet! Dark Power 14 850W is a high-performance ATX 3.1 power supply unit engineered for silent, efficient, and reliable power delivery. With 80 PLUS Titanium and Cybenetics Titanium efficiency, support for PCIe 5.1 GPUs, and advanced overclocking capabilities, it is an excellent choice for high-end gaming, enthusiast, and workstation systems.
Fully modular, sleeved cables ensure a clean build, while active and semi-passive cooling modes, a premium Silent Wings fan, and high-quality Japanese capacitors deliver stability and low noise under demanding loads.
Key Features
-
80 PLUS Titanium efficiency
Up to 95.6% efficiency for reduced power waste and heat. -
ATX 3.1 compatibility
Designed to support PCIe 5.1 GPUs as well as graphics cards with 6+2-pin connectors. -

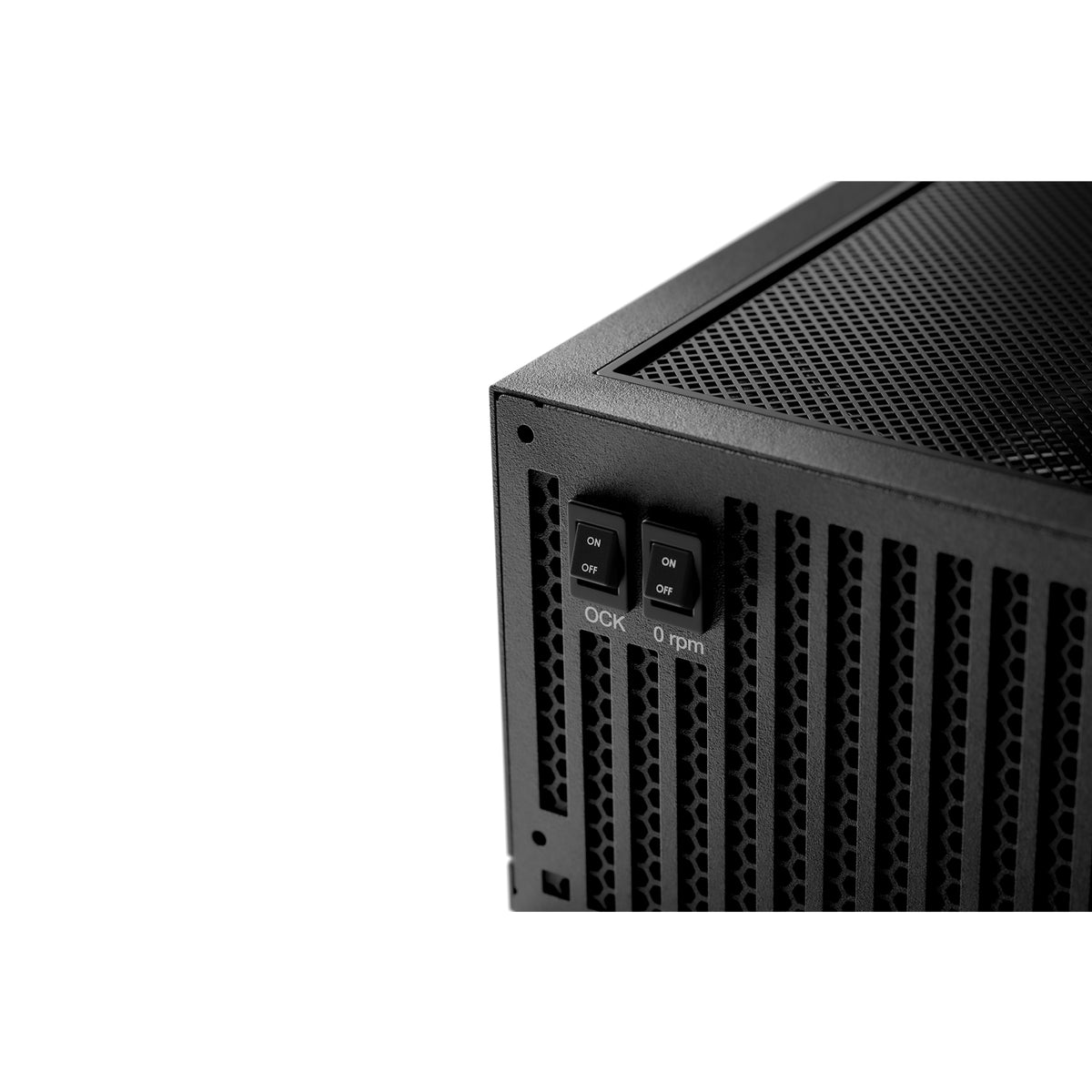

Flexible cooling modes
Switch between active and semi-passive cooling with a dedicated push-button. -
Silent Wings 135 mm fan
Integrated into a large heat sink for optimized cooling and low noise. -
Overclocking key
Choose between multi-rail or single-rail 12V operation to match your performance needs. -
Advanced internal design
Full bridge + LLC + Synchronous Rectifier topology for high efficiency and stability. -
Premium Japanese capacitors
105°C-rated components for long-term reliability. -
Fully modular, sleeved cabling
Cables up to 120 cm for clean, flexible cable management in larger cases. -
Long-term reliability
Backed by a 10-year manufacturer warranty.
Specifications
| Category | Detail |
|---|---|
| Model | Dark Power 14 850W |
| Output Power | Continuous: 850 W Peak: 950 W |
| Efficiency Rating | 80 PLUS Titanium (up to 95.6%) |
| Efficiency @ 2% Load | 71.4% |
| Efficiency @ 10% Load | 91.5% |
| Efficiency @ 20% Load | 94.4% |
| Efficiency @ 50% Load | 95.6% |
| Efficiency @ 100% Load | 93.8% |
| Voltage Rails | Multi-rail 12V (4 rails) |
| Overclocking Key | Yes |
| Form Factor | ATX 3.1 |

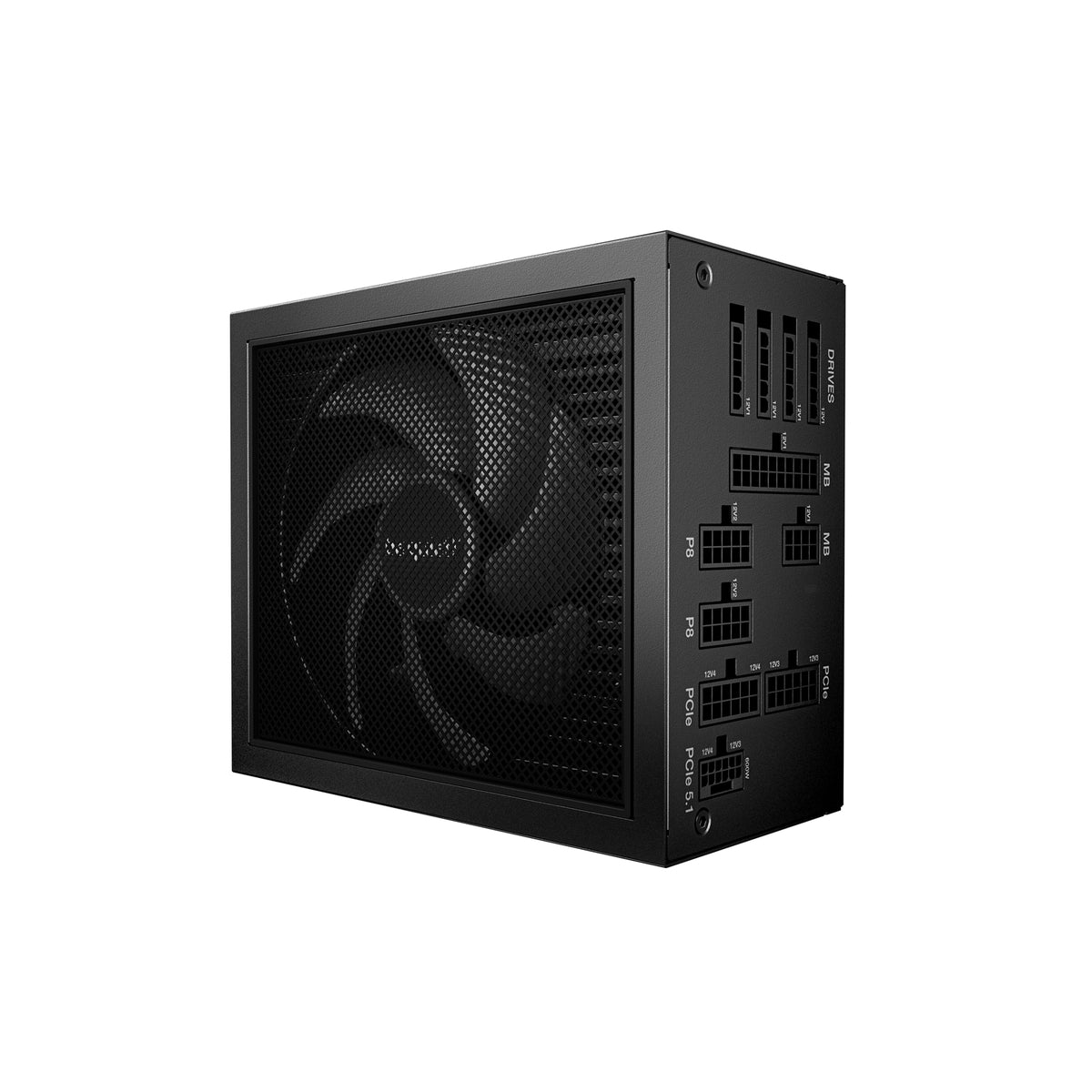

Connectors
- 1 x 20+4-pin ATX motherboard
- 1 x 4+4-pin CPU
- 1 x 8-pin CPU
- 1 x 12V-2x6 cable
- 4 x PCIe 6+2-pin
- 13 x SATA
- 2 x PATA
- Floppy: No
Cooling
- 135 mm Silent Wings fan
- 6-pole fan motor, fluid-dynamic bearing
- Maximum fan speed: 2100 rpm
- Noise at 100% load: 16 dB(A)
Protection Features
- OTP (Over Temperature Protection)
- OCP (Over Current Protection)
- OPP (Over Power Protection)
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- SIP (Surge & Inrush Protection)

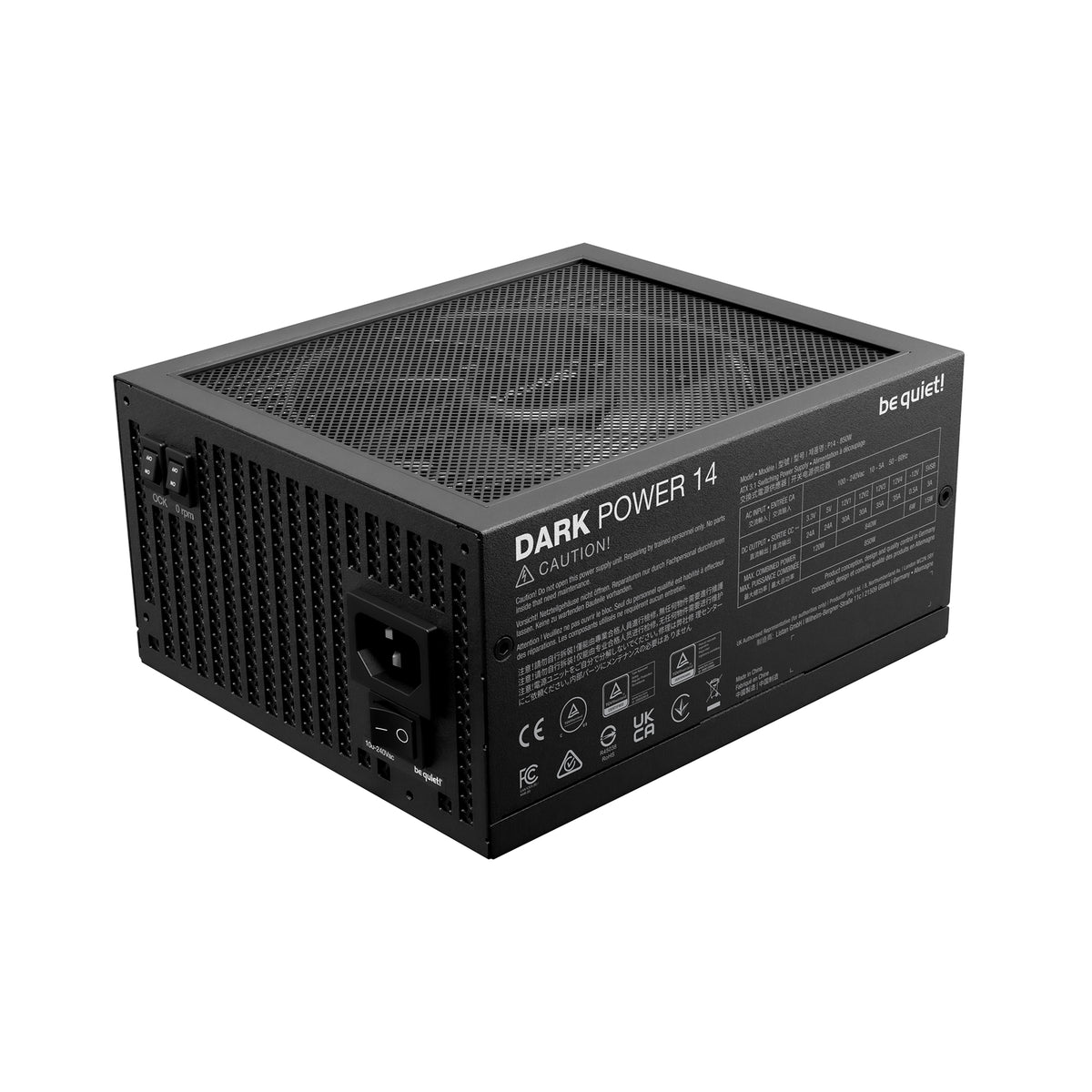

Electrical Input
| Parameter | Detail |
|---|---|
| Input Voltage | 100–240 V AC |
| Input Frequency | 50–60 Hz |
| Input Current | 10/5 A |
| Power Factor | > 0.98 |
Dimensions & Weight
| Parameter | Detail |
|---|---|
| Dimensions (L×W×H) | 175 x 150 x 86 mm |
| Weight | 2.2 kg |

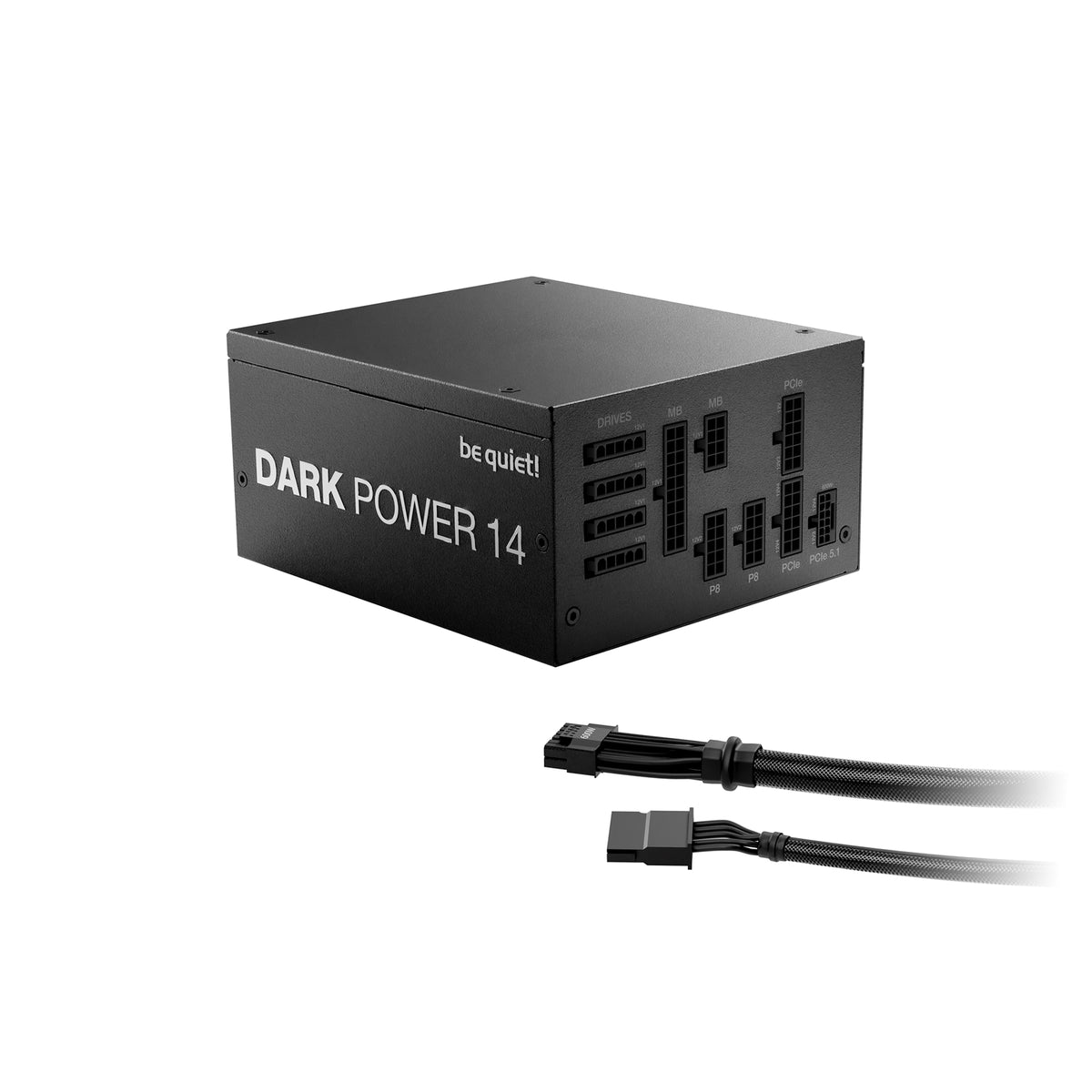

Modular Cabling
- Fully modular, sleeved, flat cables
- Maximum cable length: 105 cm
- Motherboard cable length: 60 cm
Warranty
- Manufacturer warranty: 10 years
