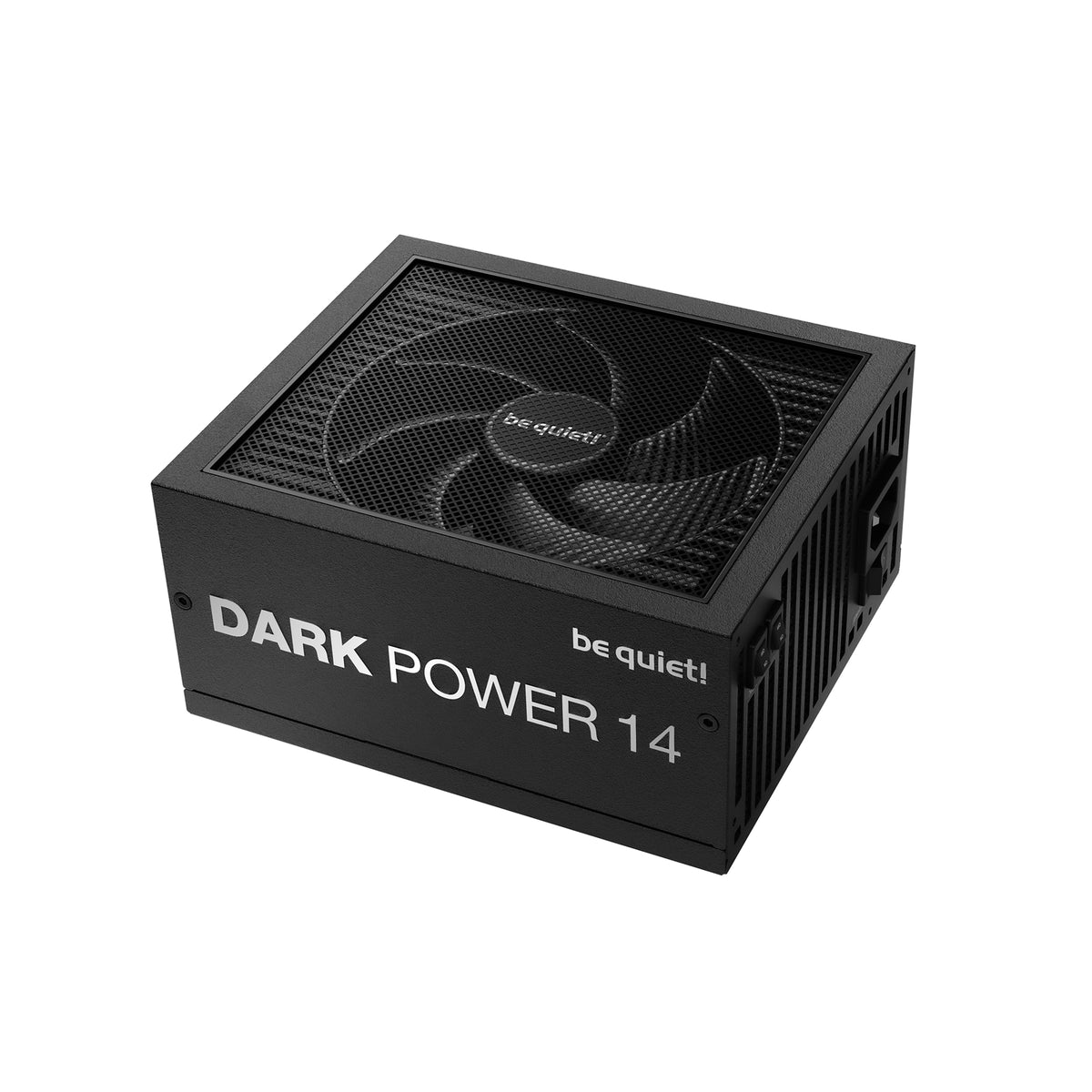

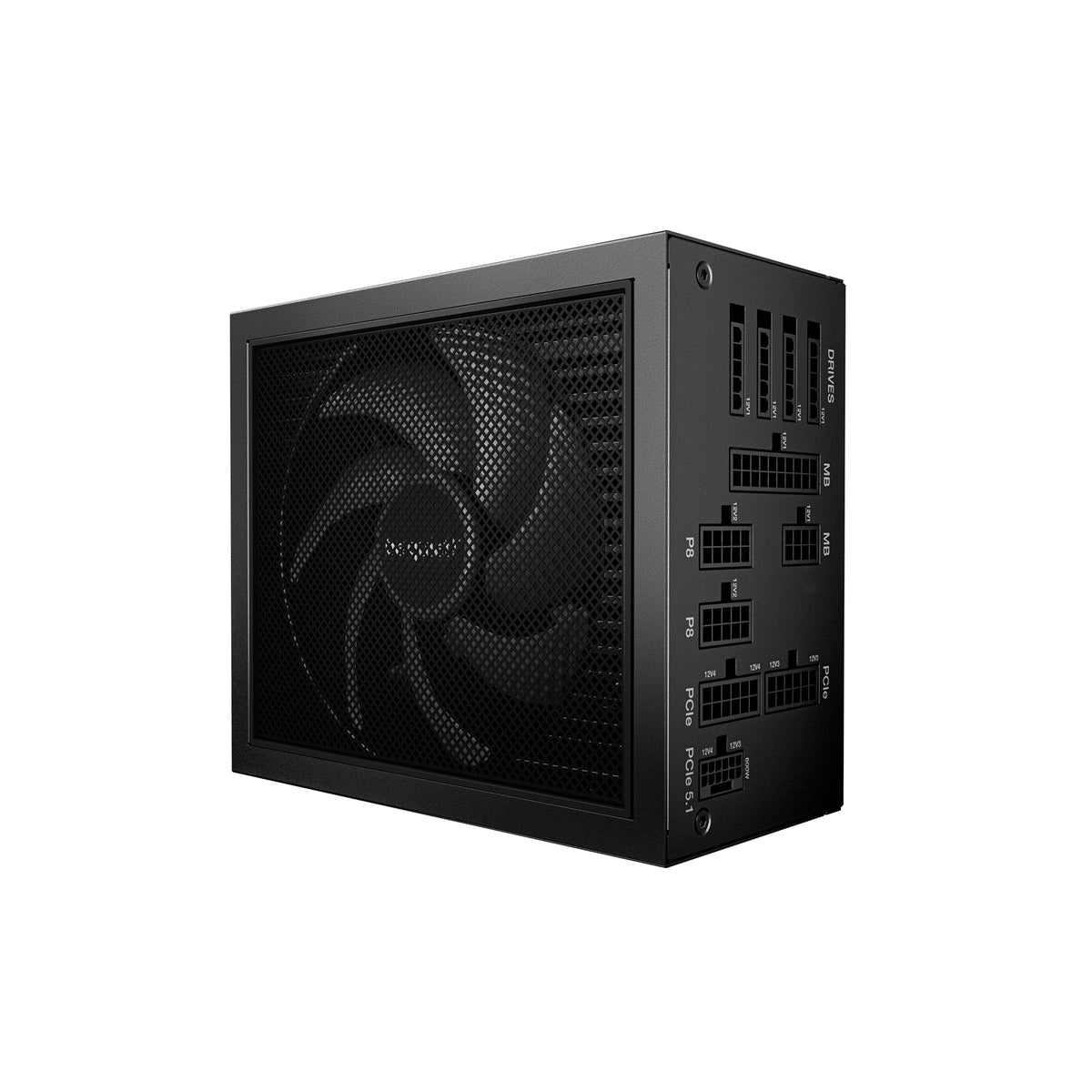

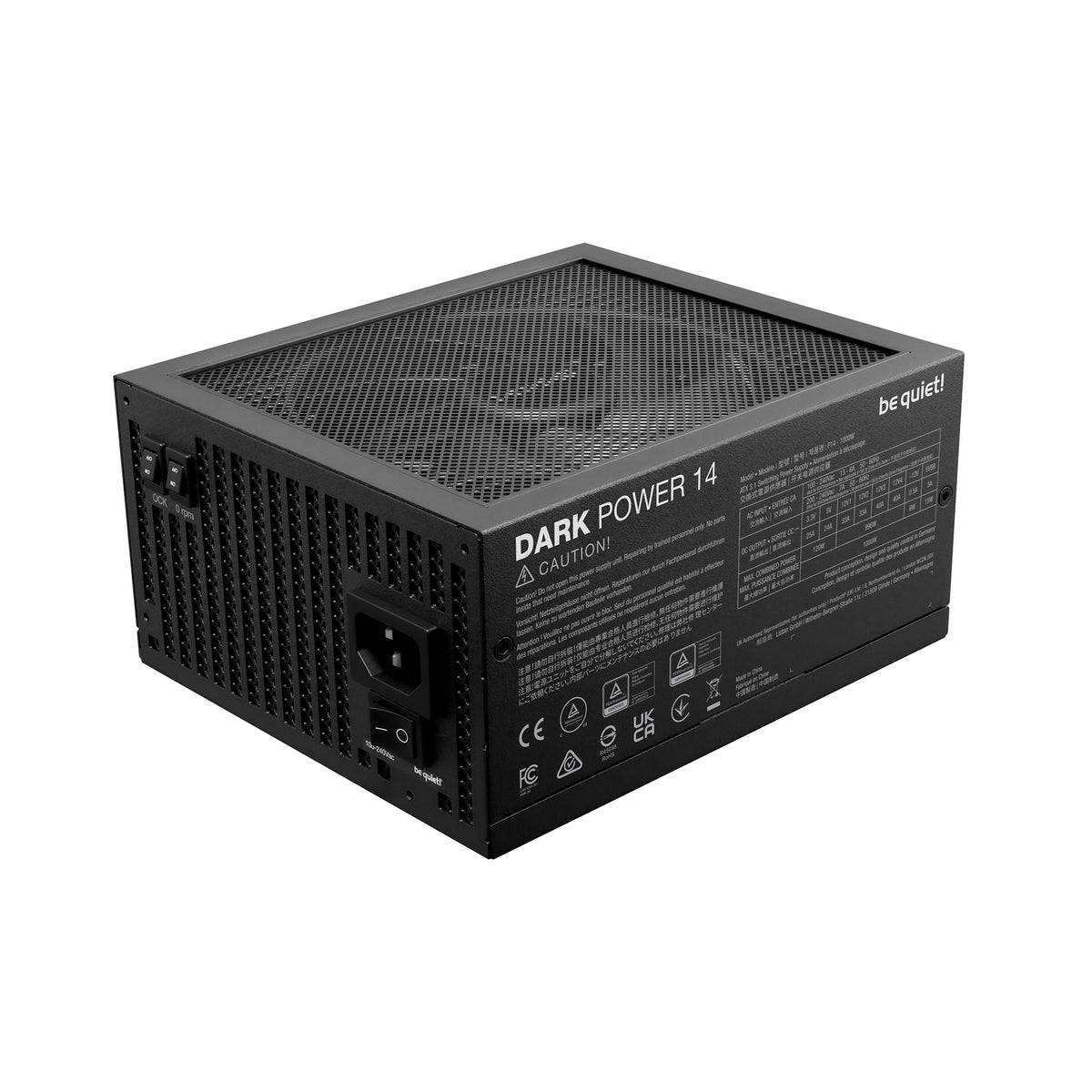

be quiet! Dark Power 14 1200W 80+ Titanium Power Supply
The be quiet! Dark Power 14 1200W 80+ Titanium Power Supply is engineered for ultra-high efficiency, silent cooling, and next-generation hardware support. With ATX 3.1 compliance and native PCIe 5.1 12V-2x6 connectors, it is built to reliably power demanding high-end and overclocked systems. Combining Titanium efficiency, advanced power topology, and integrated Silent Wings cooling, it delivers exceptional performance and near-silent operation.
Key Features
-
80 PLUS® Titanium & Cybenetics Titanium efficiency
Up to 95.4% efficiency for outstanding energy savings and low heat output. -
ATX 3.1 with full PCIe 5.1 support
Native support for PCIe 5.1 GPUs and GPUs with 6+2-pin connectors. -
Selectable cooling modes
Switchable active or semi-passive operation via rear switch. -
Silent Wings 135mm fan
Virtually inaudible operation with FDB and 6-pole motor technology. -
Optimized thermal design
Aluminum heat sink layout for excellent heat dissipation. -
Advanced power topology
Full bridge + LLC + SR design for peak stability and ultra-low ripple. -

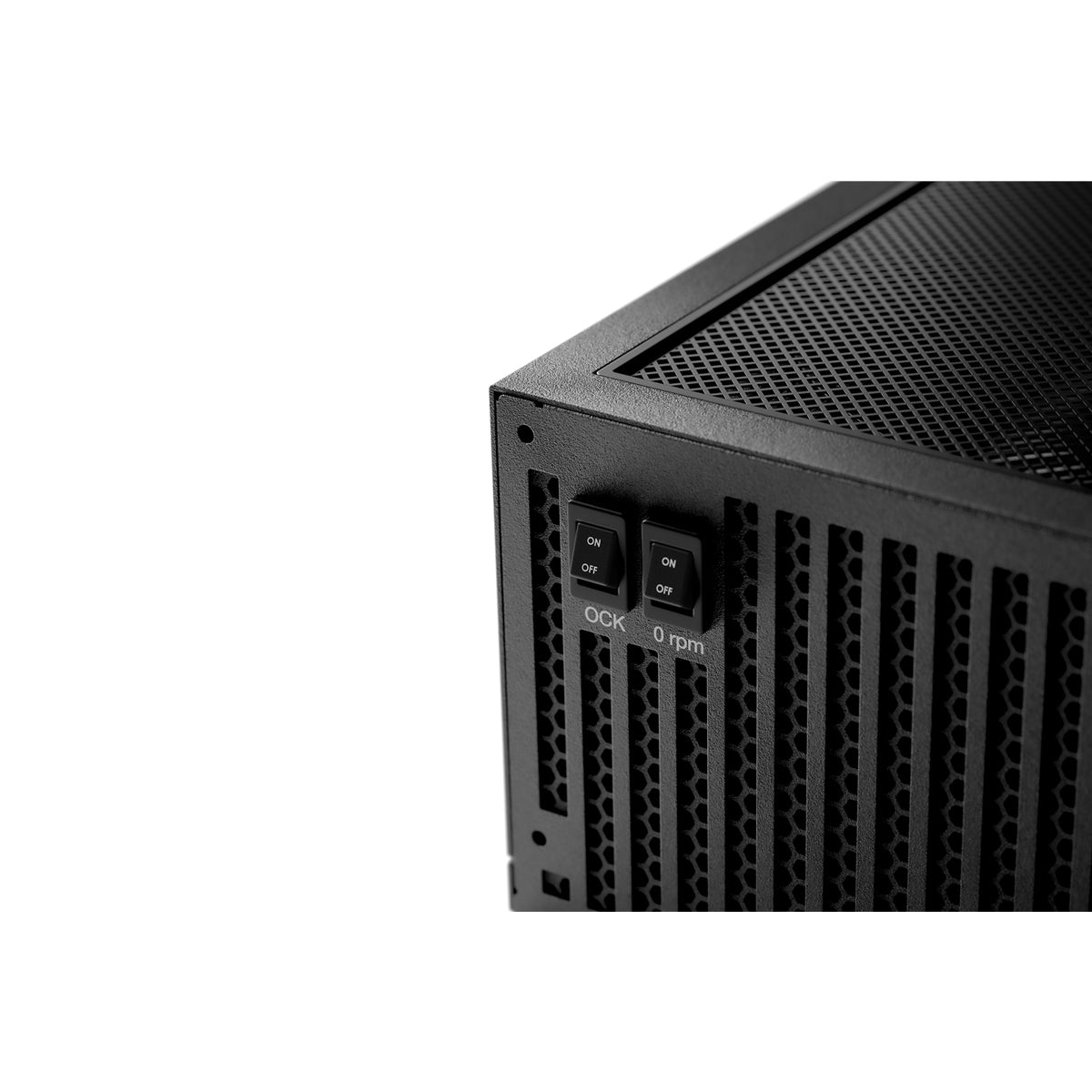

Overclocking key (OCK)
Easily switch between multi-rail and single-rail modes. -

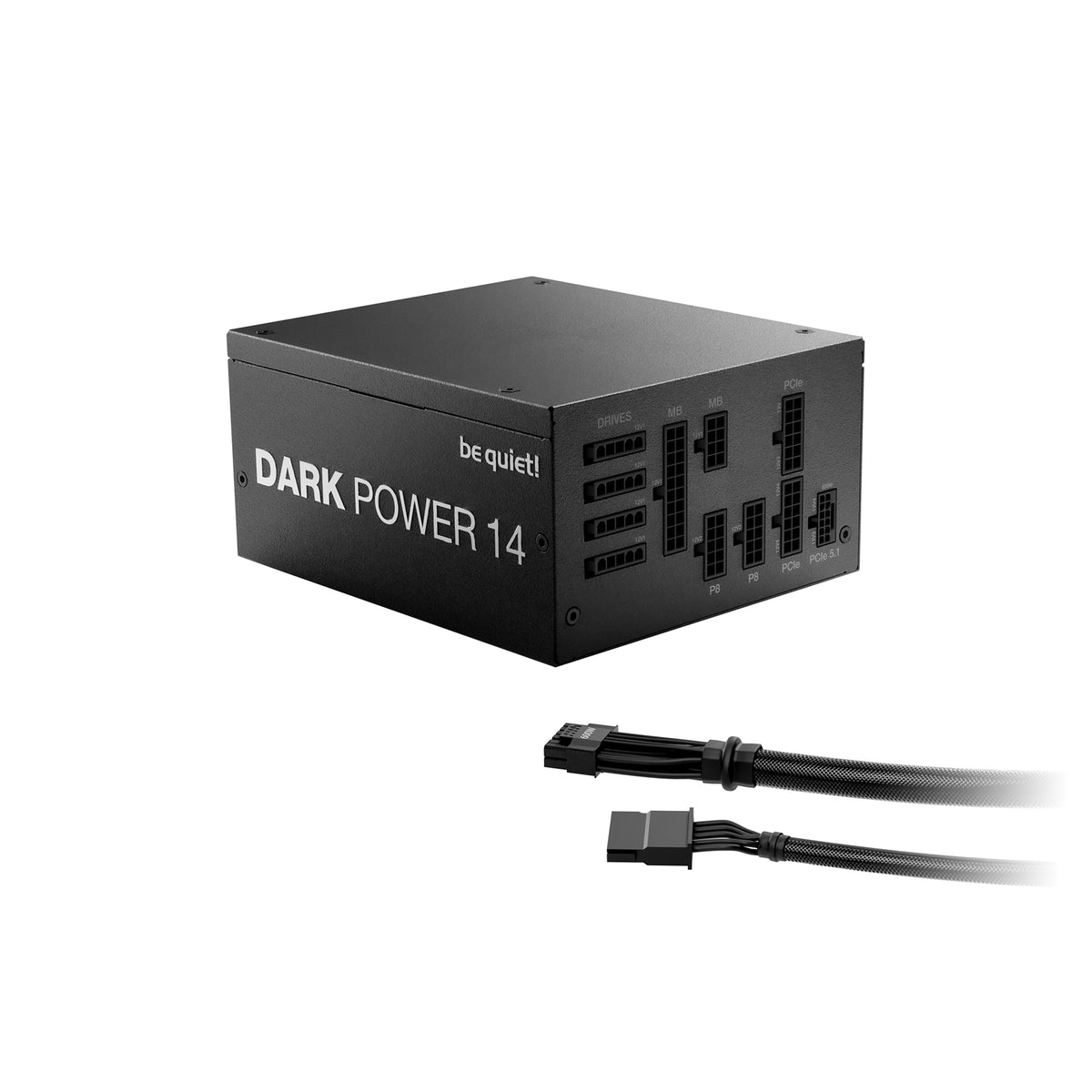

Fully modular sleeved cables
Clean, clutter-free builds with cables up to 120cm in length. -
Premium components
High-end 105°C Japanese capacitors for durability. -
Long-term reliability
Backed by a 10-year manufacturer’s warranty.
Specifications
| Category | Details |
|---|---|
| Model | Dark Power 14 | 1200W Titanium Power Supply |
| Output Power | 1200W continuous / 1300W peak |
| Efficiency | 80 PLUS Titanium (up to 95.4% efficiency) |
| Voltage Rails | 4 x 12V rails (switchable to single-rail using OCK button) |
| ATX Form Factor | ATX 3.1 |
| Connectors | 1 x ATX 20+4-pin |
| 1 x 4+4-pin CPU | |
| 1 x 8-pin CPU | |
| 2 x 12V-2x6 PCIe 5.1 | |
| 4 x 6+2-pin PCIe | |
| 13 x SATA | |
| 2 x PATA | |
| Fan | 135mm be quiet! Silent Wings (FDB, 6-pole motor) |
| Fan Speed Control | Active or semi-passive selectable |
| Post-Ventilation | 2–5 minutes cooldown |
| Fan Noise | 8 dB(A) at 10–20% load |
| 21.1 dB(A) at 100% load | |
| Power Input | 200–240V AC, 50/60Hz |
| Power Output | 12V DC (up to 1200W combined) |
| 3.3V + 5V combined: 120W | |
| Cable Set | Fully modular sleeved cables (up to 120cm) |
| ATX, EPS, PCIe 5.1, PCIe 6+2, SATA, PATA | |
| Special Features | Titanium efficiency, selectable cooling modes, overclocking switch, ultra-low ripple, premium capacitors, silent fan design |
| Protection | OTP, OCP, OPP, OVP, UVP, SIP (no SCP listed) |
| Dimensions (L x W x H) | 175 x 150 x 86 mm (without cables) |
| Warranty | 10-year manufacturer’s warranty |
