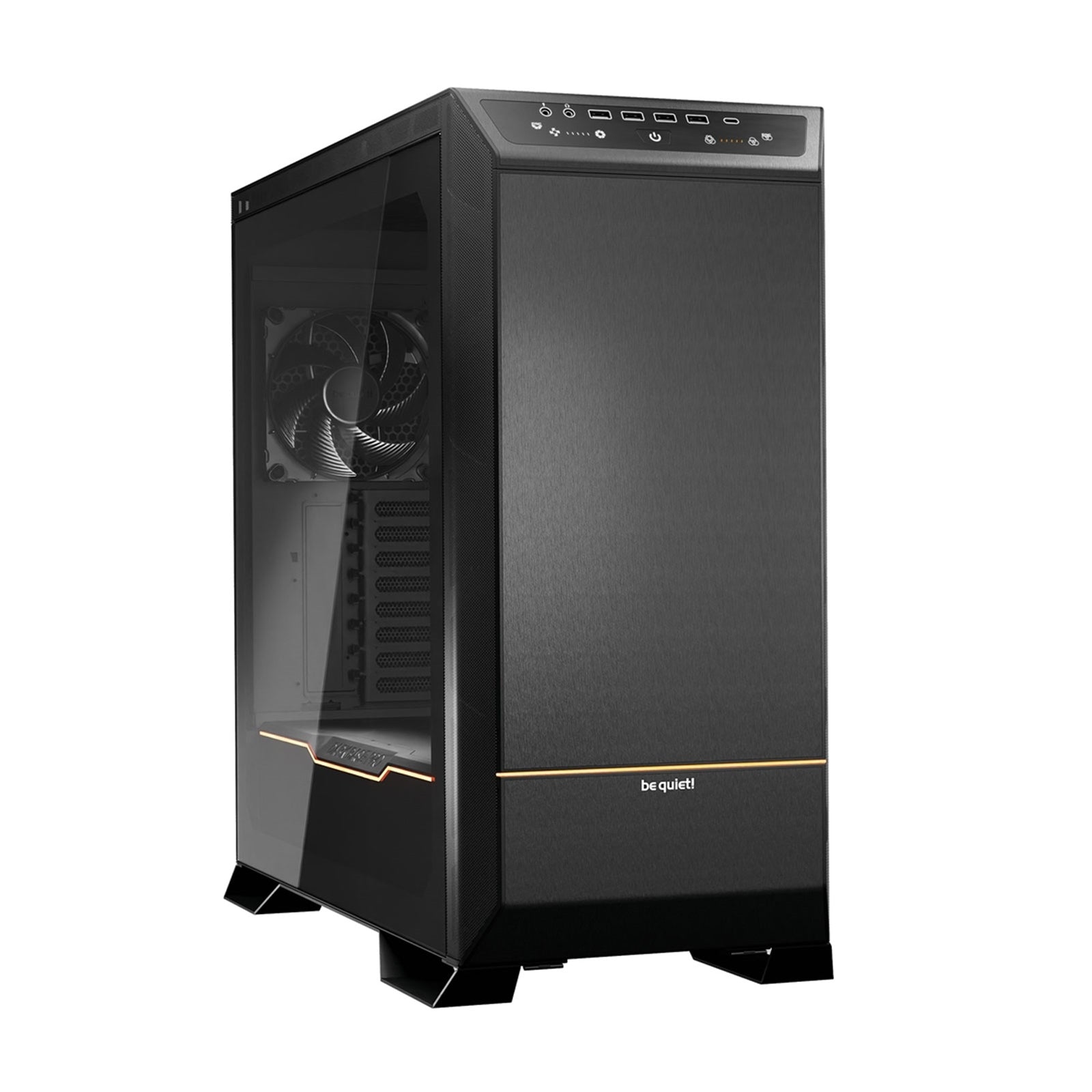

Dark Base Pro 901 PC Case
Interchangeable Top and Front Panels
The best case in any situation
Whether you prefer virtually inaudible operation or maximum performance, the Dark Base Pro 901 is engineered to adapt. It includes both silence-oriented and performance-optimized solutions for the top and front, with all panels supplied in the box. A user-friendly mounting system makes switching between setups quick and easy.
Maximum Usability
For professional and casual builds
Dark Base Pro 901 delivers the functions enthusiasts expect from a high-end case.
Key usability features include:
- Detachable top and front brackets for convenient radiator and fan installation
- Included fan hub and pogo pin connector for streamlined connections
- Intuitive rail system for effortless inverted layouts
- Numerous smart integration details for easy handling
The case can be deployed without dealing with additional screws and small parts, making it an optimal choice for virtually any build.
Silent Wings 4 PWM Fans
3 pre-installed fans for maximum airflow
Dark Base Pro 901 comes with three pre-installed Silent Wings 4 140mm PWM fans.
Features include:
- Silence-optimized fan blades
- Funnel-shaped fan frame
- Balance of virtually inaudible operation and high performance
- Extraordinary air pressure to significantly enhance cooling performance in Dark Base Pro 901
Think Big
Generous dimensions for radiators up to 420 mm
With its large overall size, Dark Base Pro 901 gives you room to create. The front supports radiators up to 420 mm, and additional fans can be installed throughout the case, including on the side panel.
Flexible VGA Holder and Cable Bars
For a neat interior
The versatile VGA holder prevents GPU sag, even with heavy graphics cards. Two integrated cable bars—one inside the VGA holder and one next to the motherboard tray—help hide cables for a clean, organized interior. No matter how big or numerous your components are, these clever features ensure the final build always looks impressive.
ARGB Lighting and Convenient Features
Dark Base Pro 901 features ARGB lighting on the front and the PSU shroud. The illuminated areas are carefully positioned to keep the case elegant, with subtle and stylish lighting effects.
Additional conveniences:
- Touch-sensitive buttons on the I/O panel to control lighting and fan settings
- Wireless charger for Qi-enabled devices integrated into the case
Tempered Glass Window
A perfect view inside your PC
Showcase your build with the high-quality, fully windowed side panel. The window is made of tinted, tempered glass with black painted edges, providing a premium view of the components inside.
Specifications
Materials & Color
| Specification | Detail |
|---|---|
| Material | Steel (SGCC), ABS plastic, Aluminum |
| Color option | Black |
Drive Bays
| Drive Bays | Capacity | Included |
|---|---|---|
| 2.5" | up to 16x | 6 |
| 3.5" | up to 7x | 2 |
| 5.25" | up to 1x | 1 |
I/O Panel
| Ports & Controls |
|---|
| 1x USB 3.2 Gen 2 Type-C |
| 4x USB 3.2 |
| HD Audio (mic + audio) |
| Fan controller |
| ARGB controller |
Motherboard Compatibility
| Form Factor |
|---|
| E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX |
Case Dimensions & Weight
| Specification | Measurement (mm) | Other |
|---|---|---|
| Case size excl. stands (L x W x H) | 604 x 254 x 539 | |
| Case size incl. stands (L x W x H) | 604 x 275 x 569 | |
| Volume | 82.69 l | |
| Weight | 16.3 kg |
PSU
| Specification | Detail |
|---|---|
| PSU form factor | ATX PS/2 |
Expansion
| Specification | Detail |
|---|---|
| Expansion slots | 8 |
Pre-Installed Fans
| Position | Fans |
|---|---|
| Top | - |
| Front | 2x Silent Wings 4 140mm PWM |
| Side | - |
| Rear | 1x Silent Wings 4 140mm PWM |
| Bottom | - |
Maximum Component Dimensions
| Component | Maximum Size (mm) |
|---|---|
| CPU cooler | up to 190 |
| PSU | up to 288 |
| GPU | 495 |
| ATX motherboard | 350 (with HDD cage) |
| E-ATX motherboard | 370 (with HDD cage) |
Silent Wings 4 Fan Specifications
| Specification | Front / Rear Fans |
|---|---|
| Dimensions (L x W x H) (mm) | 140 x 140 x 25 |
| Fan speed at 100% PWM / 12V (rpm) | 1900 |
| Airflow at 100% PWM / 12V (CFM / m³/h) | 78.4 / 133.20 |
| Air pressure at 100% PWM / 12V (mm H₂O) | 2.36 |
| Noise level at 100% PWM / 12V (dB(A)) | 29.3 |
| Voltage range (V DC) | 12 |
| Input power (W) | 4.8 |
| Input current (A) | 0.4 |
| Connector | 4-pin PWM |
| Lifespan (h / 25°C) | 300,000 |
| Fan controller | - |
Maximum Fan Installation
| Position | Maximum Fans |
|---|---|
| Top | 3x 140 / 3x 120 mm |
| Front | 3x 140 / 3x 120 mm |
| Side | 3x 120 mm |
| Rear | 1x 140 / 1x 120 mm |
| Bottom | 1x 140 / 1x 120 mm |
| PSU shroud | - |
| Total Maximum Fans | 11 |
|---|---|
