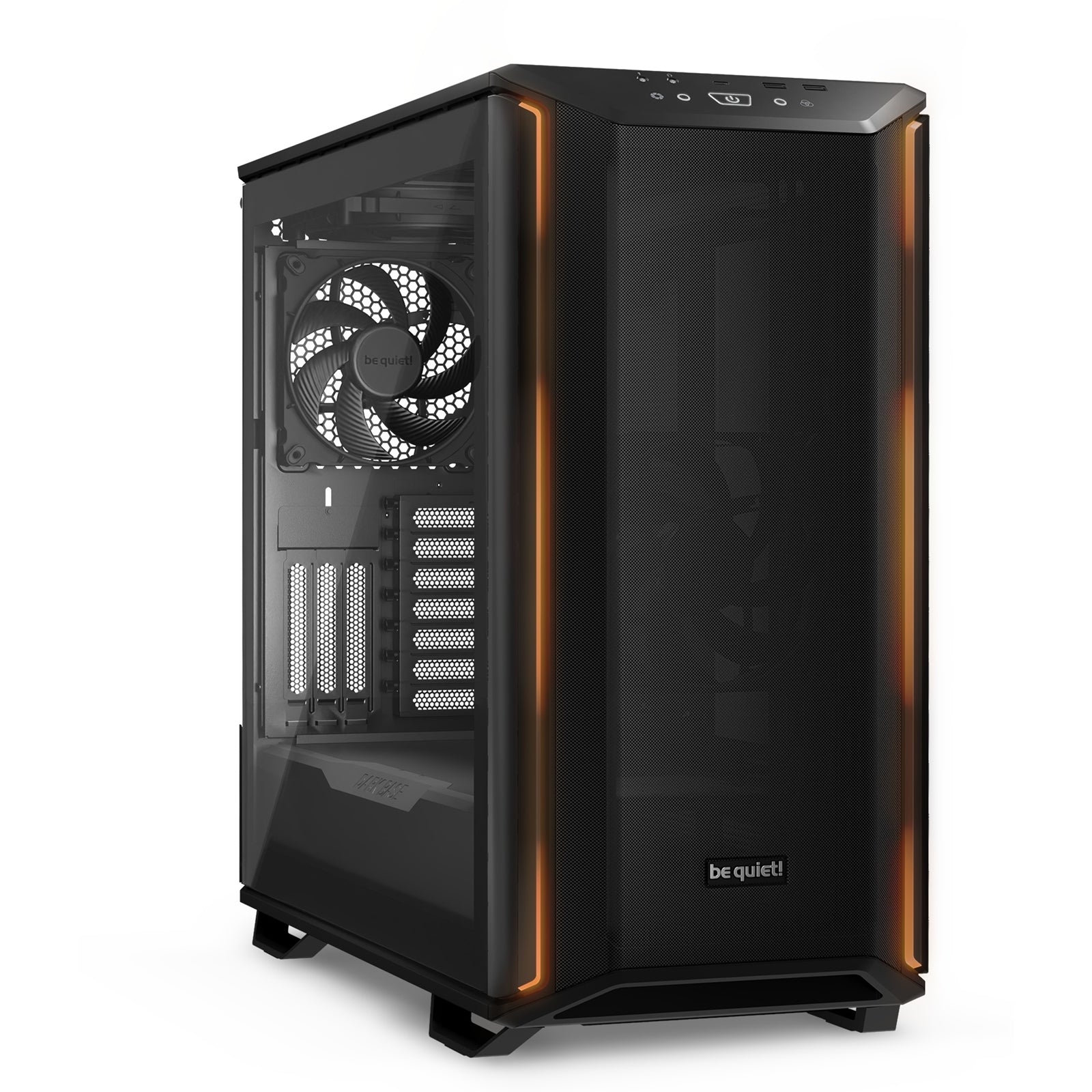

Dark Base 701 Black – Maximum Airflow, Performance & Usability
The Dark Base 701 Black is engineered for uncompromising airflow and outstanding usability. With a highly open mesh design, powerful pre-installed fans, and integrated ARGB lighting, this high-end PC case delivers maximum performance with a clean, professional look.
Key Features
- Open mesh design for exceptional airflow and high performance
- 3 pre-installed Silent Wings 4 140mm PWM high-speed fans for maximum cooling
- Integrated fan controller with PWM motherboard sync option
- PWM and ARGB hub for up to 8 PWM fans and 2 ARGB components
- Subtle ARGB lighting with integrated ARGB controller
- Excellent usability with removable fan and radiator brackets at the top and front
- Versatile motherboard tray with option for inverted layout
- Tool-less installation of HDDs and SSDs
- Cable routing channels for professional cable management and a tidy interior
- Tempered glass side window for a clear view of your components
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
Specifications
General Data
| Specification |
Detail |
| Model |
Dark Base 701 Black |
| Color option |
Black |
| Motherboard compatibility |
E-ATX (30.5 x 27.5 cm), ATX, M-ATX, Mini-ITX |
| Case size excl. stands (L x W x H), mm |
565 x 249 x 495 |
| Case size incl. stands (L x W x H), mm |
565 x 249 x 523 |
| Volume, l |
69.64 |
| PSU form factor |
ATX PS/2 |
| Weight, kg |
12.8 |
| Expansion slots |
7 + 3 |
Pre-Installed Fans
| Position |
Fan Type |
| Top |
1x Silent Wings 4 140mm PWM high-speed |
| Front |
1x Silent Wings 4 140mm PWM high-speed |
| Rear |
1x Silent Wings 4 140mm PWM high-speed |
| Side |
- |
| Bottom |
- |
Fan Dimensions (L x W x H), mm
- Front: 140 x 140 x 25
- Rear: 140 x 140 x 25
- Top: 140 x 140 x 25
Fan Performance (at 100% PWM / 12V)
| Parameter |
Value |
| Fan speed, rpm |
1900 |
| Airflow, cfm / m³/h |
78.4 / 133.2 |
| Air pressure, mm H₂O |
2.36 |
| Noise level, dB(A) |
29.3 |
| Voltage range, V DC |
12 |
| Input power, W |
4.8 |
| Input current, A |
0.4 |
| Connector |
4-pin PWM |
| Lifespan, h / 25°C |
300,000 |
Fan Controller
- PWM and ARGB Hub
Maximum Fan Installation
| Position |
Maximum Fans |
| Top |
3x 140mm / 3x 120mm |
| Front |
3x 140mm / 3x 120mm |
| Side |
- |
| Rear |
1x 140mm / 1x 120mm |
| Bottom |
1x 140mm / 1x 120mm |
Optional Radiator Installation
| Position |
Supported Radiator Sizes (mm) |
| Top |
120 / 140 / 240 / 280 / 360 |
| Front |
120 / 140 / 240 / 280 / 360 |
| Side |
- |
| Rear |
120 |
| Bottom |
- |
PSU & Graphics Card
| Component |
Maximum Dimensions / Details |
| PSU (excl. bottom fan), mm |
260 |
| PSU (incl. bottom fan), mm |
260 |
| GPU with HDD cage installed, mm |
415 |
| GPU with HDD cage removed, mm |
415 |
| Maximum PCIe slots (vertical GPU) |
3 |
Drive Bay Capacity
| Drive Type |
Scope of Delivery |
Maximum |
| 5.25" bays |
- |
- |
| 3.5" slots |
3 |
5 |
| 2.5" slots |
2 |
3 |
Cooling & Airflow
| Specification |
Detail |
| Max. CPU cooler height, mm |
185 |
| Airflow channel |
Front / Top / Rear / Bottom |
Lighting
| Lighting Feature |
Detail |
| LED illumination |
Yes |
| LEDs, pcs. |
48 |
| LED type |
ARGB - 5V |
| Sync with controller/motherboard |
Yes |
I/O Panel
| Port / Feature |
Detail |
| USB 3.2 Gen. 2 Type-C |
1 |
| USB 3.2 Type-A |
2 |
| USB 2.0 |
- |
| HD Audio I/O |
Mic + Audio |
| Qi charger / Quick Charging |
- |
Insulation & Damping
| Feature |
Detail |
| Top panel insulation mats |
- |
| Front panel insulation mats |
- |
| Side panel insulation mats |
? |
| Anti-vibration decoupled HDD |
? |
| Anti-vibration decoupled fan |
? |
| Anti-vibration decoupled PSU |
? |
| Anti-vibration decoupled motherboard tray |
? |
Dust Filters
| Position |
Removable Dust Filter |
| Top |
- |
| Front |
1 |
| Side |
- |
| Bottom |
1 |
Materials
| Part |
Material |
| Top cover |
Steel |
| Front panel |
Steel |
| Side panel |
Glas |
| Side panel window |
Steel |
| Stands |
ABS |
Safety Certification
Scope of Delivery
- Screw set (Drives/Motherboard)
- Additional standoffs: 1 (for E-ATX)
- Cable ties: 9 (Velcro)
| Included Accessory |
Detail |
| SSD bracket for PSU shroud |
- |
| LED strips, pcs. |
- |
| Screw box |
- |
| VGA holder |
- |
| VGA holder for inverted layout |
- |
| Mesh Front Panel |
? |
| ODD Bracket |
- |
| Fan / Radiator bracket for multi mounting panel |
- |
Service
| Service Feature |
Detail |
| Warranty, years |
3 |
| International hotline / free of charge |
? / DE, FR |
Logistics Data
| Parameter |
Detail |
| Article number |
BGW58 |
| EAN code |
4260052190654 |
| Package dimensions (L x W x H), mm |
594 x 343 x 670 |
| Gross weight (package), kg |
15.5 |
| Pieces per packaging unit |
1 |
