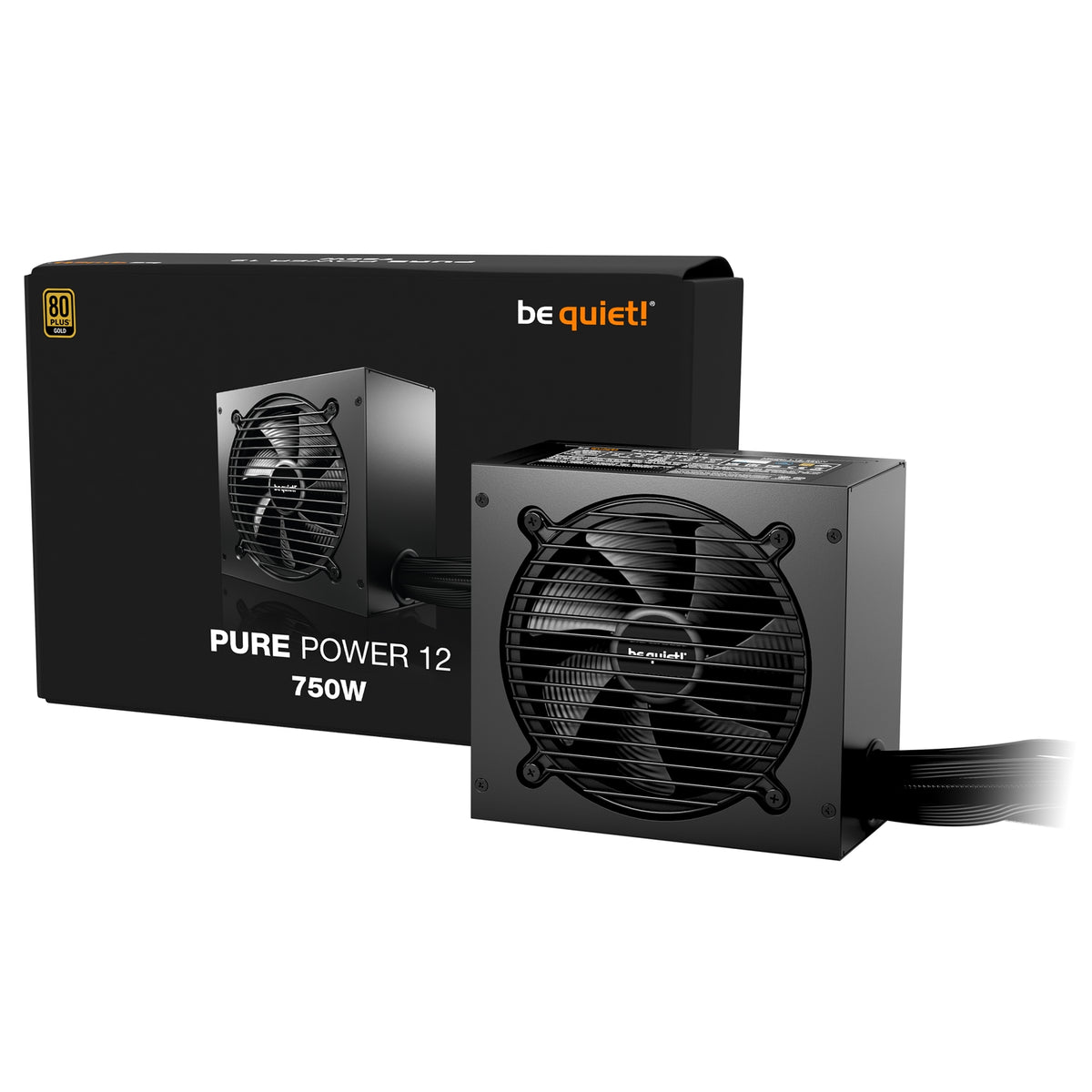

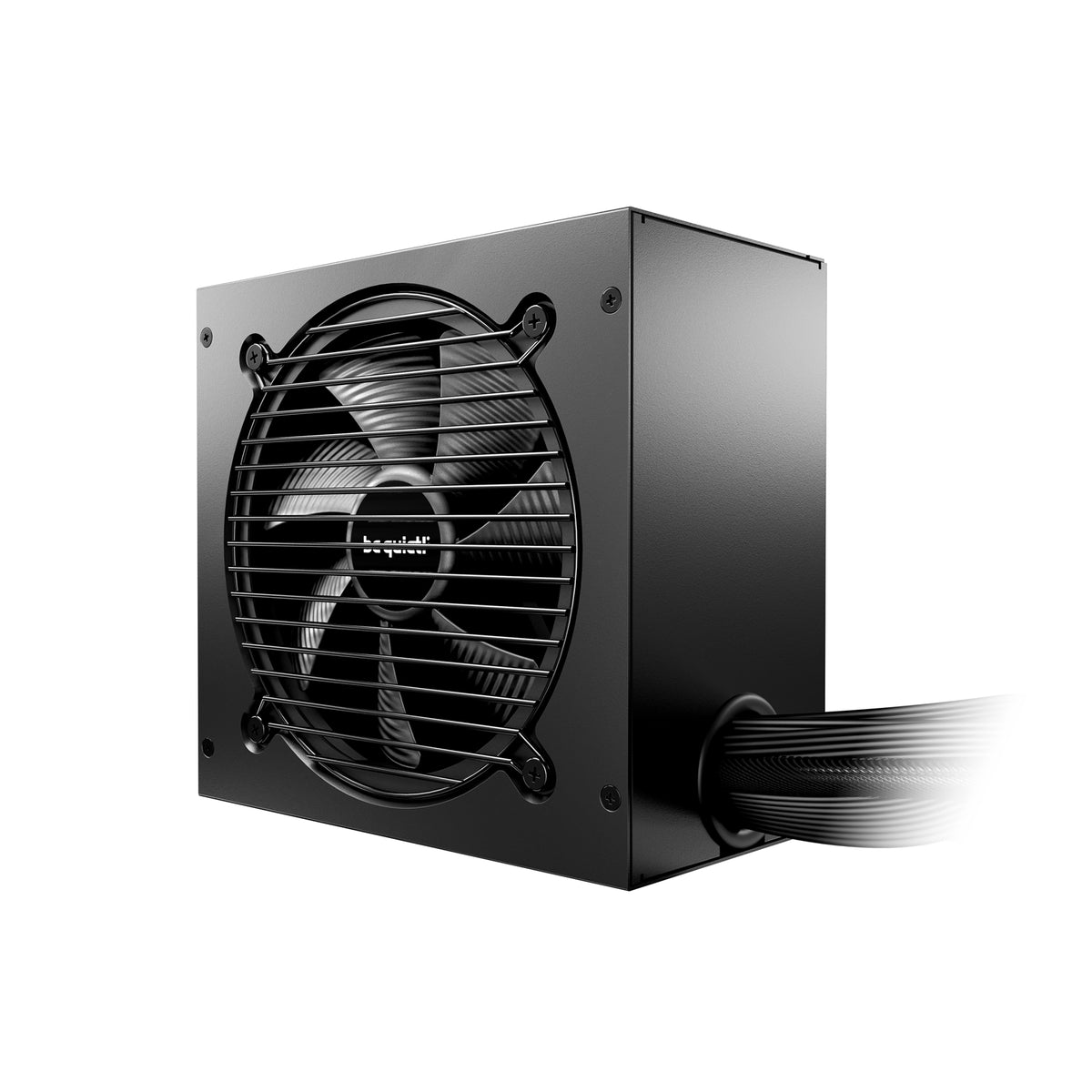

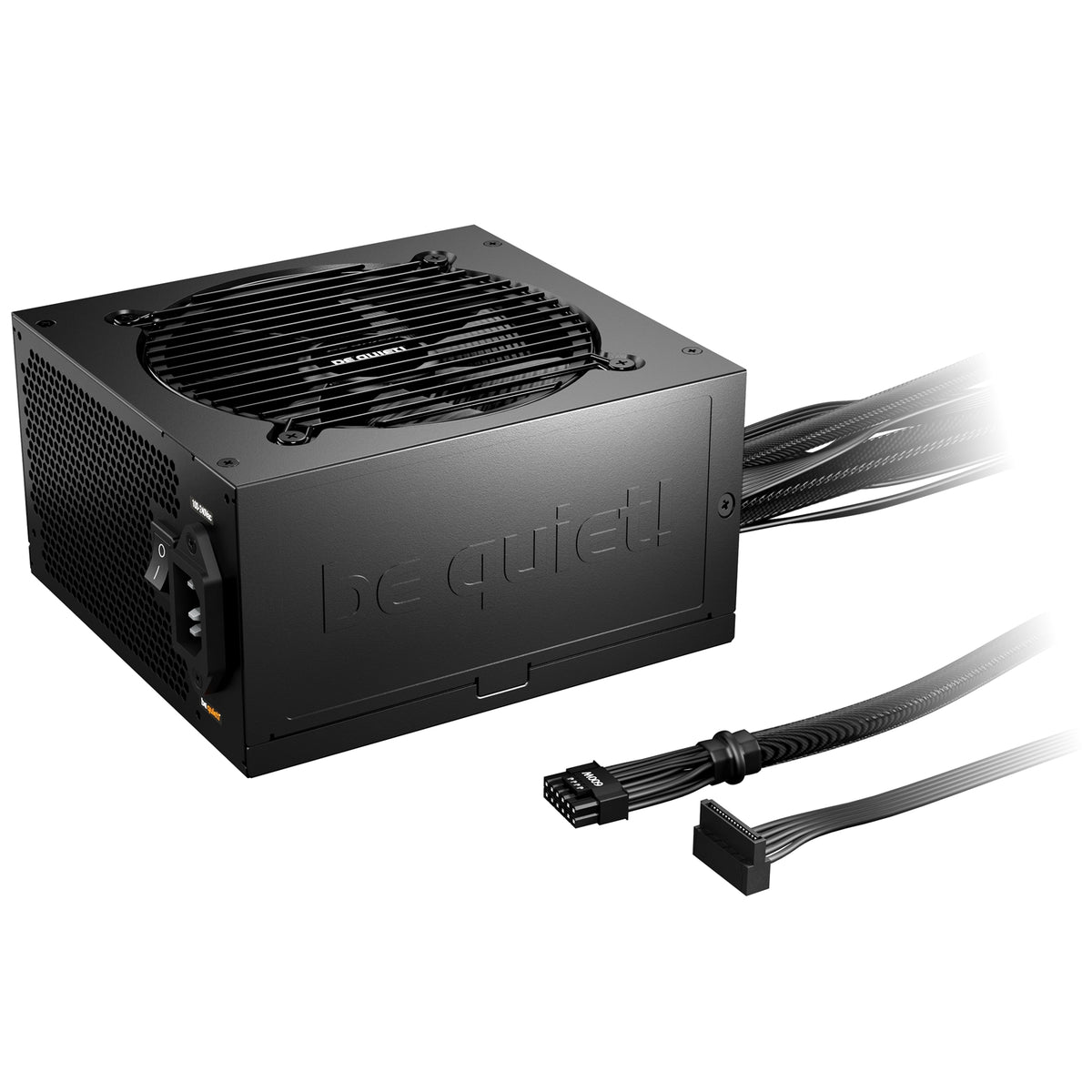

be quiet! Pure Power 12 750W 80+ Gold Wired Power Supply
The be quiet! Pure Power 12 750W 80+ Gold Wired Power Supply delivers reliable, efficient power for modern PC builds. Designed to be ATX 3.1 compliant and fully PCIe 5.1 compatible, it is well-suited to contemporary systems, including gaming rigs and silent PCs.
With 80 PLUS® Gold efficiency and advanced LLC technology, this PSU offers high stability, reduced power consumption, and quiet operation, backed by a 10-year manufacturer’s warranty.
Key Features
- 80 PLUS® Gold efficiency
- Up to 92.8% efficiency
-
Lower power consumption and reduced energy costs
-
ATX 3.1 and PCIe 5.1 ready
- Full support for PCIe 5.1 GPUs
-
Compatible with GPUs using 6+2 pin connectors
-
Exceptionally silent cooling
- 120mm be quiet! fan
- Temperature-controlled fan speed
-
Fan noise of 22.5 dB(A) at 100% load
-
High stability and reliability
- Advanced stability and voltage regulation with LLC technology
- One massive high-performance 12V rail
-
Future-proof design and robust 12V rail
-
GPU-ready connectivity
- One PCIe 5.1 12V-2x6 600W connector
-
Three PCIe 6+2-pin connectors for overclocked high-end GPUs
-
Long-term peace of mind
- 10-year manufacturer’s warranty
Full Specifications
| Specification | Details |
|---|---|
| Model | Pure Power 12 750W 80+ Gold Wired Power Supply |
| Output Power | 750W |
| Efficiency | 80+ Gold (up to 92.4% efficiency) |
| Voltage Rails | Single rail |
| ATX Form Factor | ATX 3.1 |
| Power Input | 100–240V AC, 50/60Hz |
| Power Output | 12V DC |
| Fan | 120mm be quiet! Silent Fan |
| Fan Speed Control | Temperature-controlled |
| Fan Noise (at 100%) | 22.5 dB(A) |
| Cable Set | Standard ATX cables, PCIe 5.1, PCIe 6+2, SATA, 4-pin Molex |
| Special Features | Future-proof design, robust 12V rail, high stability, silent operation |
| Warranty | 10-year manufacturer’s warranty |
| Dimensions (L x W x H, without cable) | 160 x 86 x 150 mm |
Connectors
- PCIe / GPU
- 1 x 12VHPWR (PCIe 5.1 12V-2x6 600W)
-
3 x 6+2-pin PCIe
-
CPU
- 1 x 4+4-pin CPU +12V (EPS)
-
1 x 8-pin CPU +12V (EPS)
-
Drives & Peripherals
- 6 x SATA
- 1 x 4-pin Molex
