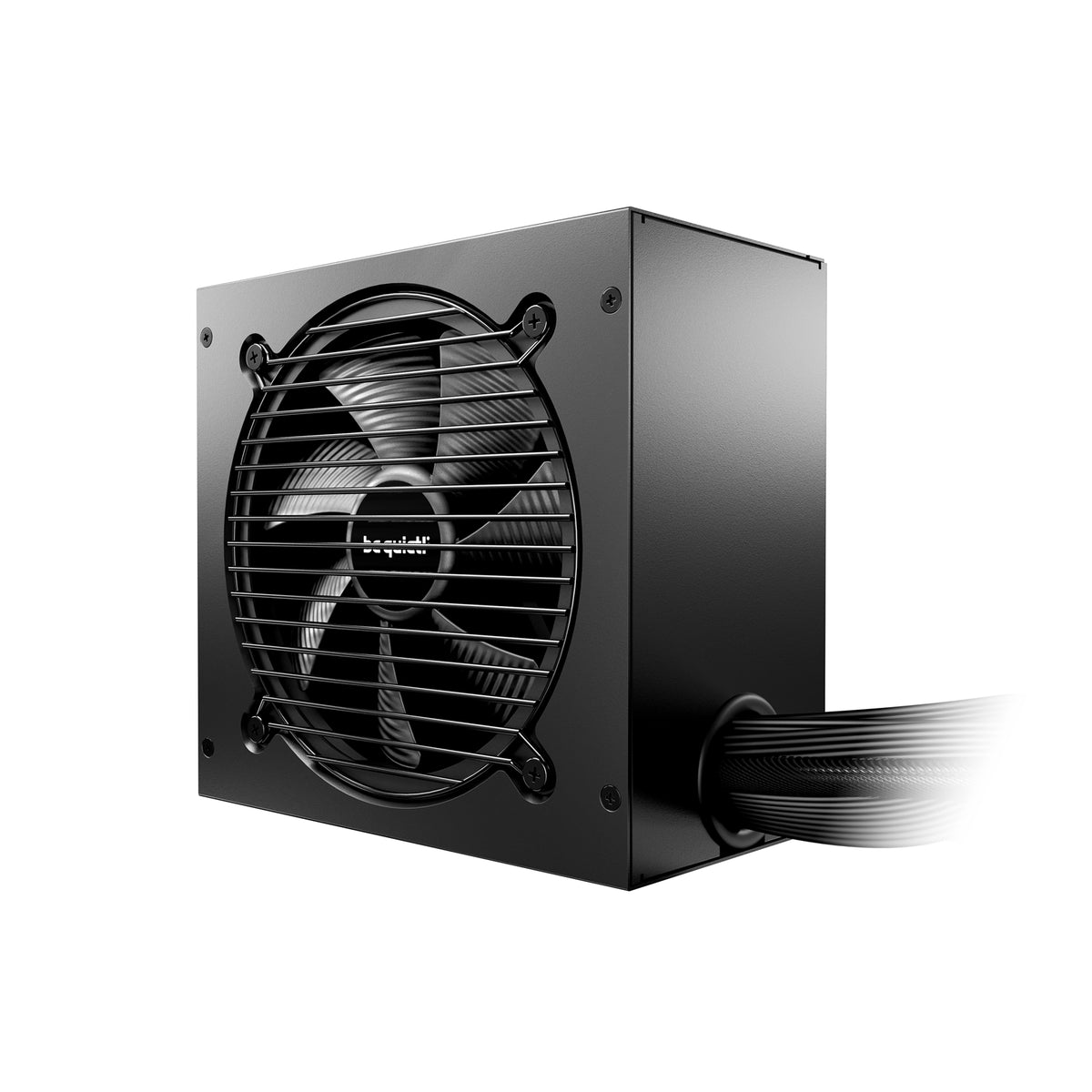

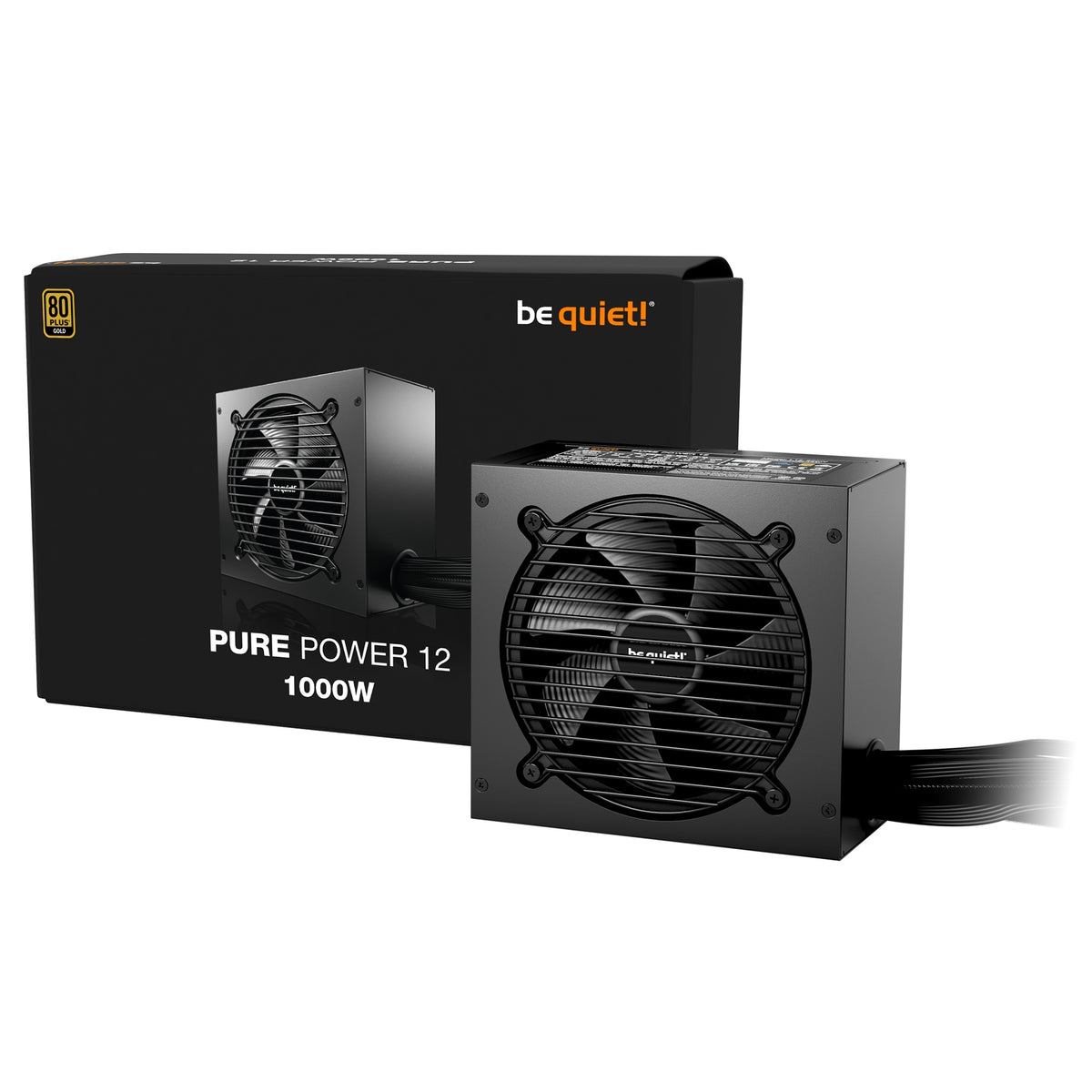

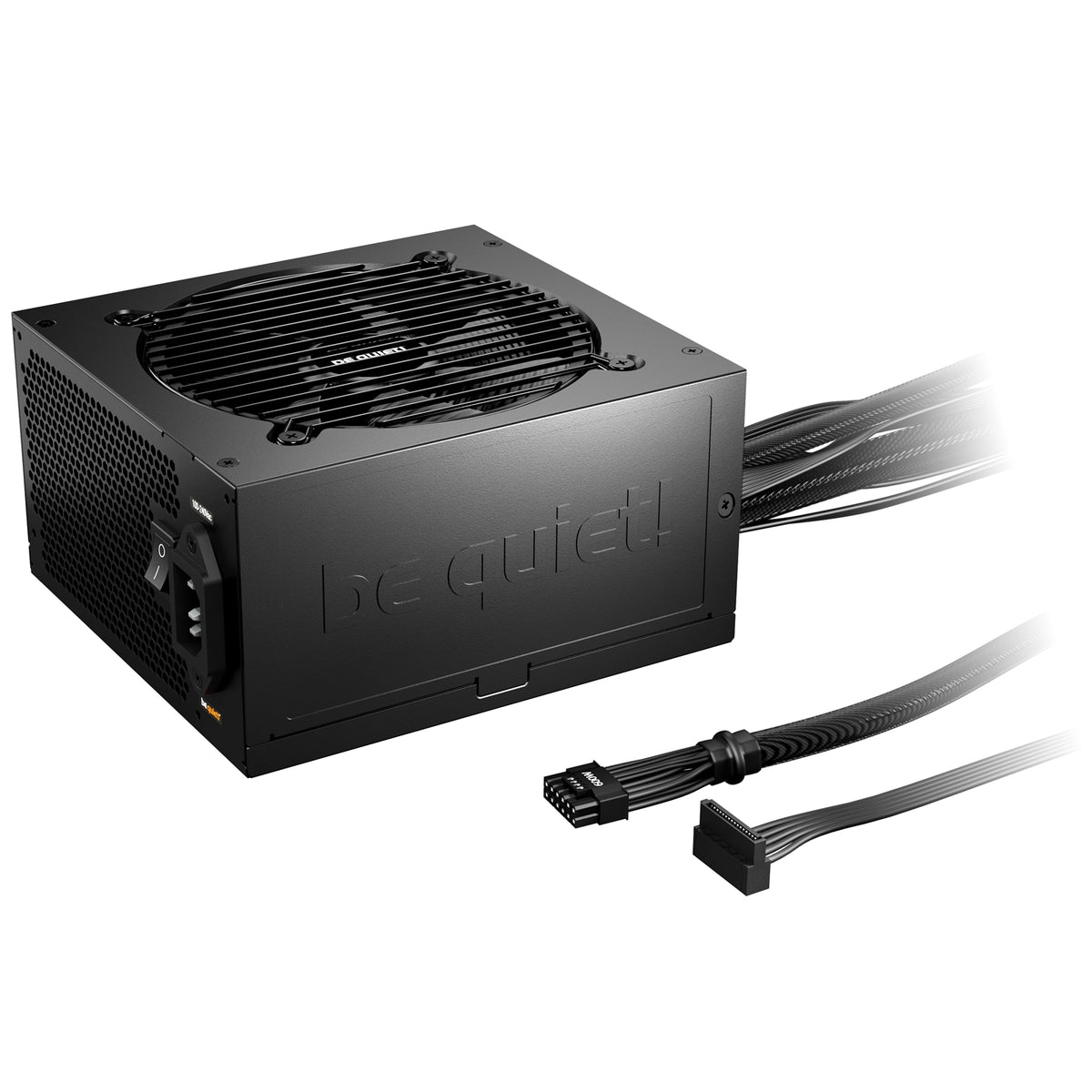

be quiet! Pure Power 12 1000W 80+ Gold Wired Power Supply
The be quiet! Pure Power 12 1000W 80+ Gold Wired Power Supply is engineered to deliver reliable, efficient power for modern PC builds. Designed to be ATX 3.1 compliant and PCIe 5.1 compatible, it supports the latest graphics cards and components while maintaining exceptionally quiet operation.
With its 80 PLUS® Gold certification (up to 92.9% efficiency), this PSU offers high energy efficiency, lower power consumption, and reduced running costs, making it suitable for both powerful gaming rigs and quiet systems.
Key Features
- 80 PLUS® Gold efficiency – Up to 92.9% efficiency for reduced energy usage
- ATX 3.1 compliant – Fully supports modern ATX 3.1 systems
- PCIe 5.1 support – Compatible with PCIe 5.1 GPUs and GPUs using 6+2 pin connectors
- Exceptionally silent cooling – 120mm be quiet! fan for low-noise operation
- Advanced stability – LLC technology for improved voltage regulation and stability
- High-performance 12V rail – Single, robust 12V rail for reliable power delivery
- GPU-ready connectivity
- 1 x PCIe 5.1 12V-2x6 600W connector
- 3 x PCIe 6+2-pin connectors for overclocked high-end GPUs
- Future-proof design – Built with modern standards and connectivity in mind
- 10-year manufacturer’s warranty
Full Specifications
| Specification | Detail |
|---|---|
| Model | Pure Power 12 1000W 80+ Gold Wired Power Supply |
| Output Power | 1000W |
| Efficiency | 80+ Gold (up to 92.9% efficiency) |
| Voltage Rails | Single rail |
| ATX Form Factor | ATX 3.1 |
| Connectors | 1 x 12VHPWR |
| 1 x 4+4-pin CPU +12V (EPS) | |
| 1 x 4-pin Molex | |
| 3 x 6+2-pin PCIe | |
| 1 x 8-pin CPU +12V (EPS) | |
| 6 x SATA | |
| Fan | 120mm be quiet! Silent Fan |
| Fan Speed Control | Temperature-controlled |
| Fan Noise | 31.6 dB(A) at 100% |
| Power Input | 100–240V AC, 50/60Hz |
| Power Output | 12V DC |
| Cable Set | Standard ATX cables, PCIe 5.1, PCIe 6+2, SATA, 4-pin Molex |
| Special Features | Future-proof design, robust 12V rail, high stability, silent operation |
| Warranty | 10-year manufacturer’s warranty |
| Dimensions (L x W x H, mm) | 160 x 86 x 150 (without cables) |
The be quiet! Pure Power 12 1000W 80+ Gold Wired Power Supply combines high efficiency, modern standards compliance, and silent operation, making it a strong choice for demanding and up-to-date PC configurations.
