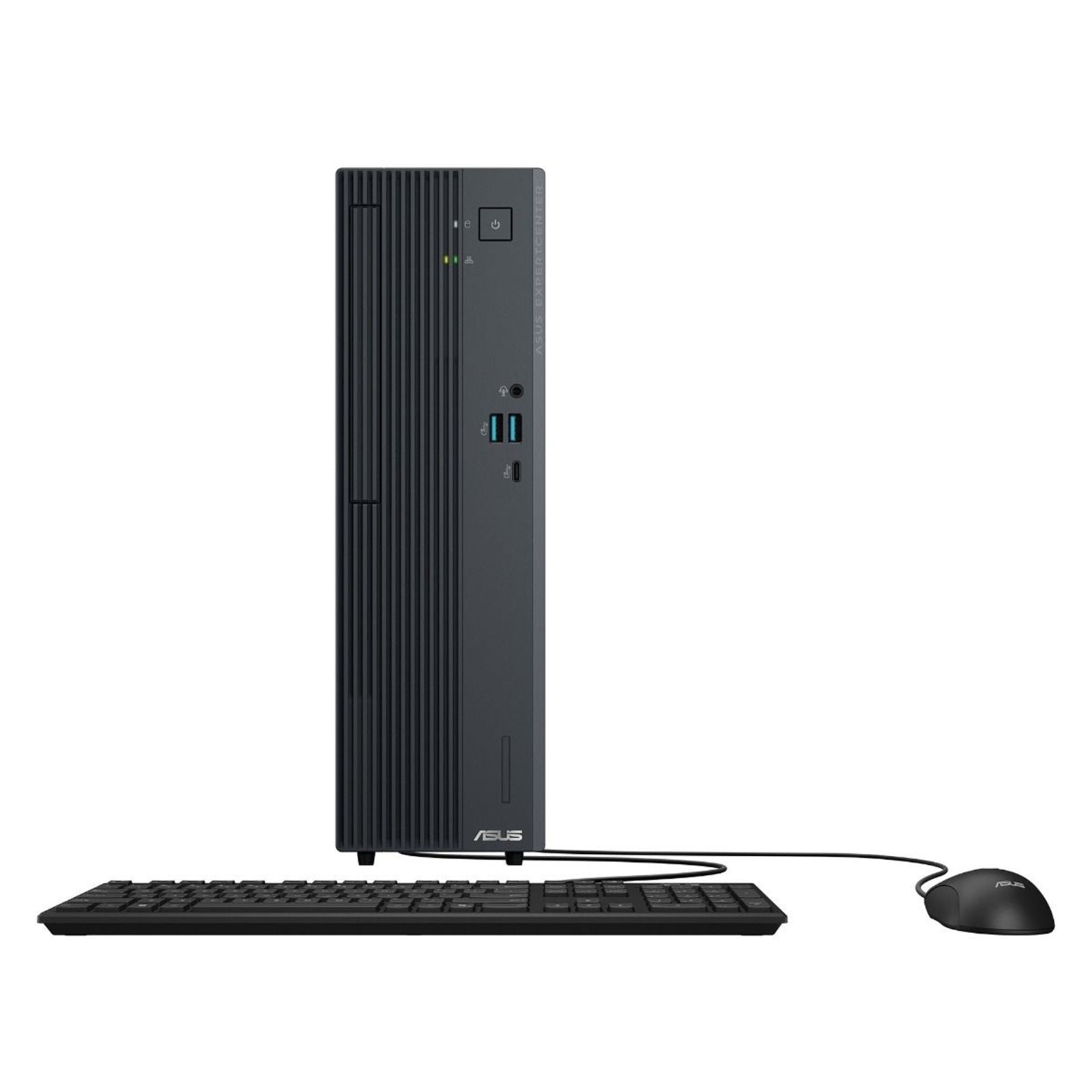

ASUS ExpertCenter P500 SFF (90PF05A1-M005Z0) Desktop PC
Introducing the ASUS ExpertCenter P500 SFF — a compact, space-saving desktop PC designed for professionals who need reliable performance in a small footprint. Powered by an Intel® Core™ i5-13420H octa-core processor and a fast 512 GB NVMe SSD, this system delivers responsive multitasking and rapid boot times for home offices, creative work, and demanding business environments.
Key Features
- Powerful Performance: Intel® Core™ i5-13420H processor with 8 cores and 12 threads for smooth multitasking
- Fast Storage: 512GB M.2 NVMe PCIe 4.0 SSD for quick load and response times
- Expandability: Easily upgrade memory and storage with multiple slots and ports
- Compact Small Form Factor: Space-efficient design ideal for modern workspaces
- Reliable Connectivity: Wi-Fi 6, Bluetooth® 5.4, and a comprehensive selection of I/O ports
- Security Focused: TPM 2.0, HDD password protection, and Kensington Security Slot™
- Energy & Eco Certifications: EPEAT Silver, ENERGY STAR® 9.0, RoHS, and REACH compliant
Specifications
Colour & Operating System
- Colour: Gray
- Operating System: Non-preinstalled OS
Performance
| Component | Specification |
|---|---|
| Processor | Intel® Core™ i5-13420H (2.1 GHz, up to 4.6 GHz, 12MB Cache, 8 cores, 12 threads) |
| Memory | 16GB DDR5 SO-DIMM |
| Memory Slots | 2x DDR5 SO-DIMM slots |
| Max Memory | Up to 64GB |
Storage
| Type | Specification |
|---|---|
| Primary Storage | 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD |
| SATA Ports | 2x SATA 6.0Gb/s ports |
| Optical Drive | None |
Graphics & Expansion
| Feature | Specification |
|---|---|
| PCIe Slot | 1x PCIe® 4.0 x16 (operating at PCIe® 4.0 x8) |
| M.2 (Storage) | 2x M.2 2280 connectors for storage |
| M.2 (Wi-Fi) | 1x M.2 connector for Wi-Fi |
| Memory Slots | 2x DDR5 SO-DIMM slots |
Audio & Network
| Feature | Specification |
|---|---|
| Audio | High Definition 7.1 Channel Audio |
| Wireless | Wi-Fi 6 (802.11ax) Dual-band 2x2 + Bluetooth® 5.4 |
Front I/O Ports
- 1x 3.5mm combo audio jack
- 2x USB 3.2 Gen 1 Type-A
- 1x USB 3.2 Gen 1 Type-C
Rear I/O Ports
- 1x RJ-45 Gigabit Ethernet
- 1x HDMI 1.4
- 1x DisplayPort 1.4
- 1x 7.1 channel audio (microphone, line-out, line-in)
- 1x Kensington lock
- 4x USB 2.0 Type-A
Power
| Feature | Specification |
|---|---|
| Power Supply | 180W power supply (80+ Bronze, peak 228W) |
Design
| Dimension / Weight | Specification |
|---|---|
| Dimensions (W x D x H) | 9.30 x 29.60 x 30.90 cm |
| Weight | 5.06 kg (11.16 lbs) |
| Cooling | Air cooler |
Security Features
- Kensington Security Slot™
- HDD User Password Protection
- Discrete Trusted Platform Module (TPM) 2.0
Software
- Built-in Apps: MyASUS
- MyASUS Features: System diagnosis, Fan profile, AppDeals
Accessories (Optional, Included in the Box)
- Wired optical mouse (USB)
- Wired keyboard (USB)
Certifications
- EPEAT Silver
- ENERGY STAR® 9.0
- RoHS
- REACH
Offers
- 1-month Adobe Creative Cloud Hard Bundle (eligible markets only)
The ASUS ExpertCenter P500 SFF brings professional-grade performance and expandability to a compact, efficient desktop platform, making it a strong choice for modern business and creative workloads.
