ASRock A620AM PRO-A WIFI AMD Socket AM5 Motherboard, 4 x DDR5 Slots, 3x M.2 Socket, 2.5GbE LAN, Wi-Fi 6E, 1x HDMI Port

ASRock A620AM Pro-A WiFi Motherboard (Micro ATX, AM5)

The ASRock A620AM Pro-A WiFi brings the modern Race Sport (RS) Edition design to the popular PRO series, delivering an ideal balance of performance, stability, and connectivity for AMD Ryzen systems.

Key Features

Optimized Power & Overclocking

• 6+2+1 Power Phase Design with Dr.MOS
  Sturdy components and smooth power delivery help enhance CPU performance, especially for gaming workloads. Dr.MOS integrated power stages are optimized for synchronous buck voltage applications, providing higher current and improved thermal efficiency over traditional MOSFETs for enhanced stability.

• Hi-Density Power Connector
  Designed to withstand higher currents than traditional CPU and ATX power connectors, supporting CPU overclocking with a more stable power supply and reduced risk during heavy overclocking.

• 6-Layer PCB
  Six-layer PCB design offers stable signal traces and efficient power routing, supporting lower temperatures and higher energy efficiency for memory overclocking and the latest DDR5 modules.

High-Performance DDR5 Memory

• Dual Channel DDR5 with XMP & EXPO Support
  Built for stability and reliability with high-quality materials. Supports Intel XMP and AMD EXPO memory profiles, allowing enthusiasts to unlock DDR5 overclocking performance simply by enabling pre-tested profiles.

Storage & Expansion

• PCIe 4.0 M.2 Support
  Supports PCI Express 4.0 M.2 SSDs, offering up to twice the speed of PCIe 3.0 for lightning-fast data transfers.

• Multiple M.2 & SATA Options
  Flexible storage configuration with support for NVMe and SATA RAID.

Intelligent Cooling

• Aluminum Heatsink Design
  Optimized aluminum heatsinks help dissipate heat efficiently during heavy gaming and productivity workloads, supporting system stability and long-term durability.

Next-Gen Connectivity

• Wi-Fi 6E (802.11axe)
  Extends WiFi capability into the 6 GHz band, enabling higher speeds, lower latency, and enhanced service levels comparable to 5G networks.

• Dragon 2.5 Gb/s LAN
  Up to 2.5X the bandwidth of standard gigabit Ethernet for demanding home networking, streaming, content creation, and online gaming.

• Front USB 3.2 Gen1 Type-C
  Front-panel USB-C header delivers up to 5 Gbps data transfer with a reversible connector for convenient case front I/O.

Immersive Audio with Nahimic

• Vibrant, Detailed Sound
  Nahimic Audio enhances your listening experience across headphones, headsets, speakers, USB, Wi-Fi, analog, and HDMI outputs.

• Enhanced Communication
  Advanced algorithms improve voice clarity with:

• Static Noise Suppression
• Echo Cancellation
• Lateral Sound Cancellation

• Voice Stabilizer

• Ultimate Gaming Experience

• Sound Tracker: Visual radar that indicates the direction of predominant in-game sounds for 360° audio awareness.
• Device Compatibility: Enjoy high-quality surround sound on your favorite audio devices, with continuous optimization for the best experience.

RGB Lighting & Customization

• POLYCHROME RGB
  Onboard RGB and addressable RGB headers let you connect compatible LED strips, CPU fans, coolers, chassis lighting, and more. Synchronize effects across Polychrome RGB Sync-certified accessories to create personalized lighting setups.

• Signal RGB Integration
  Unified RGB control with game-reactive effects, macro automation, and system monitoring. Enhances compatibility across a wide range of RGB devices and offers extensive customization on ASRock motherboards.

Easy Troubleshooting

• Post Status Checker
  Colored LEDs display real-time status of CPU, DRAM, VGA, and BOOT devices during startup, allowing you to identify system issues at a glance.

Specifications

Unique Features

• Superb Productivity
• Dual Channel DDR5
• Rock-Solid Durability
• 6+2+1 Power Phase, Dr.MOS
• Ultrafast Connectivity: 2.5G LAN, 802.11axe Wi-Fi 6E Module
• EZ Update: BIOS Flashback Button, ASRock Auto Driver Installer
• EZ Troubleshooter: ASRock Post Status Checker

CPU

Chipset

Memory

BIOS

Graphics

Audio

LAN

Wireless LAN & Bluetooth

Expansion Slots

Storage

RAID Support

• RAID 0, 1 for SATA storage devices
• RAID 0, 1, 10 for M.2 NVMe storage devices

USB

Internal Connectors & Headers

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 2 x CPU Fan Connectors (4-pin, Smart Fan Speed Control)
• 3 x Chassis Fan Connectors (4-pin, Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin, Smart Fan Speed Control)
• 1 x 24-pin ATX Power Connector
• 1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (supports 4 x USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (supports 2 x USB 3.2 Gen1 ports)
• 1 x Front Panel Type-C USB 3.2 Gen1 Header

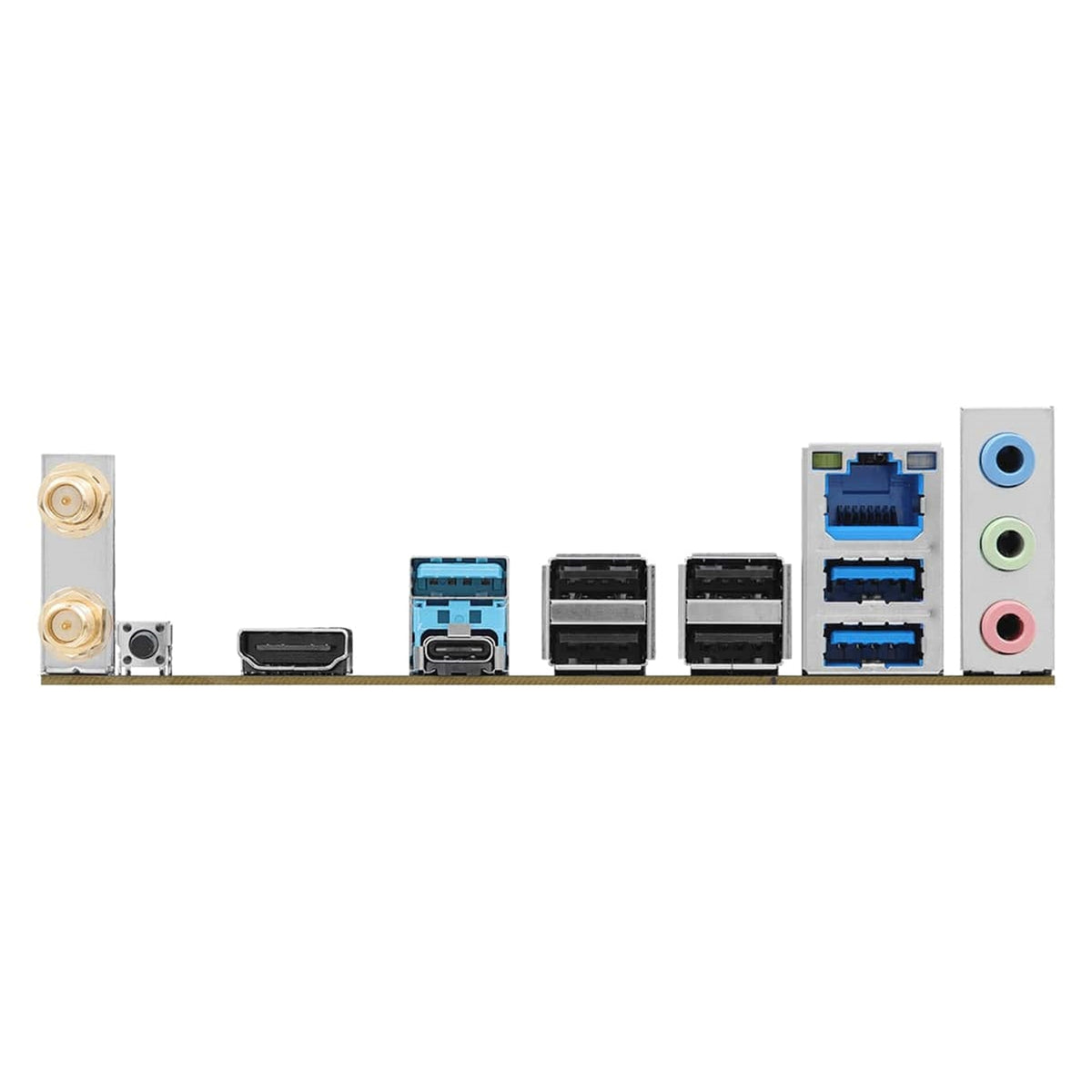

Rear Panel I/O

• 2 x Antenna Ports
• 1 x HDMI Port
• 3 x USB 3.2 Gen1 Type-A Ports
• 1 x USB 3.2 Gen1 Type-C Port
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line In / Front Speaker / Microphone

Software & UEFI

• Software
• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software

• ASRock Polychrome SYNC

• UEFI

• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

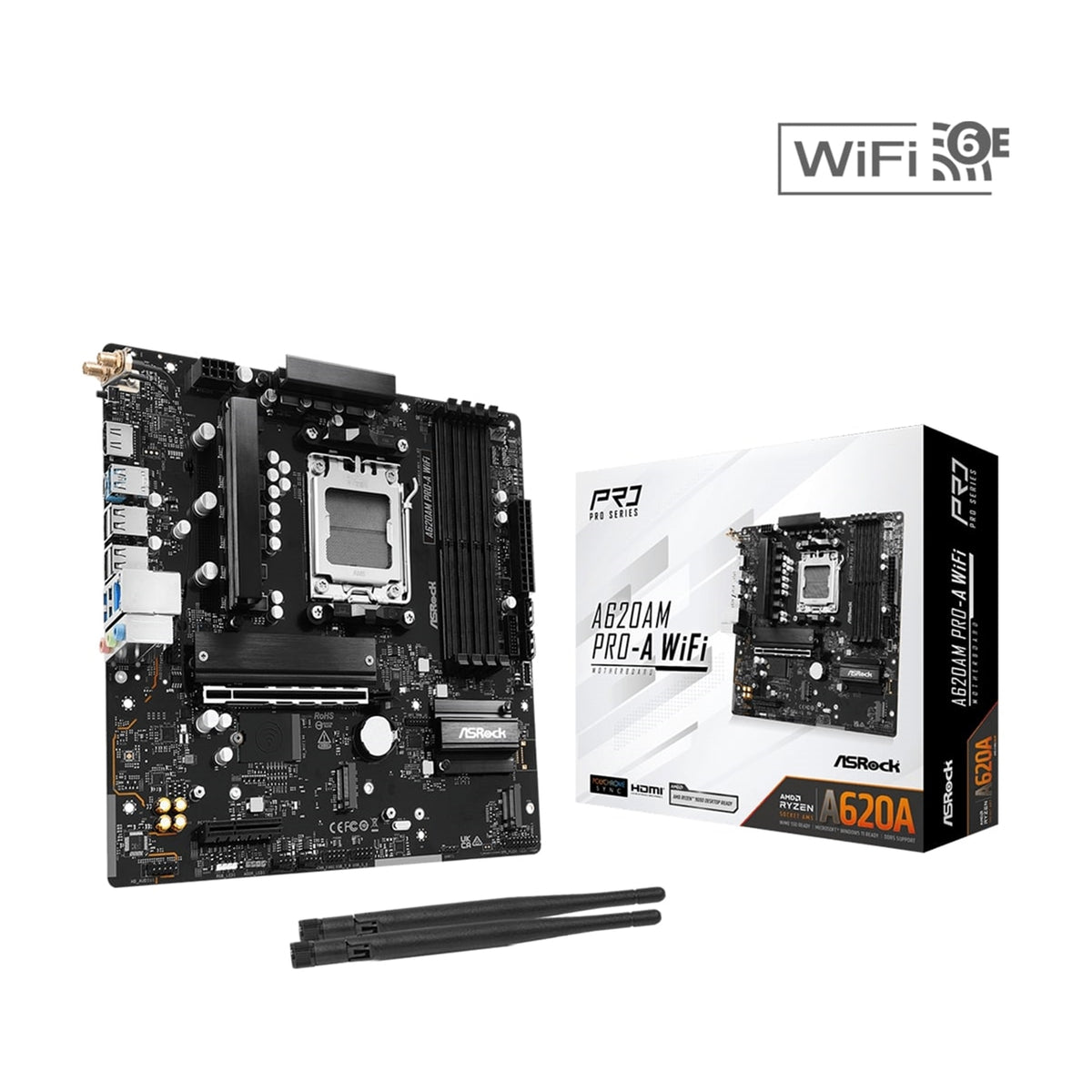

Accessories

• 1 x I/O Shield
• 2 x SATA Data Cables
• 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• 3 x Screws for M.2 Sockets
• 1 x Standoff for M.2 Socket

Form Factor

Operating System Support

• Microsoft Windows 10 64-bit
• Microsoft Windows 11 64-bit

Certifications

• FCC
• CE
• ErP/EuP ready (ErP/EuP ready power supply required)
