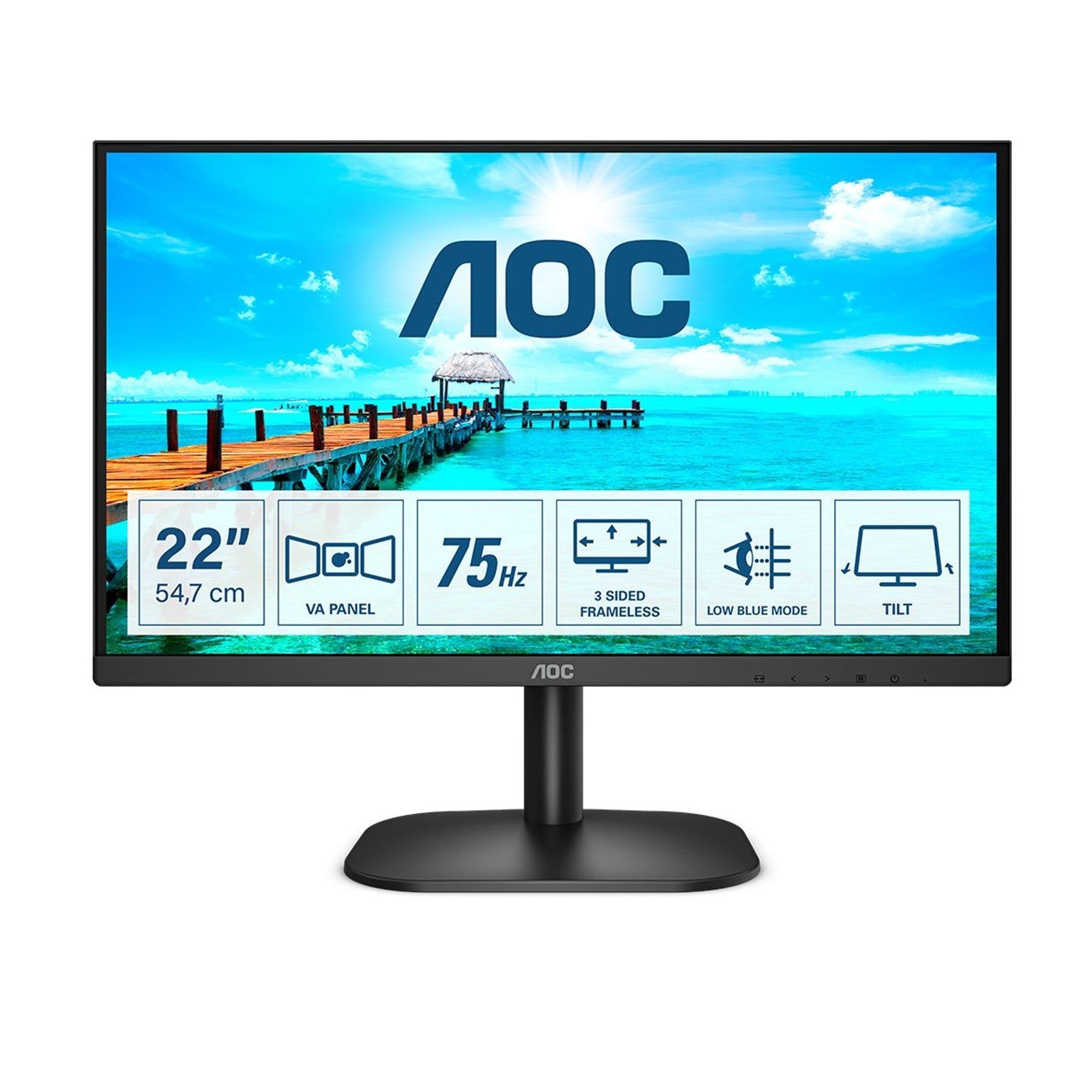

AOC 22B2H/EU 21.5" Full HD VA Monitor
Modernized design meets crisp Full HD visuals in the AOC 22B2H/EU. This 21.5" monitor combines a sleek 3-sides frameless panel with versatile VGA and HDMI connectivity, wide viewing angles, and eye-comfort technologies for work, streaming, and everyday use.
Key Features
Modern 3‑Sides Frameless Design
- 3-sides frameless panel for a clean, contemporary look
- Enables seamless multi-monitor setups
- No more losing your cursor or windows in thick bezels when using multiple displays side by side
Full HD Resolution (1920 x 1080)
- Delivers detailed, sharp images at 1920 x 1080 (FHD)
- Suitable for Blu-ray movies, high-resolution games, and crisp office text
- Offers rich detail without requiring a high-end graphics card or heavy system resources
VA Panel for Vivid Contrast
- VA (Vertical Alignment) panel
- Deeper blacks and high contrast
- Extra vivid and bright images for an immersive viewing experience
HDMI & VGA Connectivity
- HDMI (High-Definition Multimedia Interface) input
- VGA (D-Sub) input
- Compatible with current gaming consoles, GPUs, and set-top boxes that support HDCP digital content protection
(General HDMI capabilities as per versions 1.3–2.0b are outlined in the original text. Specific supported version for this model is HDMI 1.4.)
Eye-Comfort Technologies
Low Blue Light
- AOC LowBlue Light reduces harmful blue light wavelengths
- Designed to help minimize eye strain, headaches, and sleeping disorders during long sessions
- Reduces harmful emissions without sacrificing color composition
Flicker-Free Technology
- AOC Flicker-Free Technology uses a DC (Direct Current) backlight panel
- Reduces flickering light levels
- Helps minimize eye strain and fatigue, supporting longer, more comfortable viewing or gaming sessions
Display Specifications
| Feature | Specification |
|---|---|
| Screen Size (inch) | 21.5 |
| Screen Size (cm) | 54.61 |
| Flat / Curved | Flat |
| Display Viewing Area (HxW, mm) | 476.64 x 268.11 |
| Display Hardness | 3H |
| Panel Resolution | 1920 x 1080 |
| Resolution Name | FHD |
| Aspect Ratio | 16:9 |
| Panel Type | VA |
| Brightness (nits) | 250 |
| Backlight Type | WLED |
| Refresh Rate | 75 Hz |
| Response Time (GtG) | 4 ms |
| Static Contrast Ratio | 3000:1 |
| Dynamic Contrast Ratio | 20M:1 |
| Viewing Angle (CR10) | 178/178 |
| Display Colours | 16.7 Million |
Video & Eye-Care Features
| Feature | Specification |
|---|---|
| Digital Signal Frequency | VGA/HDMI 1.4: 30–83 kHz (H), 50–76 Hz (V) |
| Flicker-Free | Yes |
| Blue Light Technology | Low Blue Light |
Design & Cabinet
| Feature | Specification |
|---|---|
| Bezel Type (Front) | 3-sided frameless |
| Bezel Colour (Front) | Black |
| Bezel Finishing (Front) | Texture |
| Cabinet Colour (Backside) | Black |
| Cabinet Finishing (Backside) | Texture |
| Kensington Lock | Yes |
| VESA Wallmount | 100 x 100 |
Ergonomics
| Feature | Specification |
|---|---|
| Tilt | -5 / 21.5 |
Power
| Feature | Specification |
|---|---|
| Power Supply | External |
| Power Source | 100–240 V, 50/60 Hz |
| Power Consumption On (ENERGYSTAR test method, watts) | 18 |
| Power Consumption Standby (watts) | 0.3 |
| Power Consumption Off (watts) | 0.3 |
| Energy Class | — |
Connectivity
| Port / Output | Specification |
|---|---|
| HDMI | HDMI 1.4 x 1 |
| D-Sub (VGA) | Yes |
| Audio Output | Headphone out (3.5 mm) |
Dimensions & Weight
| Feature | Specification |
|---|---|
| Product Dimensions incl. Base (HxWxD, mm) | 388.11 (H) x 492.78 (W) x 162.94 (D) |
| Product Dimensions excl. Base (HxWxD, mm) | 292.68 (H) x 492.78 (W) x 36.2 (D) |
| Packaging Dimensions (HxWxD, mm) | 370 (H) x 550 (W) x 120 (D) |
| Gross Weight incl. Package (kg) | 3.5 |
| Net Weight excl. Package (kg) | 2.1 |
The AOC 22B2H/EU delivers a sleek frameless design, Full HD clarity, VA panel contrast, and eye-friendly technologies, combined with flexible HDMI and VGA connectivity for a versatile everyday monitor solution.
