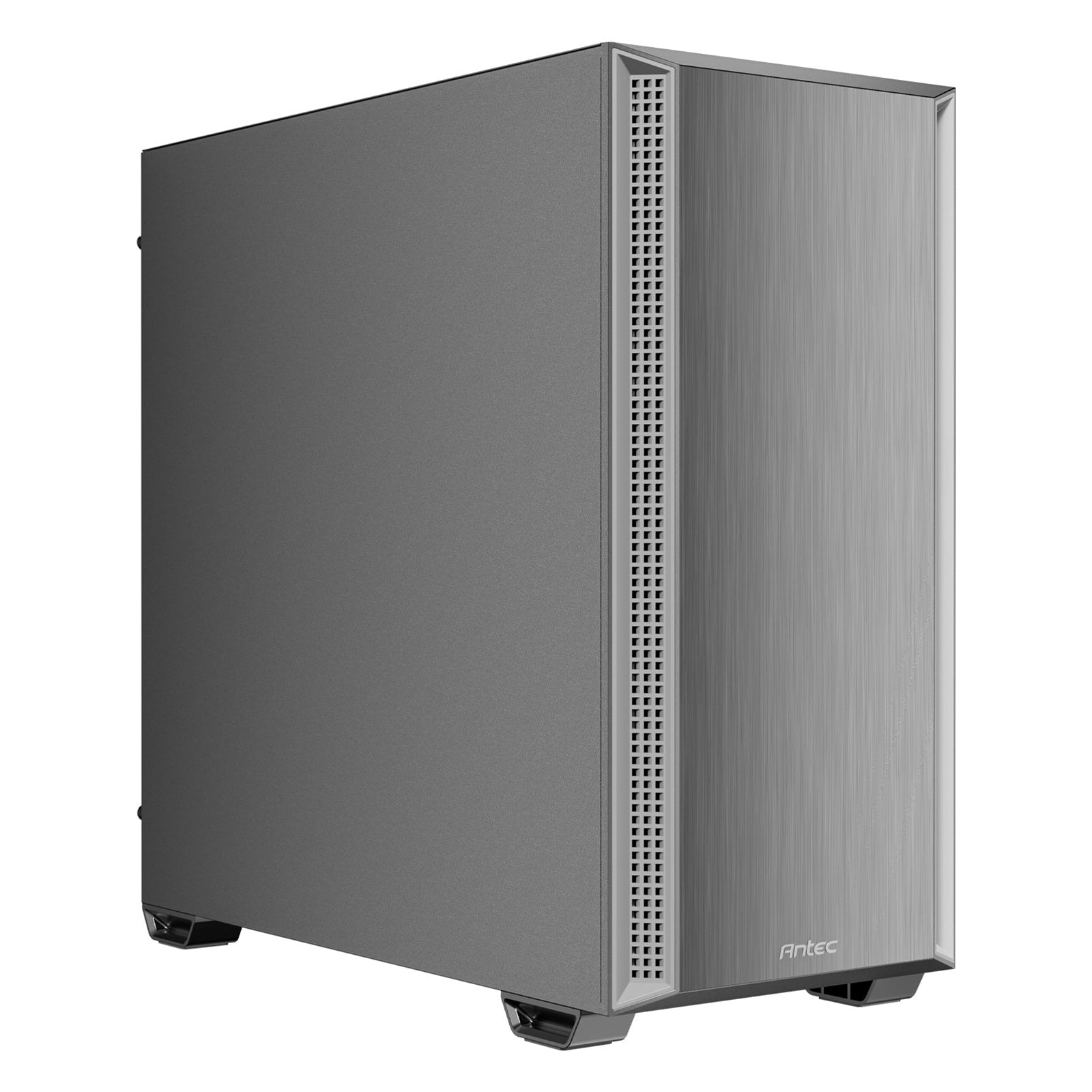

Antec P7 S ATX Mid Tower Case
The Antec P7 S ATX Mid Tower Case is engineered for powerful airflow, quiet operation, and flexible cooling options—ideal for building a clean, high-performance system.
Key Features
Optimized Airflow
- Dual side mesh design enhances intake and improves overall cooling efficiency
- Pre-installed with four PWM daisy-chain fans for optimized airflow
Quiet Performance
- Both side panels are lined with sound-dampening foam
- Effectively reduces system noise for a quieter PC build
Flexible Cooling Support
- Supports multiple fan and radiator configurations
- Supports up to a 360 mm radiator at the top for high-performance liquid cooling setups
Smart Cable Management
- Includes 4 rubber grommets for clean cable routing
- Comes with 3 Velcro straps to keep cables organized and protected
Dual-Mode Removable Top Filter
- Airflow Mode: Mesh filter for maximum cooling
- Silent Mode: Solid cover for noise reduction
- Easy to remove and clean
High-Speed Connectivity
- Includes a USB Type-C 3.2 Gen 2 (10 Gbps) port for fast data transfer
Specifications
| Category | Details |
|---|---|
| Model | P7 S 0-761345-10258-2 |
| Form Factor | Mid Tower |
| Materials | Steel, Plastic |
| Motherboard Support | ATX, Micro ATX, Mini-ITX |
Front I/O Ports
| Port Type | Quantity / Details |
|---|---|
| USB 3.0 | 2 |
| USB Type-C | 1 x USB Type-C 3.2 Gen 2 (10 Gbps) |
| Audio | Headphone / Mic combo jack |
| Buttons | Power, Reset |
Side Panel
| Panel Type | Details |
|---|---|
| Side Panels | Steel with sound-dampening foam |
Expansion & Storage
| Feature | Details |
|---|---|
| Expansion Slots | 7 (Reusable) |
| Drive Bays | 3.5" / 2.5" (Convertible): 2 / 1 |
Fan Support
| Location | Fan Support |
|---|---|
| Front | 3 x 120 mm or 2 x 140 mm |
| Top | 3 x 120 mm or 2 x 140 mm |
| PSU Shroud | 2 x 120 mm |
| Rear | 1 x 120 mm |
Included Fans
| Location | Included Fans |
|---|---|
| Front | 3 x 120 mm PWM fans |
| Rear | 1 x 120 mm PWM fan |
Radiator Support
| Location | Radiator Sizes |
|---|---|
| Front | 120 / 140 / 240 mm |
| Top | 120 / 240 / 360 mm |
| Rear | 120 mm (Length = 160 mm) |
Clearance
| Component | Maximum Length / Height |
|---|---|
| GPU | ≤ 405 mm |
| CPU Cooler | ≤ 175 mm |
| PSU (with cables) | ≤ 270 mm |
Dust Filters
| Location | Details |
|---|---|
| Top | Removable dual-mode filter |
| Bottom | Dust filter |
Dimensions & Weight
| Measurement | Details |
|---|---|
| Dimensions (D x W x H) | 478 x 222 x 465 mm |
| Net Weight | 5.75 kg |
| Gross Weight | 7.20 kg |
Warranty
| Coverage | Details |
|---|---|
| Warranty | 2 Years |
