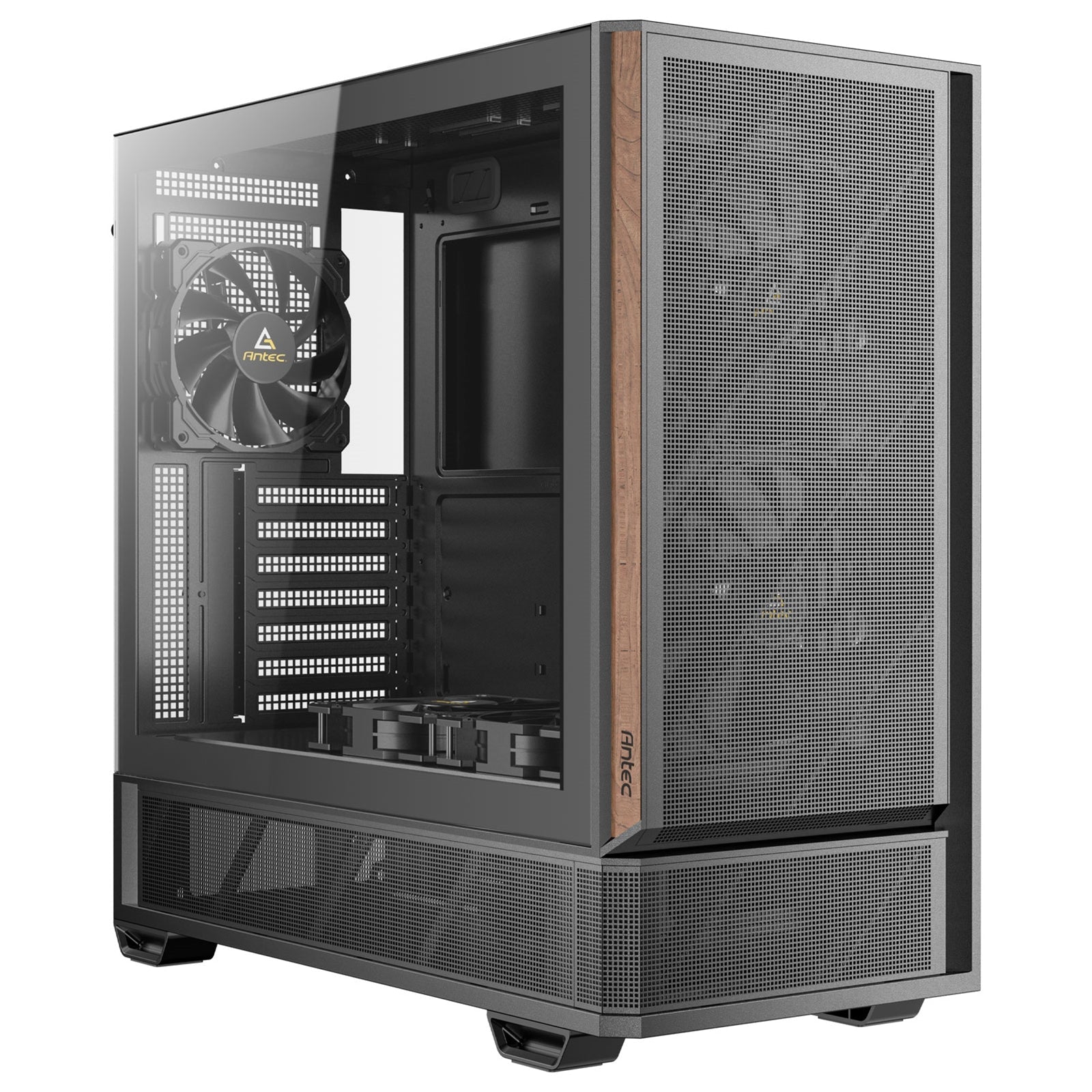

Antec P30 Air Mid-Tower ATX Gaming Case
Metal Mesh Meets Premium Wood
The Antec P30 Air combines high-performance airflow with a refined aesthetic:
- Large metal mesh front panel
- Premium wood accents
- Chamfered front design
This unique combination delivers both style and function for modern gaming setups.
Included Cooling: 5 PWM Fans
Pre-installed for powerful, out-of-the-box airflow:
- Front: 2 x 140mm PWM fans
- PSU shroud: 2 x 120mm PWM reverse fans
- Rear: 1 x 120mm PWM fan
Optimized Airflow for GPU Cooling
Designed to keep high-end graphics cards running efficiently:
- Large side intake design enhances overall airflow
- Approximately 30mm clearance between bottom fans and GPU
- Reverse fans on the PSU shroud deliver direct, efficient cooling to the graphics card
Powerful Cooling Compatibility
- Max. CPU cooler height: 175mm
- Supports RTX 50 Series graphics cards
- Accommodates GPUs up to 405mm in length
Tool-Free Tempered Glass Panel
- 4mm tempered glass side panel
- Tool-free snap-on design for easy installation and removal
Showcase your build with clean, unobstructed views.
High-Speed Front I/O with Type-C 3.2 Gen 2
Stay connected with modern, high-speed ports:
- Power button
- Reset button
- USB 3.0 x 2
- USB Type-C 3.2 Gen 2 (10Gbps) x 1
- Headphone / Mic combo jack
Effortless Cable Management
Keep your build clean and organized:
- 4 rubber grommets
- 3 Velcro straps
Specifications
Case Specifications
| Item | Details |
|---|---|
| Model | Antec P30 Air Mid-Tower ATX Gaming Case |
| Dimensions (D x W x H) | 478 x 222 x 465 mm |
| Form Factor | Mid Tower |
| Materials | Steel + Plastic + Wood |
| Mainboard Support | ATX, Micro-ATX, ITX |
| Front Access & Controls | Power, Reset, USB 3.0 x 2, Type-C 3.2 Gen 2 (10Gbps) x 1, Headphone/Mic Combo Jack |
| Side Panel | 4mm Tempered Glass |
Drive Bays & Expansion
| Item | Details |
|---|---|
| Drive Bays | 3 x 3.5" / 2.5", 2 x 2.5", 1 x 2.5" |
| Expansion Slots | 7 |
Fan Support
| Position | Supported Fans |
|---|---|
| Front | 2 x 120mm / 2 x 140mm |
| Top | 3 x 120mm / 2 x 140mm |
| Power Supply Shroud | 2 x 120mm |
| Rear | 1 x 120mm |
Included Fans
- 2 x 140mm PWM fans (front)
- 2 x 120mm PWM reverse fans (PSU shroud)
- 1 x 120mm PWM fan (rear)
Radiator Support
| Position | Supported Radiators |
|---|---|
| Front | 120 / 140 / 240mm |
| Top | 120 / 240 / 360mm |
| Rear | 120mm (Length = 160mm) |
Clearance
| Component | Maximum Length / Height |
|---|---|
| GPU Length | 405mm |
| CPU Cooler Height | 175mm |
| PSU Length (cables included) | 270mm |
Miscellaneous
| Item | Details |
|---|---|
| Dust Filters | Top / Bottom |
| Net Weight | 6.85 kg |
| Gross Weight | 8.35 kg |
| Warranty | 2 Years |
