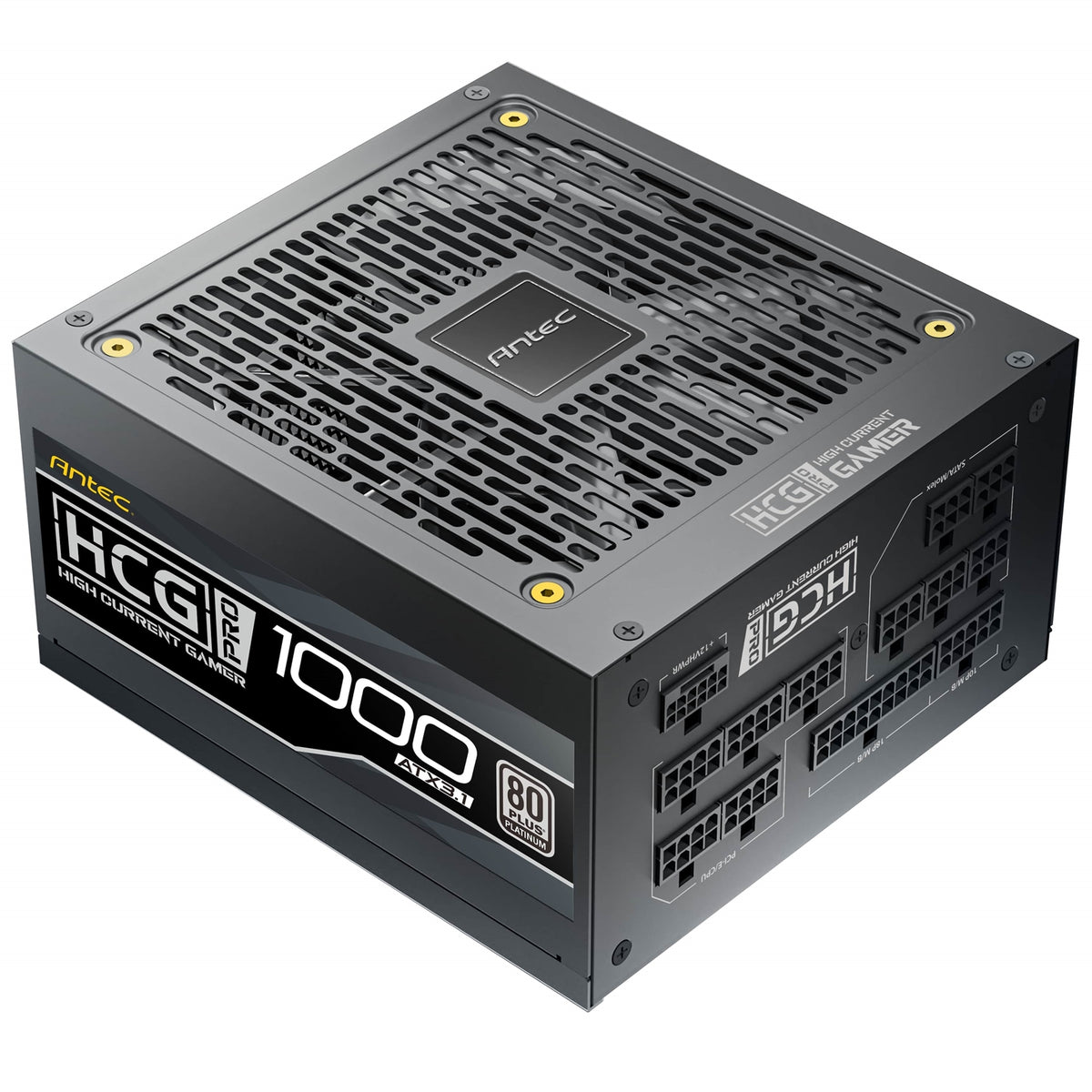

HCG1000 PRO Platinum ATX 3.1 Power Supply
For the Ultimate Gamer
The HCG1000 PRO Platinum ATX 3.1 power supply is engineered for gamers and enthusiasts who demand superior quality, stability, and efficiency. Featuring ATX 3.1 and PCIe 5.1 support, 80 PLUS Platinum certification, and 100% high-quality JP capacitors, it delivers second-to-none performance for cutting-edge PC builds.
Key Features
ATX 3.1 & PCIe 5.1 Compatible
- Formally certified for ATX 3.1 compliance for high reliability and power efficiency.
- Includes a PCIe 5.1 12VHPWR GPU cable for seamless compatibility with the latest graphics cards, such as NVIDIA GeForce RTX 40 Series.
100% High-Quality JP Capacitors
- Equipped with 100% high-quality JP capacitors.
- Achieves tight voltage regulation and minimal ripple and noise to maximize system performance.
PhaseWave Design
- Server-class full-bridge LLC design.
- Synchronous rectification based on a DC-DC topology.
- Ensures highly efficient and stable power delivery.
CircuitShield – Industrial-Grade Protection
Full suite of protections for safe and reliable operation under any circumstance:
- OCP (Over Current Protection)
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- SCP (Short Circuit Protection)
- OPP (Over Power Protection)
- OTP (Over Temperature Protection)
- SIP (Surge & Inrush Protection)
- NLO (No Load Operation)
Zero RPM Manager
- Advanced thermal control with fan-off operation at low loads.
- Thermal sensors activate the fan only when necessary to balance silent operation and efficient cooling.
- Contributes to quieter operation and extended PSU lifespan.
135mm FDB Silent Fan
- Whisper-quiet 135mm fluid-dynamic bearing (FDB) fan.
- Delivers high airflow with the durability and longevity associated with Antec quality.
Full Modular Cable Management
- 100% modular design for clean, customizable cable layouts.
- Use only the cables you need to improve airflow and maintain a tidy interior.
Compact Size
- Shorter length than typical high-end power supplies.
- Compatible with a wider range of PC cases.
10-Year Warranty
- Backed by a 10-year warranty, underscoring a strong commitment to long-term reliability.
Specifications
| Category | Details |
|---|---|
| Model | HCG1000 PRO Platinum ATX3.1 |
| Type | ATX 12V 3.1 |
| Dimension | 160(L) x 150(W) x 86(H) mm |
| Modular | Full-Modular |
| Warranty | 10 years |
| Input Voltage | 100V–240V |
| Input Current | 13A–6.5A |
| Input Frequency Range | 60Hz–50Hz |
| PFC | Active PFC |
| Power Good Signal | 100–150 ms |
| Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Output Capacity | 1000W |
| Operation Temperature | 0–40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES / CCCF |
| Fan | 135mm FDB Silent Fan |
| Certifications | 80 PLUS Platinum |
Connectors
- 1 × 24 (20+4) pin motherboard
- 1 × 16 (12+4) pin PCIe 5.1 12VHPWR
- 2 × 8 (4+4) pin CPU
- 3 × 8 (6+2) pin PCI-E
- 14 × SATA
- 3 × Molex
