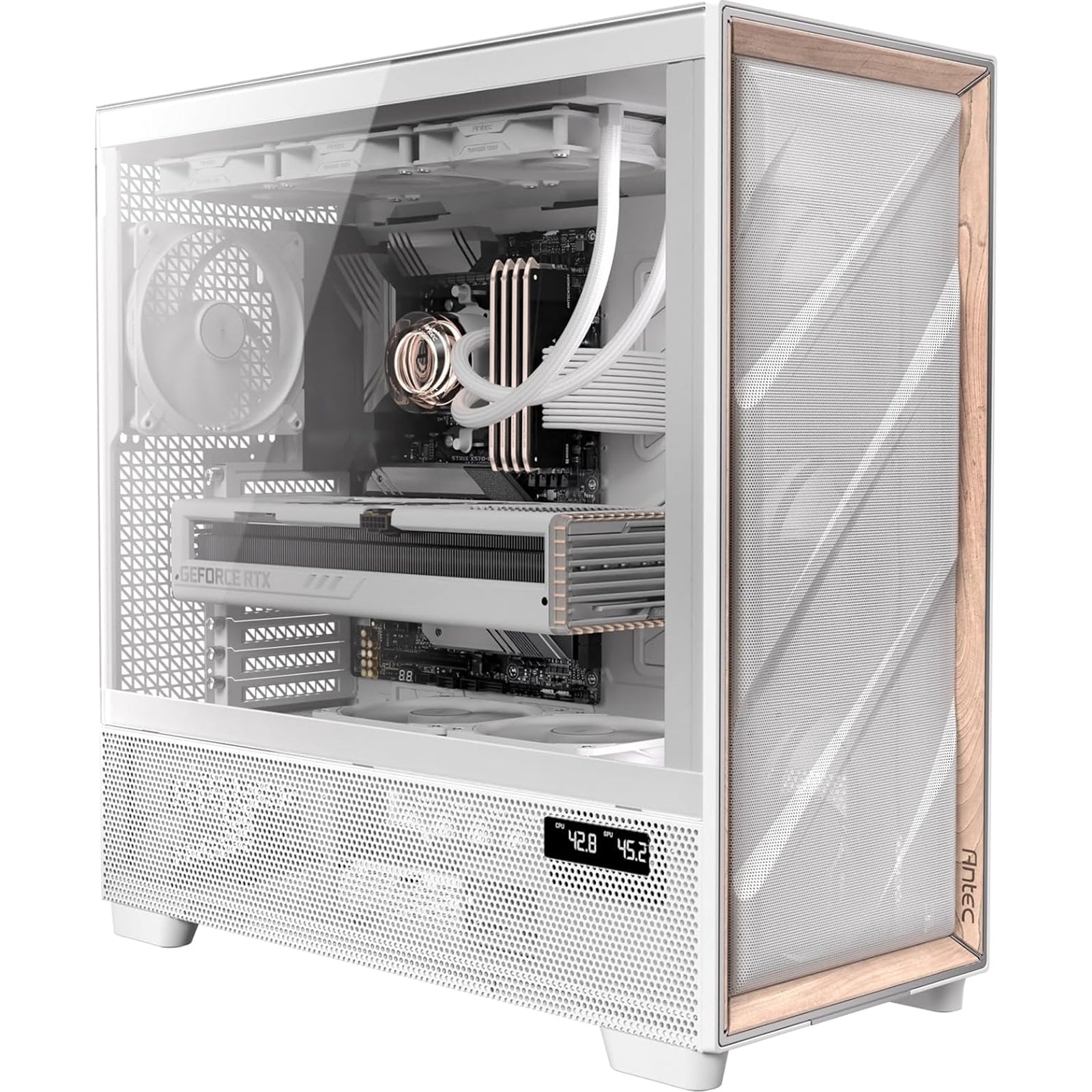

Antec FLUX PRO White Full Tower Case
The Antec FLUX PRO White full tower case delivers advanced design and performance tailored for gaming enthusiasts. Featuring Antec’s F-LUX Platform (Flow Luxury), it offers an optimized airflow design engineered to enhance GPU cooling with six high-performance pre-installed PWM fans.
Advanced F-LUX Airflow Design
The F-LUX Platform integrates a multi-directional vent layout and dedicated airflow channels to keep your components cool and stable:
- Flux Vertical Cooling: Enhances heat dissipation through the PSU chamber to boost graphics card cooling.
- Flux Horizontal Cooling: Creates a smooth front-to-back venting channel through the large-area front mesh.
Multi-Directional Ventilation
Strategically placed vents maximize intake and exhaust for efficient airflow:
- Extensive air intakes at the bottom, power supply chamber, and lower sides
- Top vents for effective heat exhaust
- Large-area mesh front panel forming a dedicated Antec Flux airflow channel
Premium Aesthetic Design
The front panel combines performance and style:
- Crafted from a blend of metal mesh and walnut wood
- Delivers a premium look that complements a wide range of home interiors
- Tempered glass side panel for a clear view of your build
CPU/GPU Dual Temperature Display
Stay informed with an intuitive hardware temperature display featuring four selectable modes:
- GPU & CPU On
- GPU & CPU Off
- Only CPU On
- Only GPU On
Antec iUnity software must be installed to enable these display modes.
Specifications
General
| Feature | Details |
|---|---|
| Product Name | Antec FLUX PRO White |
| Case Type | Full Tower |
| Form Factor | Mid Tower |
| Materials | Steel, Plastic, Walnut Wood |
| Side Panel | Tempered Glass |
| Weight (Net / Gross) | 13.60 kg / 16.65 kg |
| Dimensions (D x W x H) | 530 x 245 x 545 mm |
Motherboard Support
- E-ATX (≤ 285 mm)
- ATX
- Micro-ATX
- ITX
I/O Panel
- Power
- Reset
- 2 x USB 3.0
- 1 x USB Type-C
- Headphone/Mic combo jack
Storage & Expansion
| Feature | Details |
|---|---|
| Drive Bays | 3.5" / 2.5": 4 / 4 |
| Expansion Slots | 7 |
Cooling Support
Fan Support
- Front: 3 x 120 mm / 3 x 140 mm
- Top: 3 x 120 mm / 3 x 140 mm
- Power Supply Shroud: 2 x 120 mm / 2 x 140 mm
- Rear: 1 x 120 mm / 1 x 140 mm
Included Fans
- Front: 3 x 140 mm Tranquil PWM fans
- PSU Shroud: 2 x 120 mm P12R PWM reverse fans
- Rear: 1 x 140 mm Tranquil PWM fan
Radiator Support
- Front: 120 / 140 / 240 / 280 / 360 / 420 mm
- Top: 120 / 140 / 240 / 280 / 360 / 420 mm
- Power Supply Shroud: 120 / 240 / 360 mm
- Bottom: 120 / 240 mm
- Rear: 120 / 140 mm
Clearance
| Component | Maximum Length / Height |
|---|---|
| GPU Length | ≤ 455 mm |
| CPU Cooler Height | ≤ 190 mm |
| PSU Length | ≤ 180 / 300 mm (with HDD) |
| ≤ 470 mm (without HDD) | |
| ≤ 180 mm (side mount) |
Additional Features
- Dust Filter: Bottom-mounted dust filter for easier maintenance.
