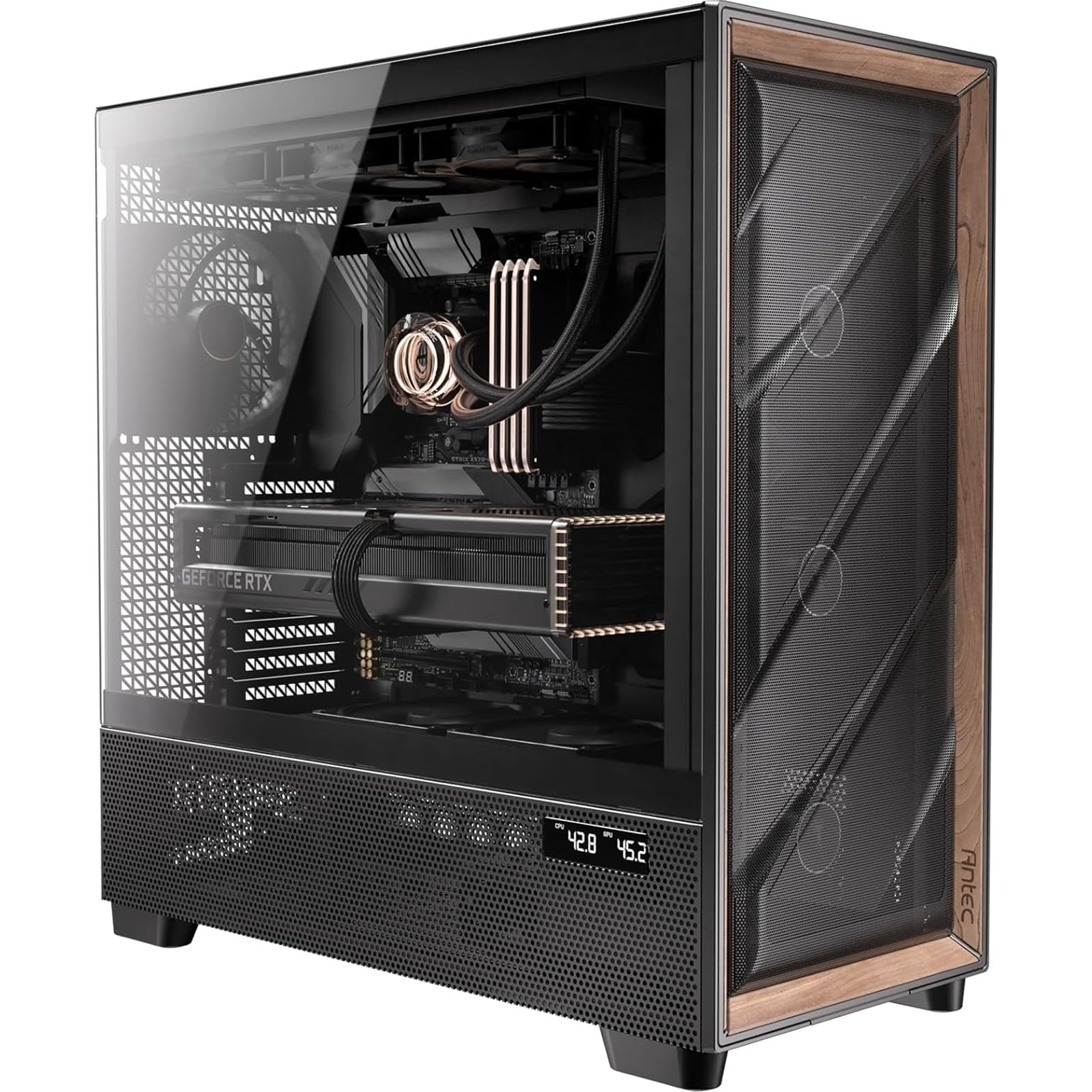

Antec FLUX PRO Full Tower Case
The Antec FLUX PRO full tower case embodies the pinnacle of design and performance for gaming enthusiasts. It integrates Antec's cutting-edge F-LUX Platform (Flow Luxury), featuring an advanced airflow design optimized for GPU cooling with six high-performance pre-installed PWM fans.
Advanced F-LUX Airflow Platform
The F-LUX Platform delivers a dedicated Antec FLUX airflow channel for superior cooling:
- Six pre-installed PWM fans for powerful, responsive airflow control
- Multi-directional vent design with extensive air intakes at:
- Bottom
- Power supply chamber
- Lower sides
- Additional airflow optimization through:
- Top vents
- Large-area mesh front panel
Flux Vertical & Horizontal Cooling
-
Flux Vertical Cooling
Enhances heat dissipation through the PSU chamber, boosting the cooling effect for the graphics card. -
Flux Horizontal Cooling
Provides a smooth venting channel throughout the case via the front mesh for balanced airflow.
Premium Design
The front panel combines a metal mesh with walnut wood, delivering a premium aesthetic that blends seamlessly into any home design. A tempered glass side panel showcases internal components.
CPU/GPU Dual Temperature Display
Stay informed with an intuitive hardware temperature display featuring four selectable modes:
- GPU & CPU On
- GPU & CPU Off
- Only CPU On
- Only GPU On
Antec iUnity software must be installed for this functionality.
Specifications
General
| Feature | Details |
|---|---|
| Product Name | Antec FLUX PRO Full Tower Case |
| Form Factor | Mid Tower |
| Materials | Steel, Plastic, Walnut Wood |
| Side Panel | Tempered Glass |
| Mainboard Support | E-ATX (=285mm), ATX, Micro-ATX, ITX |
| Dust Filter | Bottom |
| Net Weight | 13.60 kg |
| Gross Weight | 16.65 kg |
| Dimensions (D x W x H) | 530 x 245 x 545 mm |
I/O Panel
| Port / Button | Details |
|---|---|
| Power | Yes |
| Reset | Yes |
| USB 3.0 | 2 x USB 3.0 |
| USB Type-C | 1 x USB Type-C |
| Audio | Headphone/Mic combo jack |
Storage & Expansion
| Category | Details |
|---|---|
| Drive Bays | 4 x 3.5" / 4 x 2.5" |
| Expansion Slots | 7 |
Fan Support
| Location | Supported Fans |
|---|---|
| Front | 3 x 120mm / 3 x 140mm |
| Top | 3 x 120mm / 3 x 140mm |
| Power Supply Shroud | 2 x 120mm / 2 x 140mm |
| Rear | 1 x 120mm / 1 x 140mm |
Included Fans
| Location | Included Fans |
|---|---|
| Front | 3 x 140mm Tranquil PWM fans |
| PSU Shroud | 2 x 120mm P12R PWM reverse fans |
| Rear | 1 x 140mm Tranquil PWM fan |
Radiator Support
| Location | Supported Radiator Sizes |
|---|---|
| Front | 120 / 140 / 240 / 280 / 360 / 420mm |
| Top | 120 / 140 / 240 / 280 / 360 / 420mm |
| Power Supply Shroud | 120 / 240 / 360mm |
| Bottom | 120 / 240mm |
| Rear | 120 / 140mm |
Clearance
| Component | Maximum Clearance |
|---|---|
| GPU Length | = 455mm |
| CPU Cooler Height | = 190mm |
| PSU Length (incl. cables) | = 180 / 300mm (with HDD), = 470mm (without HDD), = 180mm (side mount) |
