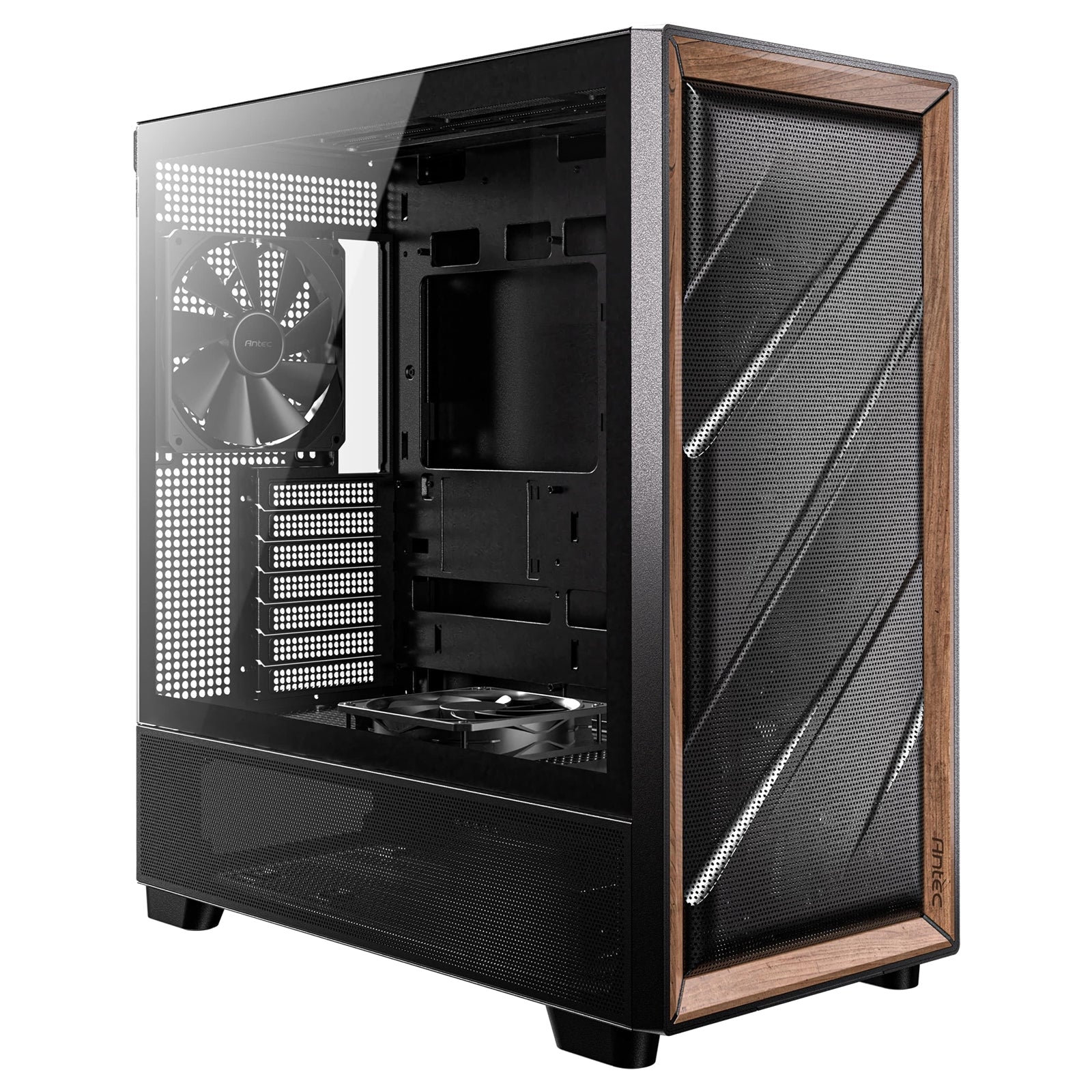

Antec FLUX Mid-Tower PC Gaming Case – Black/Wood
Innovative Design & Superior Airflow
The Antec FLUX mid-tower PC gaming case is engineered with a cutting-edge airflow system to optimize cooling performance. A large-area mesh front panel and multi-directional vents work together to maximize heat dissipation, keeping your components running efficiently.
Showcase your build through the tempered glass side panel while maintaining superior cooling with support for up to 9 fans and extensive water-cooling configurations.
Advanced Airflow System
- Multi-directional vent design
- Dedicated air intake from:
- Bottom
- PSU chamber
- Sides
This advanced airflow layout helps maintain stable temperatures, even during intense gaming sessions.
Premium Build & Aesthetic
Crafted with a blend of steel, plastic, and walnut wood, the FLUX case combines durability with a distinctive, stylish appearance that enhances both look and function.
Specifications
General
| Feature |
Details |
| Form Factor |
Mid Tower |
| Materials |
Steel, Plastic, Walnut Wood |
| Side Panel |
Tempered Glass |
| Dust Filter |
Bottom |
| Net Weight |
9.27 kg |
| Gross Weight |
10.64 kg |
| Dimensions (D x W x H) |
484 x 239 x 502 mm |
Motherboard Support
| Supported Mainboards |
| E-ATX (≤ 330 mm), ATX, Micro-ATX, ITX |
I/O Panel
- Power
- Reset
- 2 x USB 3.0
- 1 x USB Type-C
- Headphone/Mic combo jack
Storage
| Drive Bays |
Quantity |
| 3.5" / 2.5" |
2 / 2 |
| 2.5" |
1 |
Expansion
Cooling Support
Fan Support
| Position |
Supported Fans |
| Front |
3 x 120 mm / 3 x 140 mm |
| Top |
3 x 120 mm / 2 x 140 mm |
| Power Supply Shroud |
2 x 120 mm / 2 x 140 mm |
| Rear |
1 x 120 mm / 1 x 140 mm |
Included Fans
| Location |
Included Fans |
| Front |
3 x 120 mm PWM fans |
| PSU Shroud |
1 x 120 mm PWM reverse fan |
| Rear |
1 x 140 mm PWM fan |
Radiator Support
| Position |
Supported Radiator Sizes |
| Front |
120 / 140 / 240 / 280 / 360 / 420 mm |
| Top |
120 / 140 / 240 / 280 / 360 mm |
| Rear |
120 / 140 mm |
Hardware Clearance
| Component |
Maximum Size |
| GPU Length |
≤ 408 mm |
| CPU Cooler Height |
≤ 180 mm |
| PSU Length (including cables) |
≤ 235 mm (with HDD installed) |
The Antec FLUX mid-tower case in black/wood delivers a refined balance of style, airflow, and hardware compatibility for your next gaming PC build.
