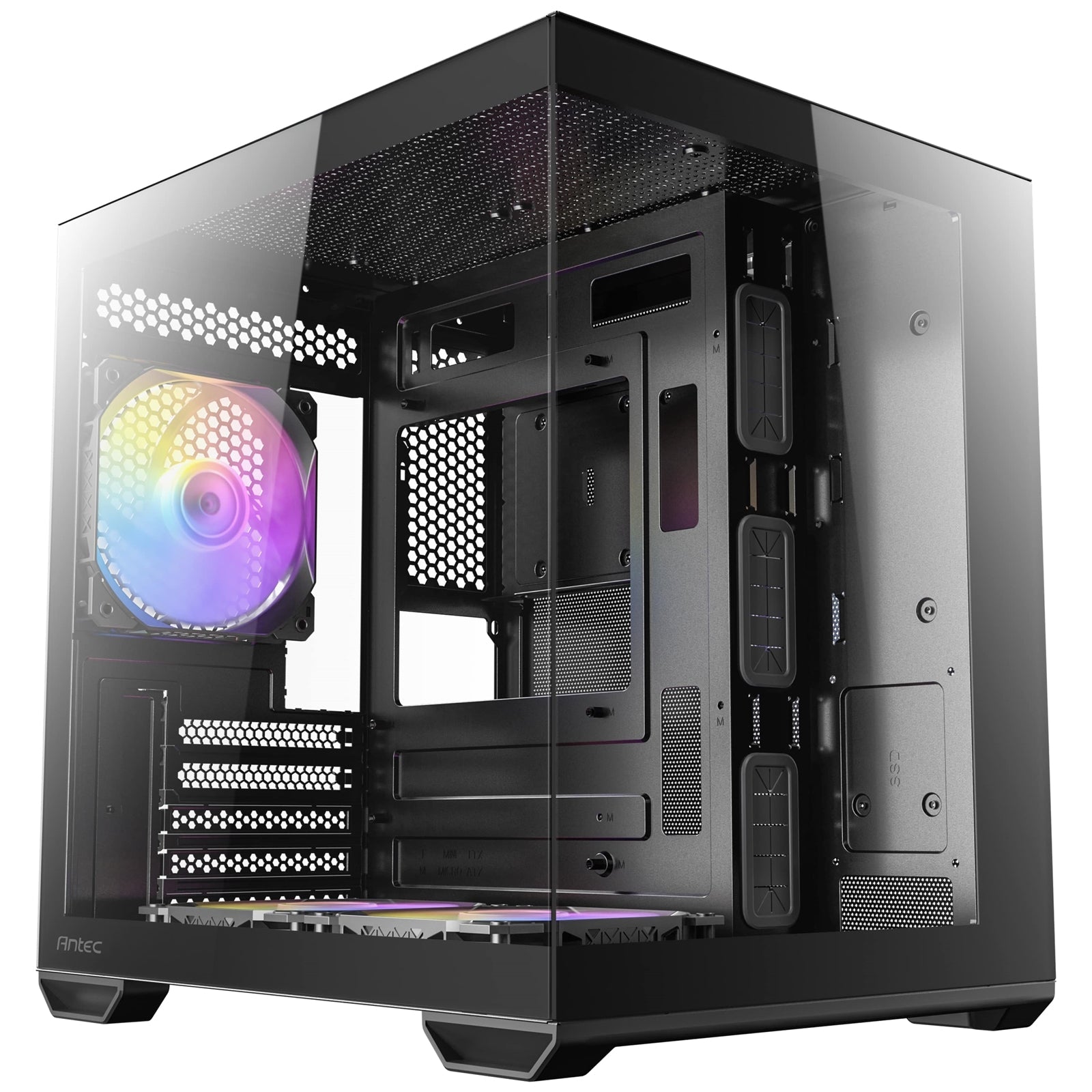

Antec CX60M ARGB Mini-Tower PC Case
The Antec CX60M ARGB is a compact mini-tower PC case engineered for Micro-ATX and ITX motherboards. With its sleek design, tempered glass panels, and pre-installed ARGB fans, it offers a modern platform to showcase your build while supporting versatile cooling configurations.
Panoramic Tempered Glass Design
- 270-degree panoramic view with tempered glass front and side panels
- Clear, unobstructed display of internal components
- Stylish, modern aesthetic ideal for ARGB lighting effects
Dual-Chamber Layout & Cable Management
- Dual-chamber design separates the power supply and drives from main hardware
- Promotes efficient airflow and improved cooling
- Enhanced cable management with:
- 45 mm cable space on the left side
- 95 mm cable space on the right side
Optimized Cooling & Radiator Support
The CX60M ARGB supports multiple cooling configurations for both air and liquid setups:
Fan Support
- Top: 2 x 120 mm fans
- Bottom: 2 x 120 mm fans
- Rear: 1 x 120 mm fan
Radiator Support
- Top: Up to 240 mm radiator
- Rear: 120 mm radiator
Pre-Installed Fans
- 2 x 120 mm ARGB PWM reverse fans (bottom)
- 1 x 120 mm ARGB PWM fan (rear)
Front I/O & ARGB Control
Convenient, modern connectivity at your fingertips:
- 2 x USB 3.0
- 1 x Type-C 3.2 Gen 2 (10 Gbps)
- 1 x Headphone/Mic combo jack
- Power button
- LED control button
Storage & Expansion
- Expansion slots: 5
- Drive bays:
- 1 x 3.5"
- 3 x 2.5"
Component Clearance
- Maximum GPU length: 325 mm
- Maximum CPU cooler height: 165 mm
- Maximum PSU length (including cables): 240 mm
Dust Protection
- Dust filters on top and bottom to help keep the interior clean
Specifications
| Category | Details |
|---|---|
| Form Factor | Mini Tower |
| Dimensions (D x W x H) | 346 x 275 x 354 mm |
| Materials | Steel, Tempered Glass |
| Motherboard Support | Micro-ATX, ITX |
| Expansion Slots | 5 |
| Drive Bays | 1 x 3.5", 3 x 2.5" |
| Maximum GPU Length | 325 mm |
| Maximum CPU Cooler Height | 165 mm |
| Maximum PSU Length | 240 mm (including cables) |
| Cable Management Space | 45 mm (left), 95 mm (right) |
| Dust Filters | Top and Bottom |
| Net Weight | 4.45 kg |
| Gross Weight | 5.69 kg |
| Warranty | 1 Year |
| Top Fan Support | 2 x 120 mm |
| Bottom Fan Support | 2 x 120 mm |
| Rear Fan Support | 1 x 120 mm |
| Top Radiator Support | Up to 240 mm |
| Rear Radiator Support | 120 mm |
| Pre-Installed Fans | 2 x 120 mm ARGB PWM (bottom, reverse) |
| 1 x 120 mm ARGB PWM (rear) | |
| Front I/O Ports | 2 x USB 3.0 |
| 1 x Type-C 3.2 Gen 2 (10 Gbps) | |
| 1 x Headphone/Mic Combo Jack | |
| Controls | Power Button, LED Control Button |
