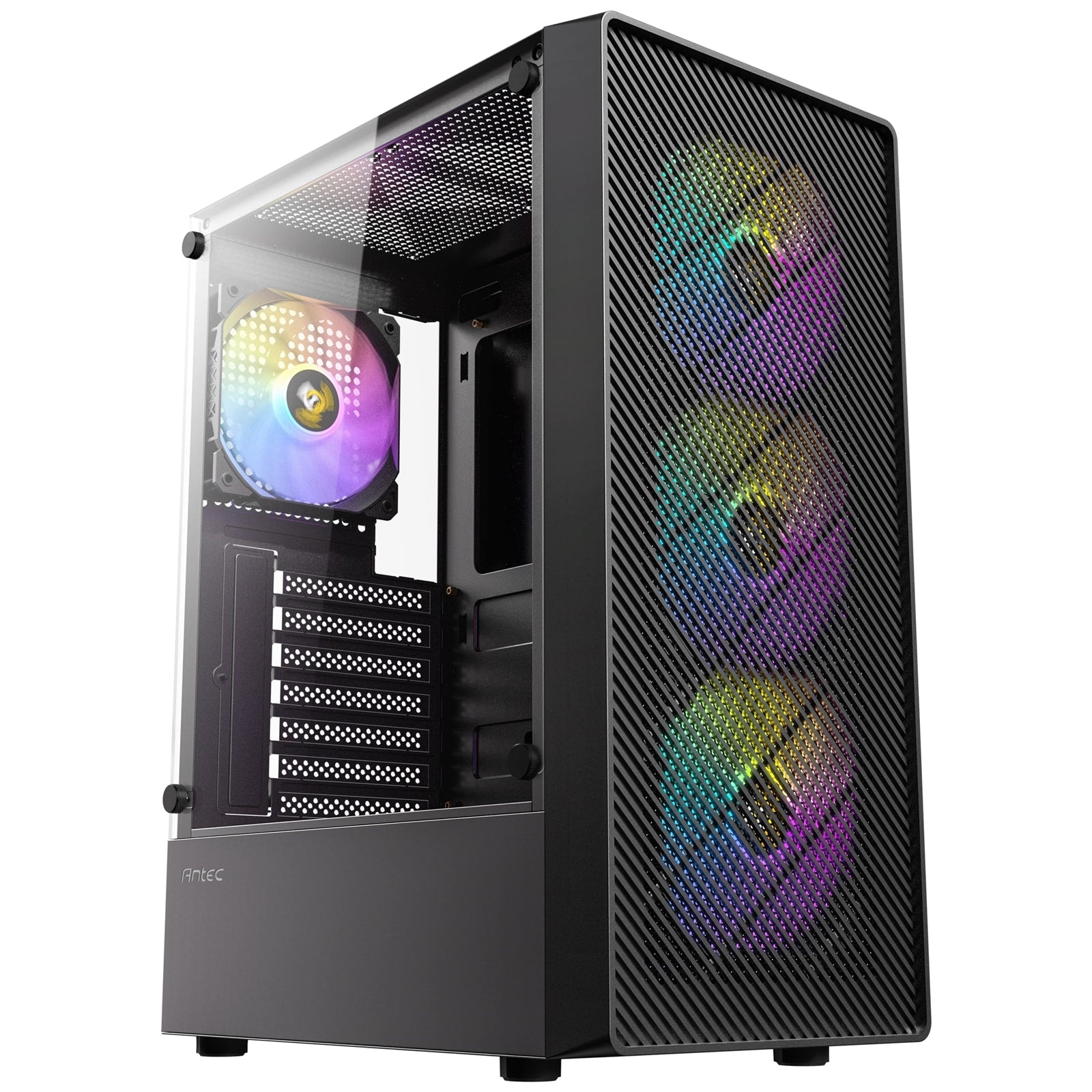

AX26 RGB Elite Mid-Tower Gaming Case
The AX26 RGB Elite Mid-Tower Gaming Case combines a unique design with powerful heat dissipation, delivering efficient airflow and a stylish showcase for your gaming build. Featuring a grille-style front panel and a half-view tempered glass side panel, this case is designed to highlight your components while maintaining stable system performance.
Key Features
Unique Grille-Style Front Panel
- High-airflow, grille-style front panel
- Maximizes intake airflow for efficient cooling
- Delivers a modern, stylish aesthetic
High-Airflow Design
- Optimized ventilation with massive air intake at the front, top, and bottom
- Helps maintain stable system performance during intense usage
Tempered Glass Side Panel
- Half-view tempered glass side panel
- Provides a sleek and stylish view of your internal components
RGB Cooling Included
- Includes 3 x 120mm fixed RGB fans at the front
- Includes 1 x 120mm fixed RGB fan at the rear
Powerful Cooling Compatibility
- Max. CPU cooler height: 155 mm
- Supports most high-end air coolers
- Flexible fan and radiator support for enhanced cooling setups
Convenient I/O Panel
- Power button
- LED On/Off button
- 2 x USB 2.0
- 1 x USB 3.0
- MIC / HD-AUDIO
Specifications
Main Specifications
| Category | Details |
|---|---|
| Product Name | AX26 RGB Elite Mid-Tower Gaming Case |
| Dimensions (D x W x H) | 345 x 207 x 451 mm |
| Form Factor | Mid Tower |
| Materials | Steel + Plastic |
| Mainboard Support | ATX, Micro-ATX, ITX |
| Side Panel | Tempered glass |
| Warranty | 1 Year |
Front Access & Controls
| Item | Details |
|---|---|
| Controls & Ports | Power, LED On/Off Button, 2 x USB 2.0, 1 x USB 3.0, MIC/HD-AUDIO |
Drive Bays & Expansion
| Category | Details |
|---|---|
| Expansion Slots | 7 |
| 3.5" / 2.5" Bays | 2 / 1 |
| 2.5" Bays | 2 |
| Motherboard Width Note | The motherboard width must be less than 185 mm |
Fan Support
| Position | Supported Fans |
|---|---|
| Front | 3 x 120mm / 2 x 140mm |
| Top | 2 x 120mm |
| Power Supply | 2 x 120mm |
| Rear | 1 x 120mm |
Included Fans
| Position | Included Fans |
|---|---|
| Front | 3 x 120mm fixed RGB fans |
| Rear | 1 x 120mm fixed RGB fan |
Radiator Support
| Position | Supported Radiators |
|---|---|
| Front | 120 / 140 / 240 / 280 mm |
Clearance
| Component | Maximum Length / Height |
|---|---|
| GPU Length | 295 mm (when the fan is installed at the front) |
| 270 mm (when the fan is installed at the rear) | |
| CPU Cooler Height | 155 mm |
| PSU Length (incl. cable) with HDD | 170 mm |
| PSU Length (incl. cable) without HDD | 295 mm |
Miscellaneous
| Category | Details |
|---|---|
| Dust Filter | Front (Non-removable) / Bottom |
| Net Weight | 3.96 kg |
| Gross Weight | 4.85 kg |
