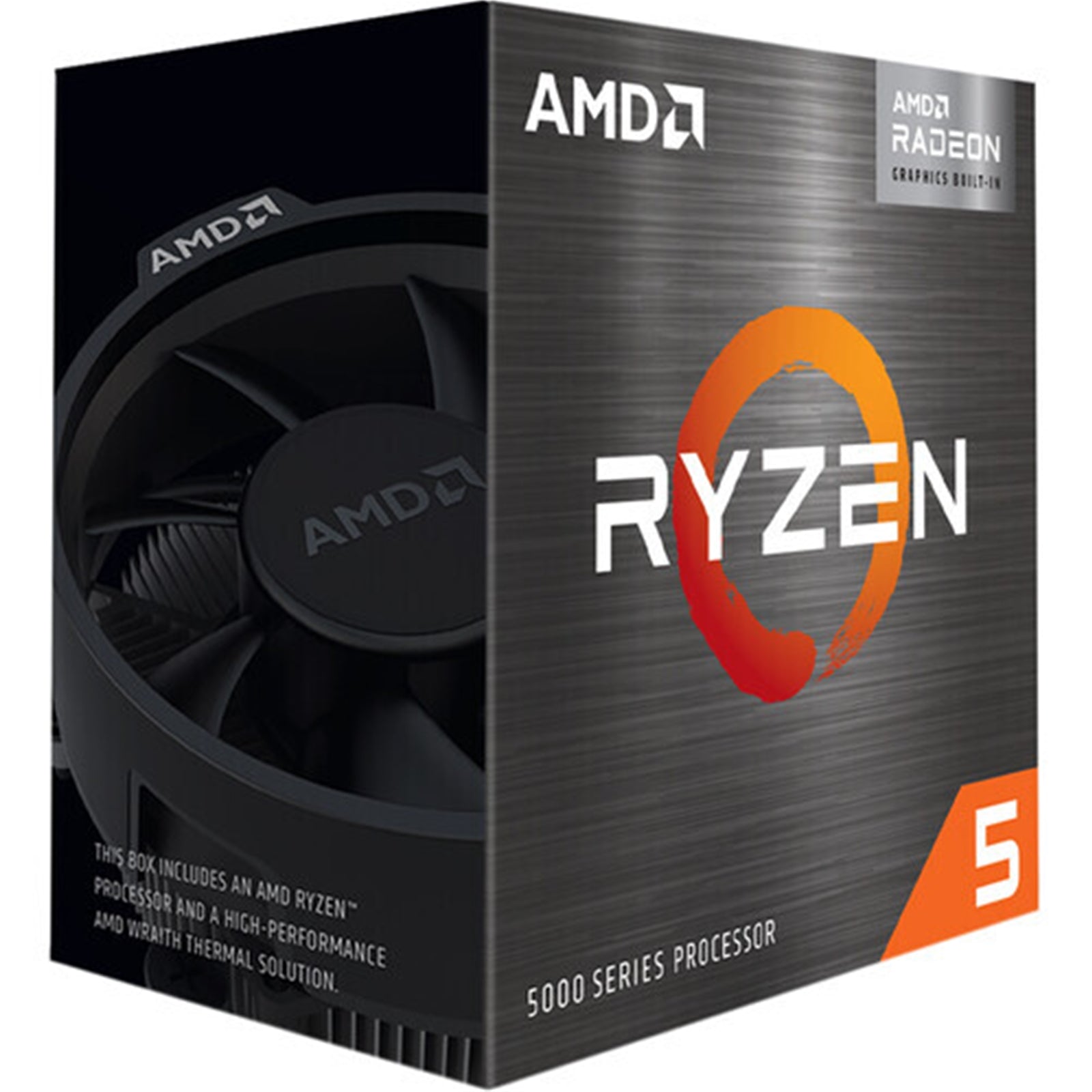

AMD Ryzen 5 5600GT 3.6GHz 6-Core AM4 Processor with Radeon Graphics
Unleash superior performance with the AMD Ryzen 5 5600GT processor. Designed for mainstream desktop platforms, this 6-core, 12-thread AM4 CPU delivers a fast 3.6GHz base clock and up to 4.6GHz max boost clock for a responsive and powerful computing experience.
With integrated Radeon Graphics, advanced "Zen 3" architecture, and support for DDR4 memory, the Ryzen 5 5600GT is built to elevate productivity, entertainment, and everyday multitasking.
Key Features
- 6 CPU cores / 12 threads with SMT for efficient multitasking
- Base clock 3.6GHz, max boost up to 4.6GHz
- "Zen 3" architecture with "Cezanne" codename
- Integrated Radeon Graphics with 7 graphics cores at 1900 MHz
- AM4 socket compatibility
- Unlocked for overclocking
- 65W default TDP, configurable 45–65W
- Includes AMD Wraith Stealth thermal solution (PIB and MPK)
- DDR4 memory support up to 3200 MT/s
- PCIe 3.0 and NVMe boot/RAID support
Immersive Visuals with Radeon Graphics
Experience captivating visuals without the need for a separate graphics card. The integrated Radeon Graphics deliver exceptional graphics performance, enabling high-quality visuals for gaming, streaming, and creative projects.
Efficient Multitasking and Performance
With 12 threads and a 4.6GHz boost clock, the AMD Ryzen 5 5600GT is built for responsive multitasking and smooth performance. Easily handle diverse and demanding workloads for an exceptional computing experience.
Specifications
General
| Specification | Details |
|---|---|
| Platform | Boxed Processor |
| Market Segment | Mainstream Desktop |
| Product Family | AMD Ryzen Processors |
| Product Line | AMD Ryzen 5 5000 G-Series Desktop Processors with Radeon Graphics |
| Consumer Use | Yes |
| Commercial Use | No |
| Regional Availability | Global, China, NA, EMEA, APJ, LATAM |
| Former Codename | "Cezanne" |
| Architecture | "Zen 3" |
CPU
| Specification | Details |
|---|---|
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 4.6GHz |
| Base Clock | 3.6GHz |
| L1 Cache | 384KB |
| L2 Cache | 3MB |
| L3 Cache | 16MB |
| Default TDP | 65W |
| AMD Configurable TDP (cTDP) | 45–65W |
| Processor Tech (CPU Cores) | TSMC 7nm FinFET |
| CPU Compute Die Size (CCD) | 180mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM4 |
| Max Operating Temp (Tjmax) | 95°C |
| Launch Date | 1/8/2024* |
*Launch date as provided.
Thermal Solution
| Specification | Details |
|---|---|
| Thermal Solution (PIB) | AMD Wraith Stealth |
| Thermal Solution (MPK) | AMD Wraith Stealth |
Operating System Support*
| Supported OS |
|---|
| Windows 11 - 64-Bit Edition |
| Windows 10 - 64-Bit Edition |
| RHEL x86 64-Bit |
| Ubuntu x86 64-Bit |
*Operating system support will vary by manufacturer.
Connectivity & Memory
| Specification | Details |
|---|---|
| PCI Express Version | PCIe 3.0 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| Max. Memory | 128GB |
| System Memory Subtype | UDIMM |
| System Memory Spec | Up to 3200 MT/s |
Max Memory Speed:
- 2x1R DDR4-3200
- 2x2R DDR4-3200
- 4x1R DDR4-2933
- 4x2R DDR4-2667
Integrated Graphics
| Specification | Details |
|---|---|
| Integrated Graphics | Yes |
| Graphics Model | Radeon Graphics |
| Graphics Core Count | 7 |
| Graphics Frequency | 1900 MHz |
