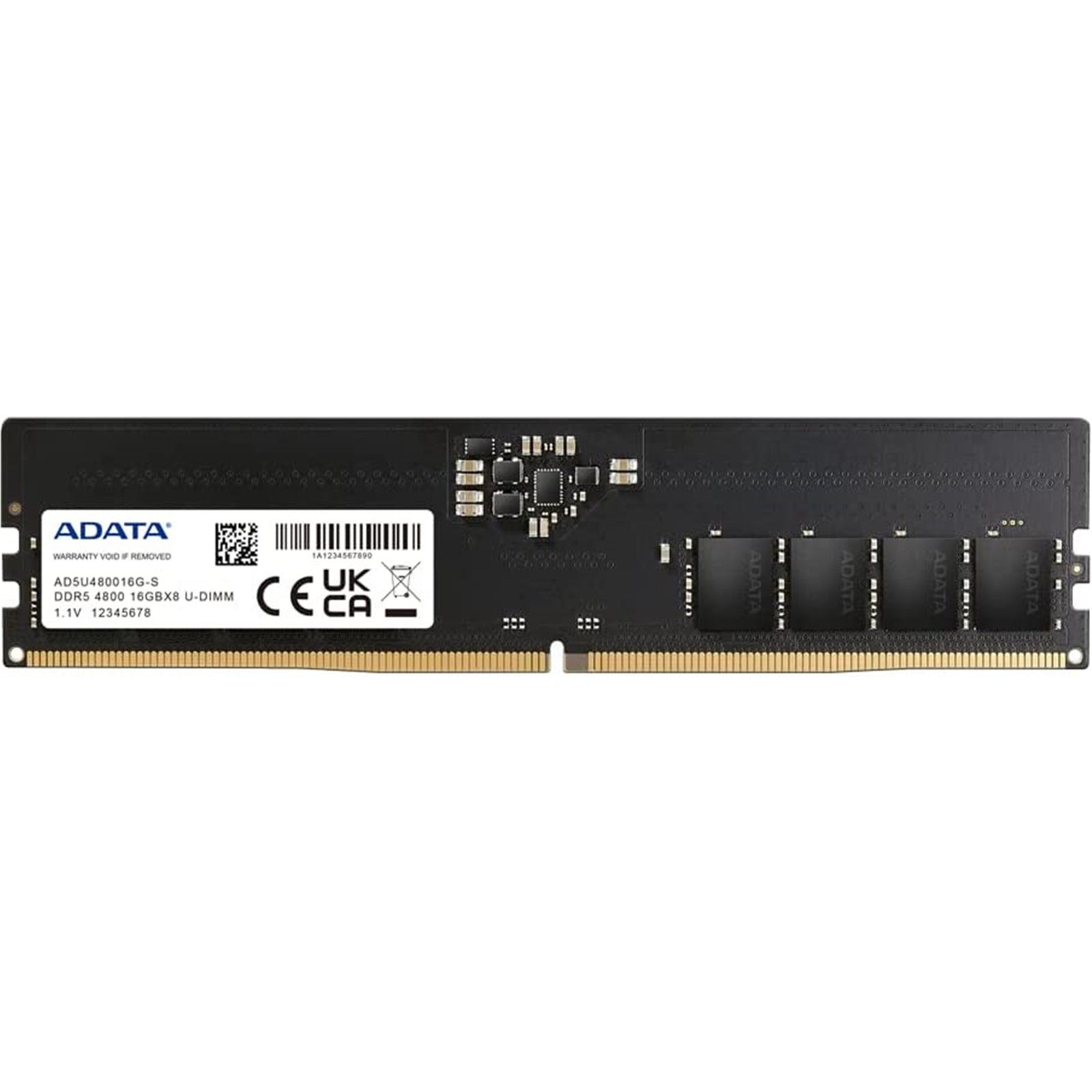

ADATA Premier DDR5-4800 16GB U-DIMM Desktop Memory
Upgrade your system with next-generation ADATA Premier DDR5-4800 memory and experience higher speeds, improved efficiency, and enhanced stability over DDR4.
Key Features
Higher Frequencies & Bandwidth
- Delivers blazing speeds of up to 4800 MT/s
- A major leap from the maximum frequency of DDR4-3200 MT/s
- Provides 38.4 GB/s bandwidth, which is 50% higher than DDR4-3200
- Maximum frequency is increased 1.63 times compared to DDR4
More Energy-Efficient
- Operates at just 1.1V
- Up to 8% more power-efficient than DDR4
- Built-in Power Management IC (PMIC) enhances power supply stability
Capacity-Doubled Architecture
- Architecture supports more memory bank groups and banks
- Allows more bank groups to be packed into the same area
- Doubles capacity potential compared to DDR4, enabling higher-density modules
Improved Stability with ECC
- Built-in error correcting code (ECC) corrects errors automatically in real time
- Reduces the burden on CPU calculations
- Increases stability and reliability for enterprise-class computers
DDR5 vs DDR4: Quick Tips
Appearance
- Same dimensions and 288-pin count as DDR4 U-DIMM modules
- Fool-proof notch is in a different position than DDR4
- I/O resistors are integrated with CMD/ADD resistors
- Overall, DDR5 modules have a cleaner appearance
- A PMIC is visible in the center of DDR5 modules
Chip Architecture
- 2x capacity vs DDR4 by packing more banks and bank groups
- Burst Length and Prefetch are doubled, increasing:
- The number of data writes
- The amount of data taken upfront
- Built-in ECC technology helps ensure data integrity
Performance
- Significantly higher bandwidth and frequency than DDR4
- ADATA DDR5 modules reach up to 4800 MT/s
- 38.4 GB/s bandwidth offers a substantial performance uplift over DDR4-3200
Specifications
| Specification | Detail |
|---|---|
| Series | ADATA Premier |
| DDR Type | DDR5 |
| Module Size | 1 x 16GB |
| Speed | 4800 MHz |
| Compliance | PC5-38400 |
| Pins | 288-pin |
| CAS Latency | CL40 |
| Data Integrity Check | ECC |
| Voltage | 1.1V |
| Heatsink | No |
| LED Lighting | - |
| Package Type | Retail |
| Package Weight | 0.0280 kg |
| Warranty | Lifetime |
Step into the DDR5 era with ADATA Premier DDR5-4800 U-DIMM and unlock faster, more efficient, and more reliable desktop performance.
