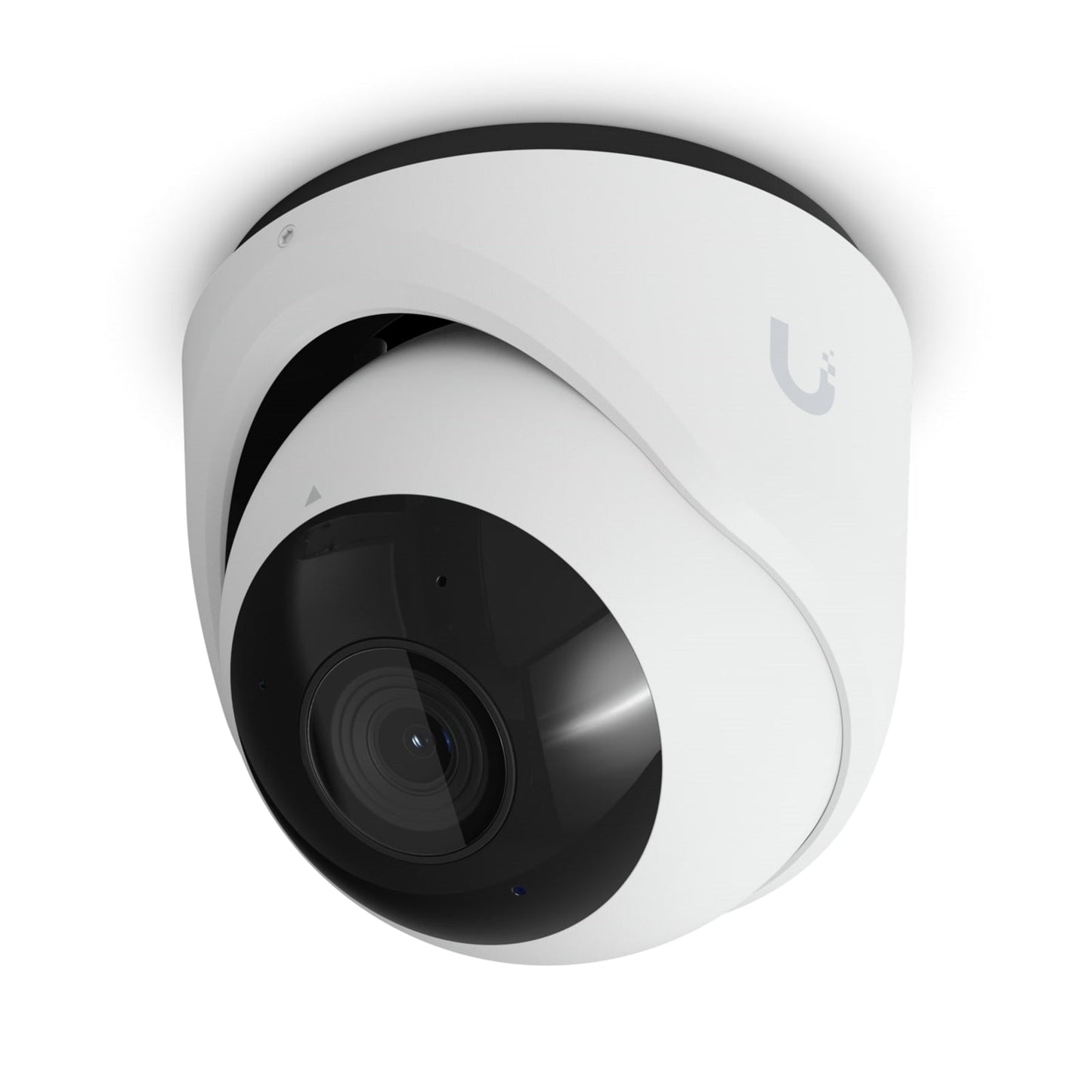

All-Weather 4K PoE AI Camera
All-weather, tamper-resistant 4K PoE camera with a 1/1.8" 8MP image sensor, Multi-TOPs AI engine, and 3-axis manual adjustment for flexible installation.
Key Features
- 4K resolution with 1/1.8" 8MP image sensor
- Multi-TOPs AI engine
- All-weather IP66 weatherproofing
- Tamper-resistant IK04 design
- 3-axis manual adjustment for flexible mounting
- Built-in IR night vision up to 30 m (98 ft)
- Face recognition and license plate recognition
- Smart detections for people, vehicles, and animals
- Integrated microphone
- PoE power and networking via 10/100 MbE RJ45 port
- NDAA compliant
Technical Specifications
General
| Specification | Detail |
|---|---|
| Dimensions | 100 x 95 mm (3.9 x 3.7") |
| Weight | 550 g (1.2 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Weatherproof Rating | IP66 |
| Tamper Resistance | IK04 |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
Imaging & Video
| Specification | Detail |
|---|---|
| Resolution | 8MP 3864 x 2160 (16:9) |
| Max. Frame Rate | 30 FPS |
| Field of View | H: 109.9°, V: 56.7°, D: 134.1° |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Night Vision | IR night vision up to 30 m (98 ft) |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Audio | Microphone |
AI & Smart Functions
| Specification | Detail |
|---|---|
| AI Engine | Multi-TOPs AI engine |
| Smart Detections | People, vehicles, animals |
| Face Recognition | Yes |
| License Plate Recognition | Yes |
Networking & Power
| Specification | Detail |
|---|---|
| Networking Interface | 10/100 MbE RJ45 port |
| Power Method | PoE |
| Supported Voltage Range | 37–57V DC |
| Max. Power Consumption | 12.5W |
| Processor | Quad-core Arm Cortex-A53 based chip |
Optics
| Specification | Detail |
|---|---|
| Sensor | 1/1.8" 8MP |
| Lens | Fixed focal length |
Mounting Options
| Specification | Detail |
|---|---|
| Included Mounting | Ceiling, wall |
| Optional Mounting | Arm, pendant, junction box |
| Adjustment | 3-axis manual adjustment |
Controls & Hardware
| Specification | Detail |
|---|---|
| Button | (1) Factory-reset |
Cable & Jacket
| Specification | Detail |
|---|---|
| Cable Connector Type | RJ45 |
| Cable Diameter | 4.5 mm (0.2") |
| Cable Length | 30 cm (1 ft) |
| Jacket Material | Thermoplastic elastomer |
| Jacket Enclosure Dimensions | 20 x 70.6 mm (0.8 x 2.8") |
| Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
Environmental
| Specification | Detail |
|---|---|
| Ambient Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
