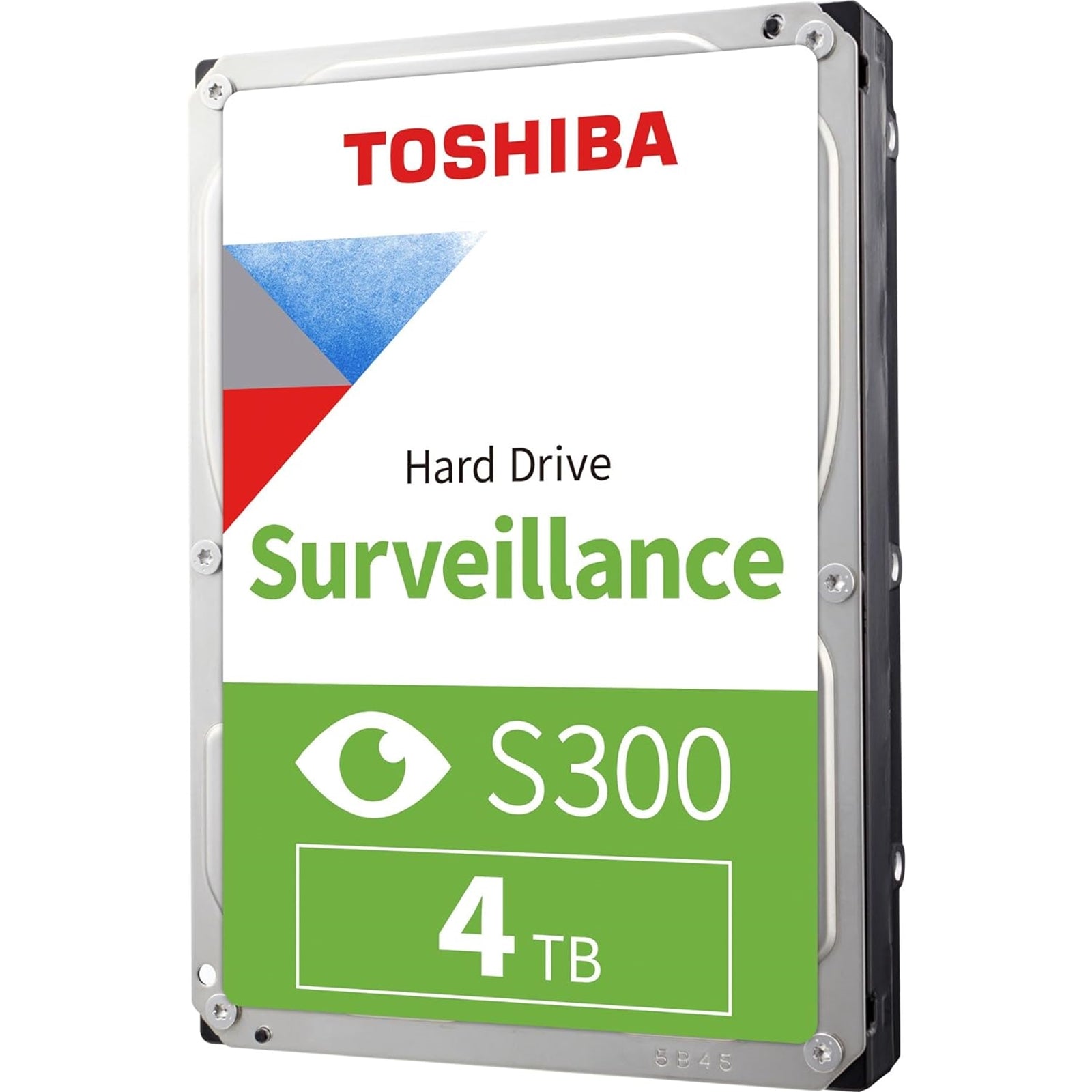

Toshiba 3.5" S300 Surveillance Hard Drive – Up to 6 TB
The Toshiba 3.5-inch S300 is engineered to meet demanding surveillance storage requirements. With support for up to 64 high‑resolution surveillance cameras and a capacity of up to 6 TB, it helps bring every scene into clear view.
Built with high-quality components and tested for 24/7 operation, the S300 delivers the reliability and performance needed for continuous security monitoring – even under harsh working conditions.
Key Features
Optimized for Surveillance Systems
Ideal for a wide range of surveillance recording devices, including:
- Surveillance Digital Video Recorders (sDVR)
- Surveillance Network Video Recorders (sNVR)
- Hybrid sDVR (analog and IP)
Relentless Reliability
Reliability starts with component quality and thorough testing. The S300:
- Uses optimized components to handle up to 64 video cameras simultaneously
- Undergoes rigorous testing for day‑in, day‑out performance
Attention to Detail
When every frame matters, the S300 is designed to record even the smallest detail:
- 24/7 reliability for continuous recording
- High performance to help ensure critical footage is captured and ready for analysis at any time
Designed and Tested for Compatibility
The S300 is built to integrate smoothly into your surveillance infrastructure:
- Supports up to 64 high‑resolution cameras for flexible scalability
- Compatible with DVR, NVR, video servers, and video management systems
- Suitable for round‑the‑clock surveillance applications
Smart Performance with Dynamic Cache Technology
Toshiba’s Dynamic Cache Technology enhances performance by:
- Optimizing read and write cycle cache allocation
- Using advanced buffer management and an on-board cache algorithm to deliver responsive operation
Integrated RV Sensors
In multi-bay systems, vibration can degrade performance. The S300 addresses this with:
- Multiple sensors that detect even slight shocks
- Built-in rotational vibration (RV) sensors to compensate for vibration and minimize “knock‑on” effects
- Advanced control and sensing technology to help maintain reliability in multi-drive surveillance systems
High Endurance, High Reliability
Designed to withstand harsh operating environments, the S300 features:
- High-endurance, high-performance components
- Optimized seek speed in high-temperature environments to support lower power consumption
- Automatic reduction of noise and vibration emissions
- Up to 1,000,000 hours MTTF (Mean Time to Failure)
- Up to 180 TB per year workload rating for dependable surveillance operation
Built to Deliver, Designed to Last
Backed by Toshiba’s 50 years of storage innovation, the S300 offers:
- High capacity with excellent performance
- The assurance of Toshiba’s extensive hard drive experience
- A 3-year limited warranty for added peace of mind
Specifications
| Specification | Detail |
|---|---|
| Form factor | 3.5" |
| Interface | SATA 6 Gbit/s |
| Number of cameras supported | 64 |
| Recording technology | SMR |
| RoHS compatible | Yes |
| Halogen free | Yes |
| Rotational speed | 5400 rpm |
| Max. data transfer speed (typ.) | 184 MB/s (sustained) |
| Buffer size | 256 MB |
| Average latency | 5.56 ms |
| MTTF | 1,000,000 hours |
| Unrecoverable error rate | 1 per 10^14 bits read |
| 24/7 operation | Yes |
| Load/Unload cycle | 600,000 |
| Limited warranty | 3 years |
| Supply voltage | 5 V DC ±5% / 12 V DC ±10% |
| Power consumption (operating) | 4.36 W (typical) |
| Power consumption (active idle) | 2.33 W (typical) |
| Temperature (operating) | 0 to 70 °C |
| Temperature (non-operating) | -40 to 70 °C |
The Toshiba S300 Surveillance Hard Drive is built to keep watch around the clock, providing the performance, endurance, and reliability your security systems demand.
