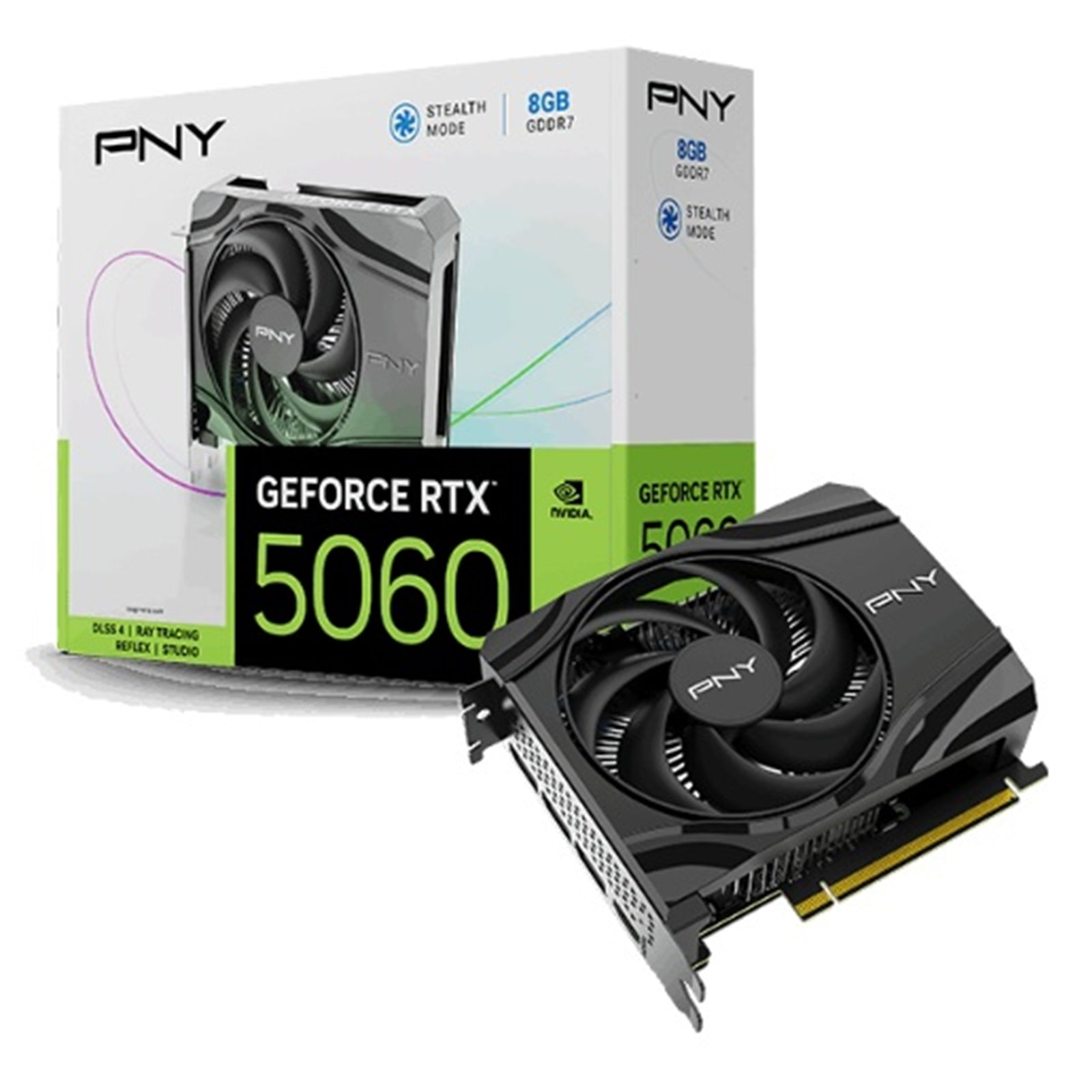

PNY GeForce RTX 5060 Single Fan Graphics Card
Experience powerful next-generation graphics performance with the PNY GeForce RTX 5060 Single Fan Graphics Card, built on the advanced Blackwell architecture and equipped with ultra-fast GDDR7 memory.
Key Features
- Blackwell architecture
- 3840 CUDA Cores
- Single fan cooling design
- 8GB GDDR7 memory
- PCI-Express 5.0 x8 interface
- Supports up to 4 displays
- Maximum digital resolution up to 7680 x 4320 @ 120Hz
Specifications
| Category | Details |
|---|---|
| Architecture | Blackwell |
| CUDA Cores | 3840 |
| Clock Speed | 2280 MHz |
| Boost Speed | 2497 MHz |
| Memory Speed | 28 Gbps |
| Memory Size | 8GB GDDR7 |
| Memory Interface | 128-bit |
| Memory Bandwidth | Up to 448 GB/sec |
| TDP | 145 W |
| NVLink | Not Supported |
| Outputs | DisplayPort 2.1b (x3), HDMI 2.1b |
| Multi-Screen Support | 4 |
| Maximum Resolution | 7680 x 4320 @ 120Hz (Digital) |
| Power Input | 8-pin |
| Bus Type | PCI-Express 5.0 x8 |
| Card Dimensions (mm) | 146.7 x 125 x 40 mm |
| Card Dimensions (inches) | 5.8" x 4.9" x 1.6" |
| Box Dimensions (mm) | 242 x 190 x 70 mm |
| Box Dimensions (inches) | 9.53" x 7.48" x 2.76" |
This PNY GeForce RTX 5060 Single Fan Graphics Card delivers modern performance in a compact form factor, ideal for systems where space and efficiency are priorities.
